Introducing BackZone 35 (250-1903-BZ35), Rostra’s latest addition to our comprehensive line of vehicle parking assistance systems. Designed around the durable components that comprise our BackZone 35 system, BackZone 35 expands the usefulness of that system by adding an extra 10 feet to the sensor extension harness and a more powerful control module. Key features of this system include the following:

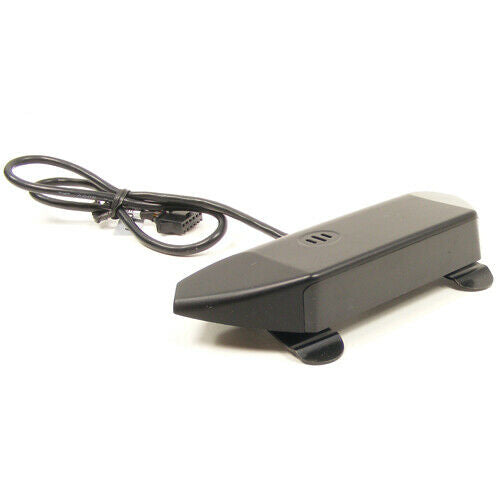

Smaller Audible/Visual Display
Compared to Rostra’s standard BackZone Plus and FrontZone parking assistance systems, the BackZone 35 includes a dashboard/visor mount display with a smaller overall footprint designed to more seamlessly blend into a vehicle’s interior.
35-Foot Truck Harness
BackZone 35 sensor-to-module wire harnessUltrasonic parking assistance systems typically require the use of harness extensions when being installed onto light or heavy-duty trucks. These extensions can introduce multiple points of failure and interference. That changes with BackZone 35. Each BackZone 35 system includes a weather-proof 35’ harness designed to connect the four bumper-mounted ultrasonic sensors to the BackZone control module in a single run.
BackZone 35 Control Module
BackZone 35 contorl module with advanced object detectionThe BackZone 35 control module is specific to this particular parking assistance system and includes an internal electronics redesign necessary to transmit interference-free signals from the bumper-mounted ultrasonic sensors along the 35-foot harness.
- Safer Parking Decisions - Make safer parking decisions by using a BackZone 35 automotive parking assist to alert you to obstacles closing in on your vehicle while parking.
- Ultrasonic Detection - BackZone Plus' advanced ultrasonic-based technology means the system offers consistency on targets of all densities with fewer false alarms.

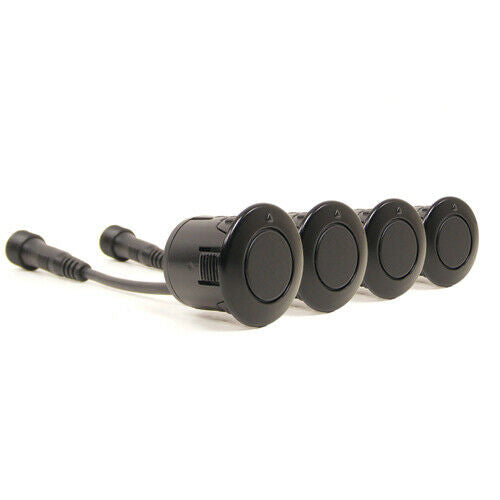

- Paintable Bumper Sensors - The flat black sensors included with each 250-1903-BZ35 BackZone 35 kit can be painted to match the factory fit and finish of your car!
- Audible Alarm - The audible alarm included in each BackZone Plus automotive parking assist kit provides a unique way of alerting drivers to nearby unseen obstacles.
BackZone 35 Included Components
- Full-color retail packaging with space of barcode labels.
- Glossy installation/owner’s manual with high-resolution images.
- Drilling template for accurately aligning sensors to bumper.
- Four flush-mount ultrasonic sensors with paintable bezel.
- Four rubber insulator sensor sleeves for use on steel bumpers.
- Four under-bumper mounts for mounting beneath bumpers.
- Stainless steel under-bumper mounting hardware.
- 35-foot sensor to control module extension harness.
- BackZone 35 control module with advanced firmware.
- Dashboard/Visor audio-visual display *.
- Standalone buzzer (for audio alerts only) **.
- 19-foot module-to-display extension harness.
- 21.5 mm hole saw for use with sensor-only installation.
- 24.5 mm hole saw for use with rubber insulator installation.
- Two-wire harness for making power and ground connections.
- Two quick splice connectors for use on power and ground wires.
- Cable ties for securing extension harness to vehicle body.
- Four 6-degree angled sensor bezels for angled bumper covers.
- Four 12-degree angled sensor bezels for angled bumper covers.
- 3M VHB mounting tape to secure control module in place.
- 3M VHB mounting tape for securing dashboard display in place.
