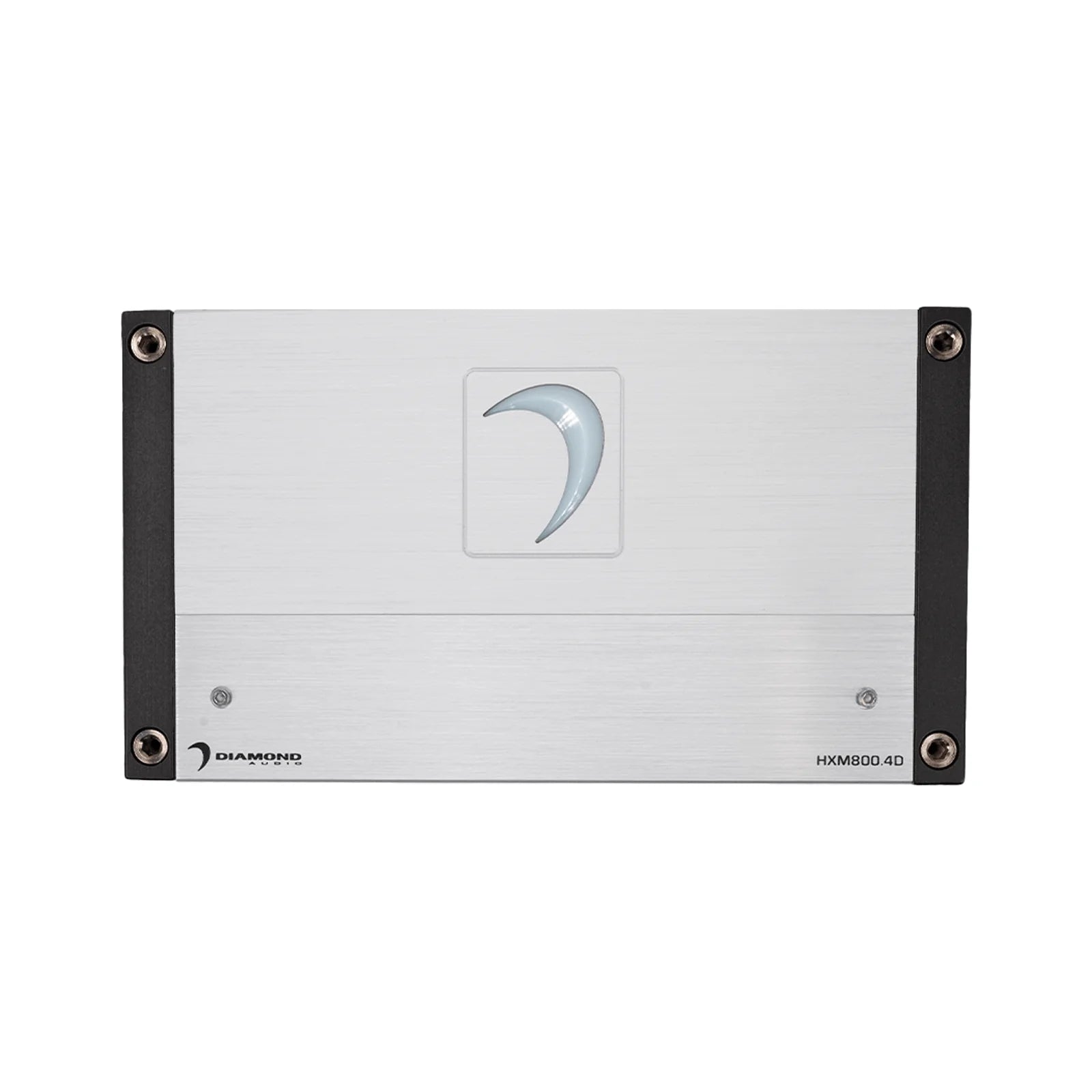

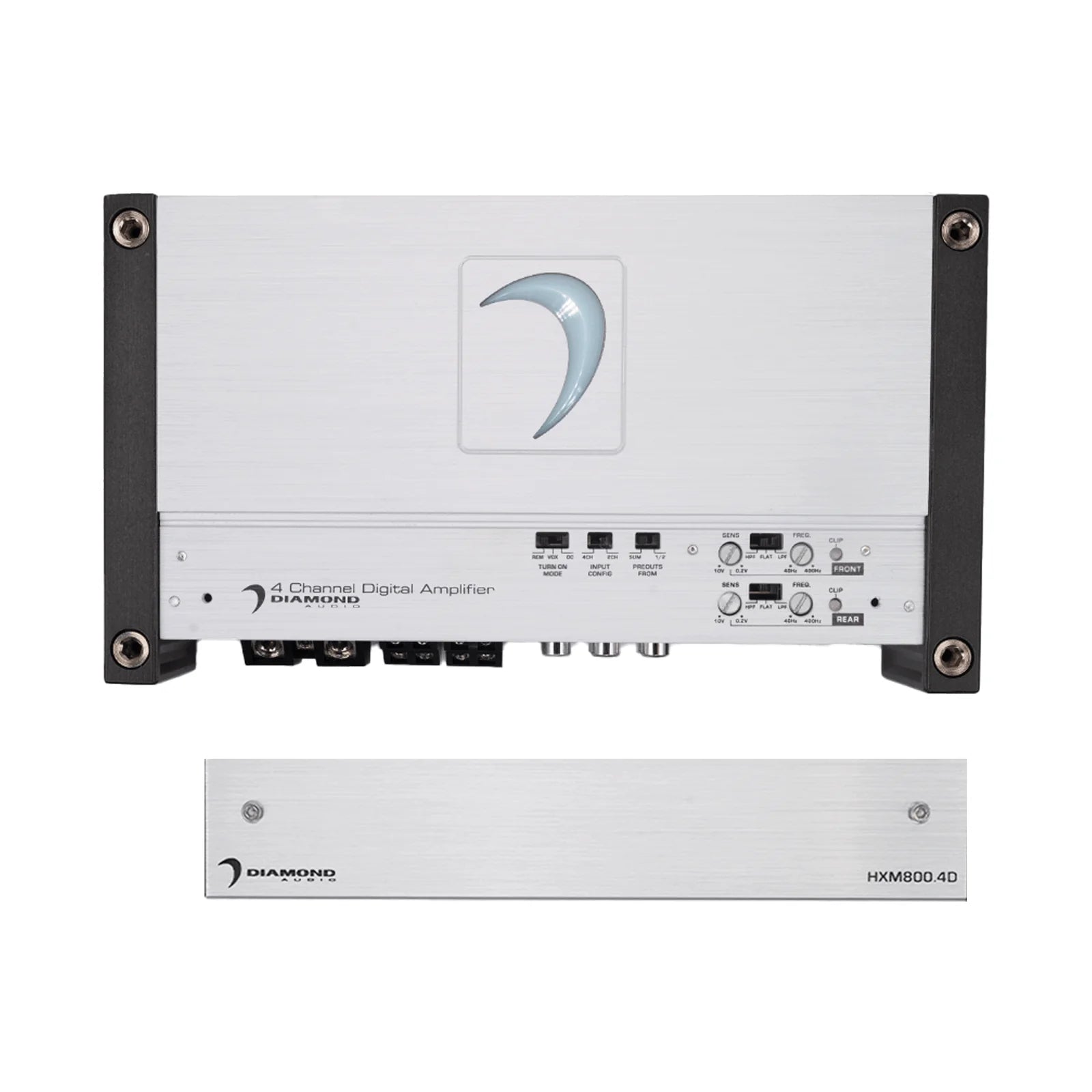

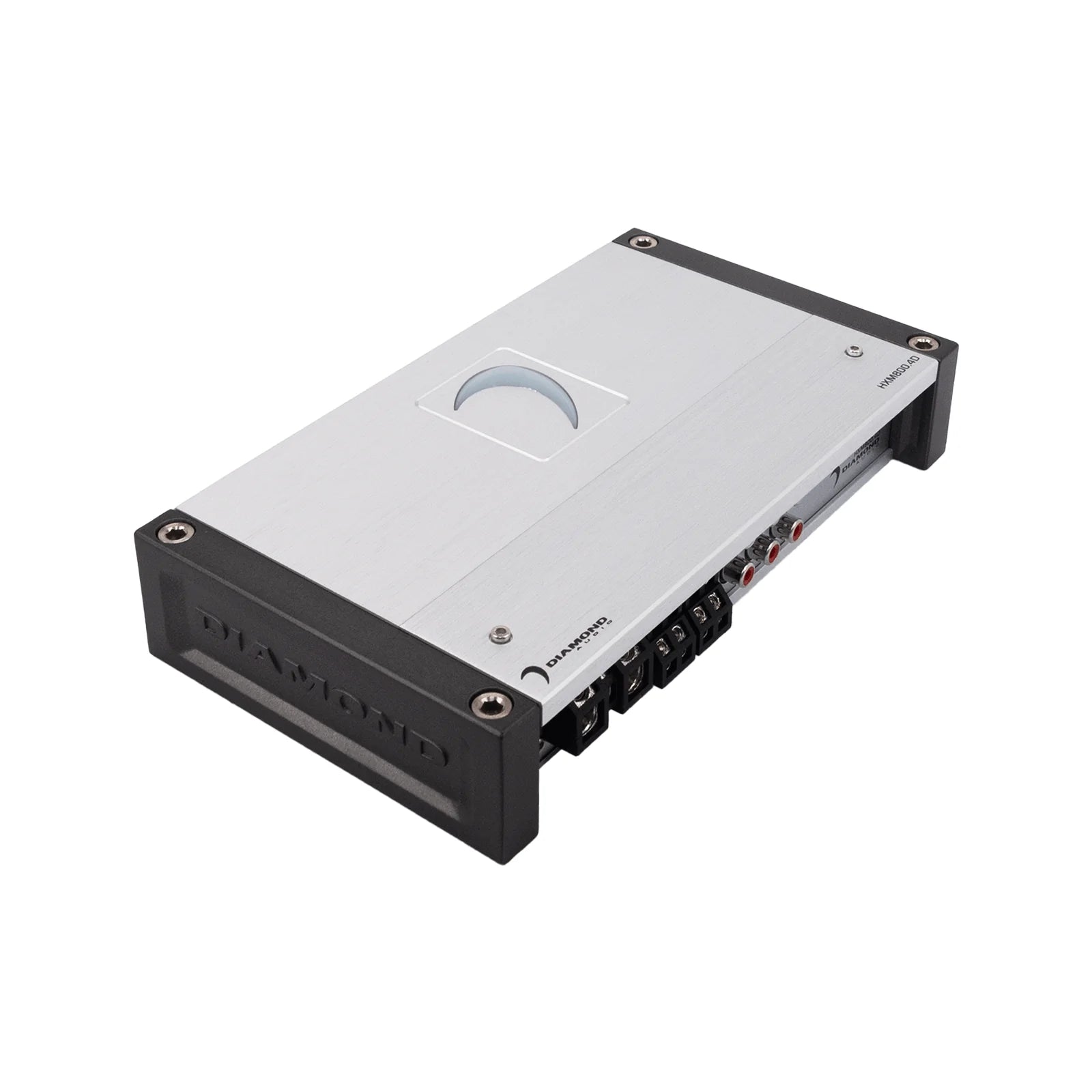

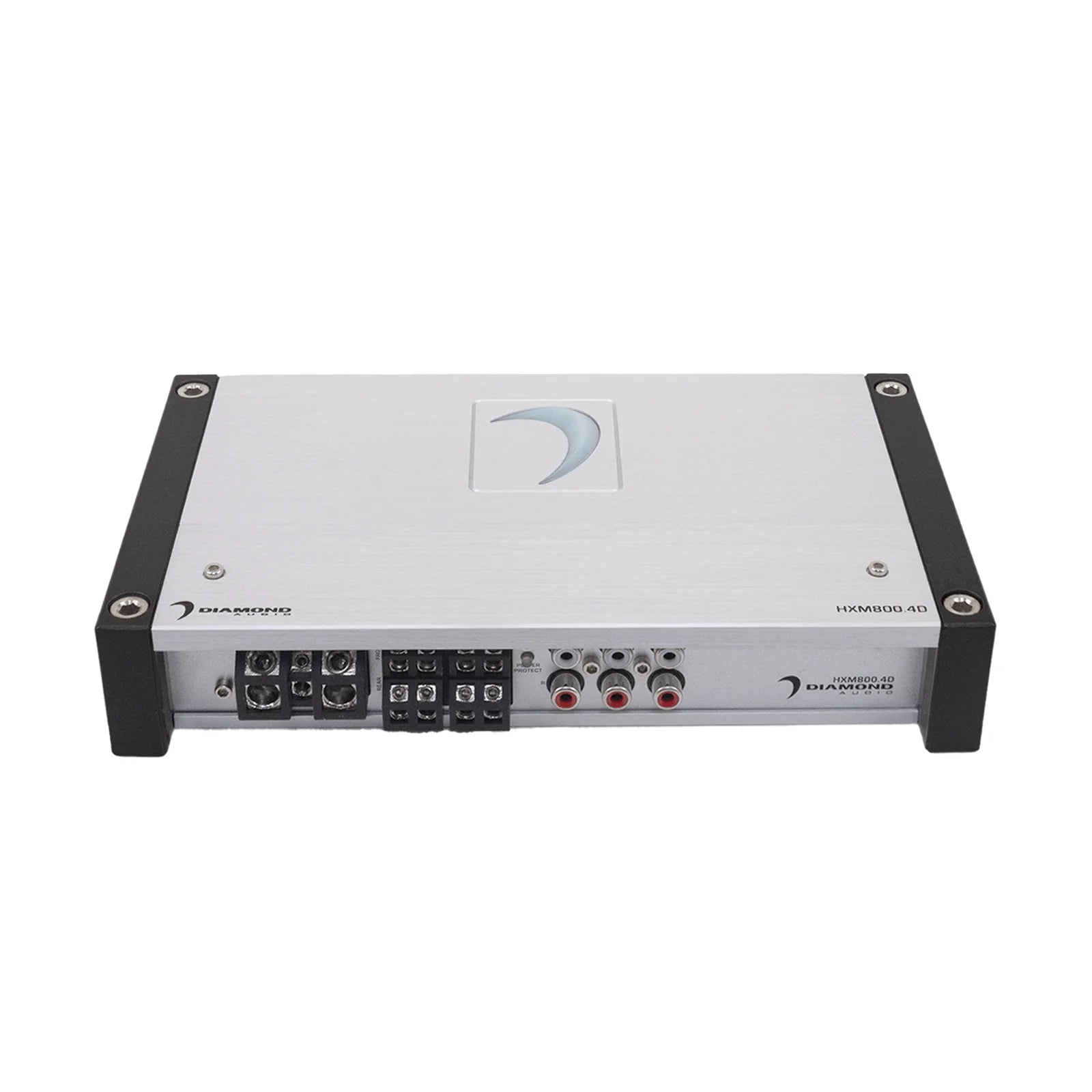

Diamond Audio HXM800.4D Motorsport Series 4-Channel Class-D Amplifier
Transform the audio experience in your marine vessel, UTV, or motorcycle with the Diamond Audio HXM800.4D, a robust 4-channel amplifier from their premium MOTORSPORT Series. Engineered to deliver exceptional, audiophile-grade sound quality while enduring the toughest outdoor elements, this ultra-compact, full-range Class D amplifier generates an impressive 800 watts of total RMS power. Pushing 200 watts per channel at 2 ohms, 120 watts per channel at 4 ohms, or bridgeable to a massive 400 watts x 2 at 4 ohms, it provides incredible versatility. Whether you are driving four high-performance wake tower speakers, a powerful array of motorcycle fairing components, or bridging it to run a pair of subwoofers, the HXM800.4D delivers pristine, dynamic sound in any mobile audio application.
Designed for maximum durability and thermal efficiency, the HXM800.4D features a water-resistant, conformal-coated multi-layer glass epoxy circuit board that prevents damage and corrosion from moisture, dust, and salt. Under the hood, it utilizes advanced full-range digital Class D technology paired with a DirectFET power MOSFET output stage for extreme efficiency and low heat generation, all safely housed within an anodized extruded aluminum heat sink. It guarantees noise-free operation via balanced differential inputs, rejecting the engine hum and electrical interference commonly found in powersports applications. With precise top-mounted controls, output clip indicators for perfect tuning, and a selectable 3-option auto turn-on mode, integrating this powerhouse into your outdoor vehicle is incredibly straightforward.
Key Features & Specifications
Transform the audio experience in your marine vessel, UTV, or motorcycle with the Diamond Audio HXM800.4D, a robust 4-channel amplifier from their premium MOTORSPORT Series. Engineered to deliver exceptional, audiophile-grade sound quality while enduring the toughest outdoor elements, this ultra-compact, full-range Class D amplifier generates an impressive 800 watts of total RMS power. Pushing 200 watts per channel at 2 ohms, 120 watts per channel at 4 ohms, or bridgeable to a massive 400 watts x 2 at 4 ohms, it provides incredible versatility. Whether you are driving four high-performance wake tower speakers, a powerful array of motorcycle fairing components, or bridging it to run a pair of subwoofers, the HXM800.4D delivers pristine, dynamic sound in any mobile audio application.
Designed for maximum durability and thermal efficiency, the HXM800.4D features a water-resistant, conformal-coated multi-layer glass epoxy circuit board that prevents damage and corrosion from moisture, dust, and salt. Under the hood, it utilizes advanced full-range digital Class D technology paired with a DirectFET power MOSFET output stage for extreme efficiency and low heat generation, all safely housed within an anodized extruded aluminum heat sink. It guarantees noise-free operation via balanced differential inputs, rejecting the engine hum and electrical interference commonly found in powersports applications. With precise top-mounted controls, output clip indicators for perfect tuning, and a selectable 3-option auto turn-on mode, integrating this powerhouse into your outdoor vehicle is incredibly straightforward.
Key Features & Specifications
- RMS Power Output: Delivers 200W x 4 channels @ 2-Ohms, 120W x 4 channels @ 4-Ohms, or 400W x 2 channels bridged @ 4-Ohms.
- Motorsport & Marine Ready: Features a multi-layer, glass epoxy circuit board with a conformal coating (water-resistant) designed for long-lasting reliability in marine and off-road applications.
- Class D Efficiency: Utilizes full-range digital Class D technology and a DirectFET power MOSFET output stage to generate massive, clean power within a highly compact footprint.
- Noise Rejection: Advanced balanced differential inputs ensure crystal-clear, noise-free audio reproduction, eliminating unwanted engine whine or electrical interference.
- Audio Tuning: Equipped with fully variable 12dB per octave High-Pass and Low-Pass crossovers (40Hz - 400Hz), integrated output clip indicators, and top-mounted controls for precise, distortion-free system setup.
- Smart Integration: A selectable 3-option Auto Turn-On Mode simplifies installation and allows the amplifier to work seamlessly with both factory (OEM) and aftermarket head units.
- Compact Footprint: Measuring just 9.3" L x 5.27" W x 1.75" H, it is ideally sized for tight installations inside motorcycle fairings, under UTV seats, or in cramped boat compartments.
- Thermal Management: The anodized extruded aluminum heat sink provides superior thermal performance, ensuring the amplifier runs cool even under heavy, continuous demand.
