(2) Orion XTR12SWD4 12" XTR Shallow Series 4-Ohm DVC Shallow-Mount Car Subwoofers (1 Pair)

$299.90

Hurry, there are only 5 item(s) left!
SKU: XTR12SWD4 (TWO)Categories: Car Audio, Orion, Subwoofers
Description

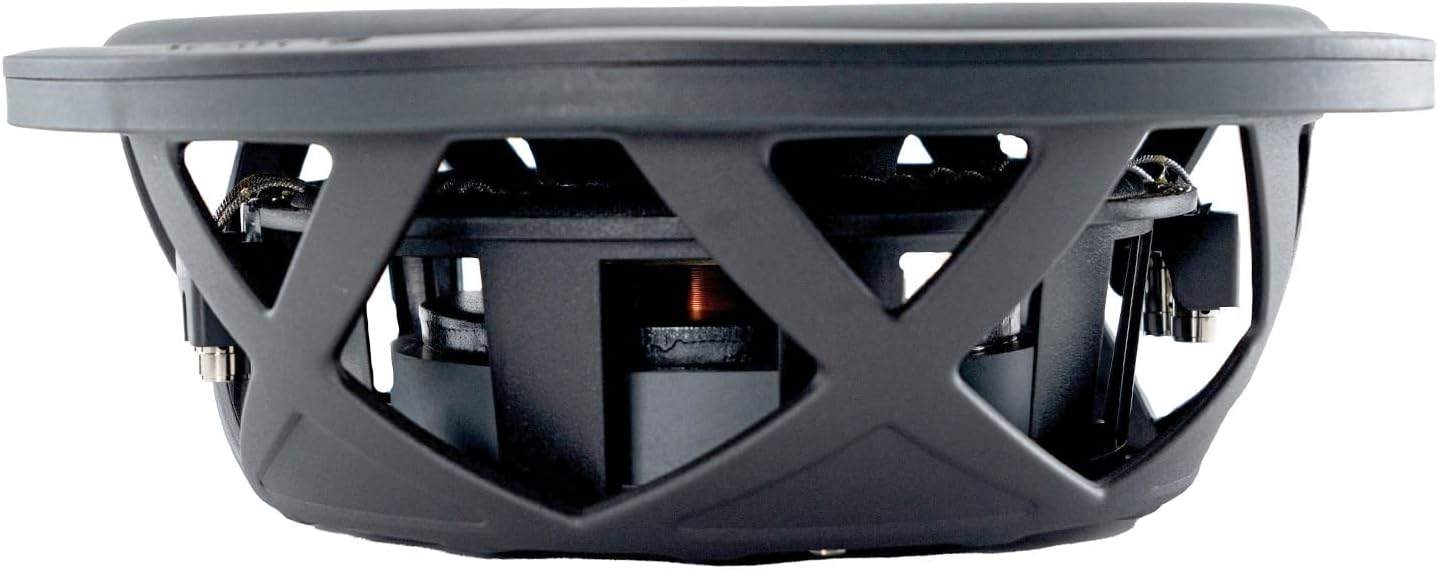

(2) Orion XTR12SWD4 12" Shallow Mount Subwoofers – 4000W Peak / 1000W RMS (Per Pair) – Dual 4Ω / NBR Surround

Designed for space-conscious installs that still demand serious low-end, the Orion XTR12SWD4 shallow-mount subwoofer delivers reliable bass performance. Each 12″ driver features dual 4-ohm copper-wound voice coils, a rigid UV-coated paper/fiber cone, and a durable NBR surround for long-lasting output. A stamped steel basket reduces resonance, ensuring clarity in compact enclosures.

Key Features
  • Dual 4 Ohm Voice Coils: 3" copper-wound coils for versatile wiring.
  • UV-Coated Paper/Fiber Cone: Increases rigidity for accurate bass reproduction.
  • NBR Rubber Surround: Allows wide cone excursion with durability.
  • Stamped Steel Basket: Reinforces structure and minimizes vibration.
  • Nickel-Plated Push Terminals: Provide secure and efficient connections.
  • Shallow Mount Design: Fits tight spaces without sacrificing bass output.
Specifications
  • Subwoofer Size: 12"
  • Voice Coil: Dual 4-ohm, 3"
  • Power Handling (Peak): 4000 Watts Per Pair / 2000 Watts Each
  • Power Handling (RMS): 1000 Watts Per Pair / 500 Watts Each
  • Sensitivity: 85 dB
  • Frequency Response: 28 Hz – 300 Hz
  • Magnet: Ceramic
  • Cone Material: UV-Coated Paper / Fiber Blend
  • Surround Material: NBR Rubber
  • Dust Cap: Polypropylene
  • Mounting Depth: 91mm / 3.58"
  • Cutout Diameter: 280mm / 11.02"
  • Overall Diameter: 324mm / 12.76"
  • Total Combined Weight: ~32 lb (pair)
