Description

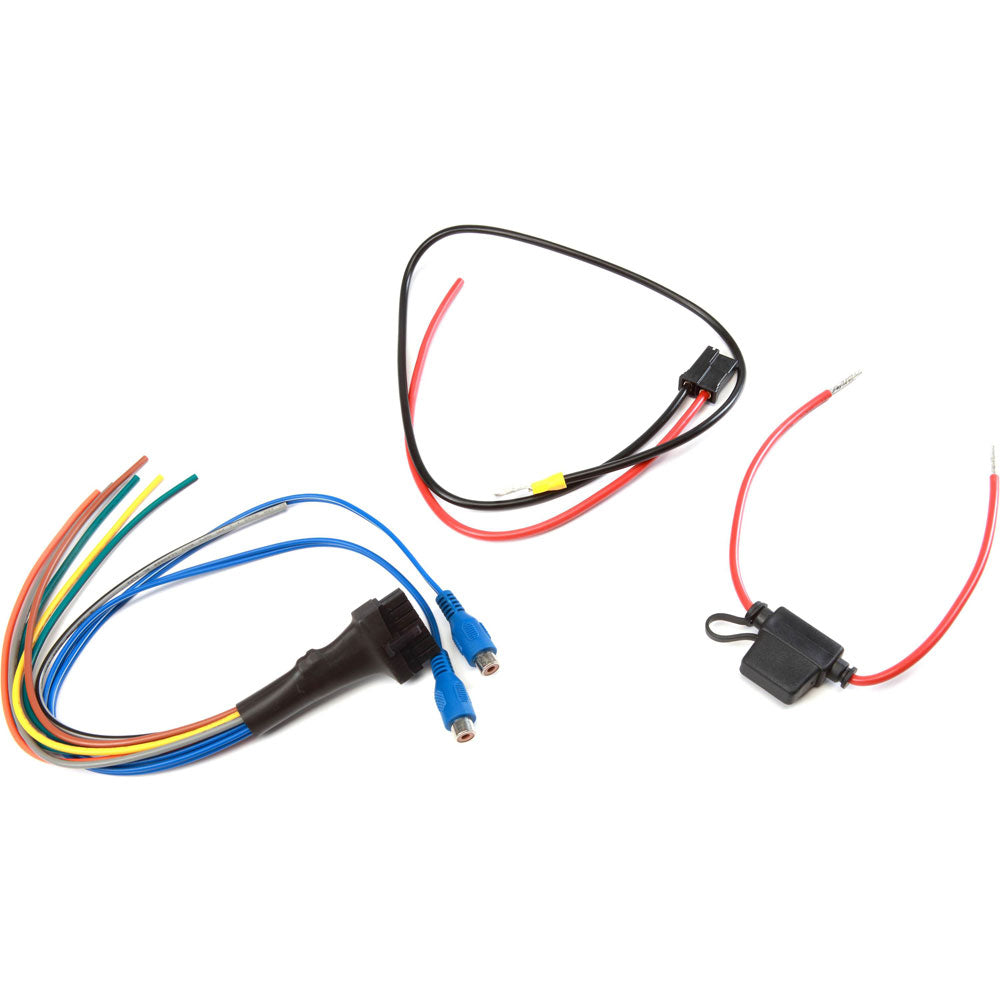

The Bazooka BTA-250D/AWK is a replacement wiring kit for Bazooka BTA6250D, BTA8250D, BTA1025D, MBTA8250D, and MBTA10250D powered bass tubes. Its main components include a 14-pin Input Harness, a 2-pin Power/Ground harness, and an in-line fuse holder with installed 30A ATC fuse on a 12" section of 12 ga. power wire.
- Input Harness: The 14-pin Input Harness includes the following wires:
- RCAs: 2 RCA input jacks are used for low-level signal input.
- Orange: Remote input.
- Green: High-level input (+).
- Green/Black: High-level input (-).
- Gray: High-level input (+).
- Gray/Black: High-level input (-).
- Brown: High-level output (+).
- Yellow: High-level output (-).
- Power/Ground Harness:
- Power: 12" of 12 ga. power wire for extending to the battery positive terminal.
- Ground: 24" of 12 ga. ground wire terminated in a ring-terminal.
