Description

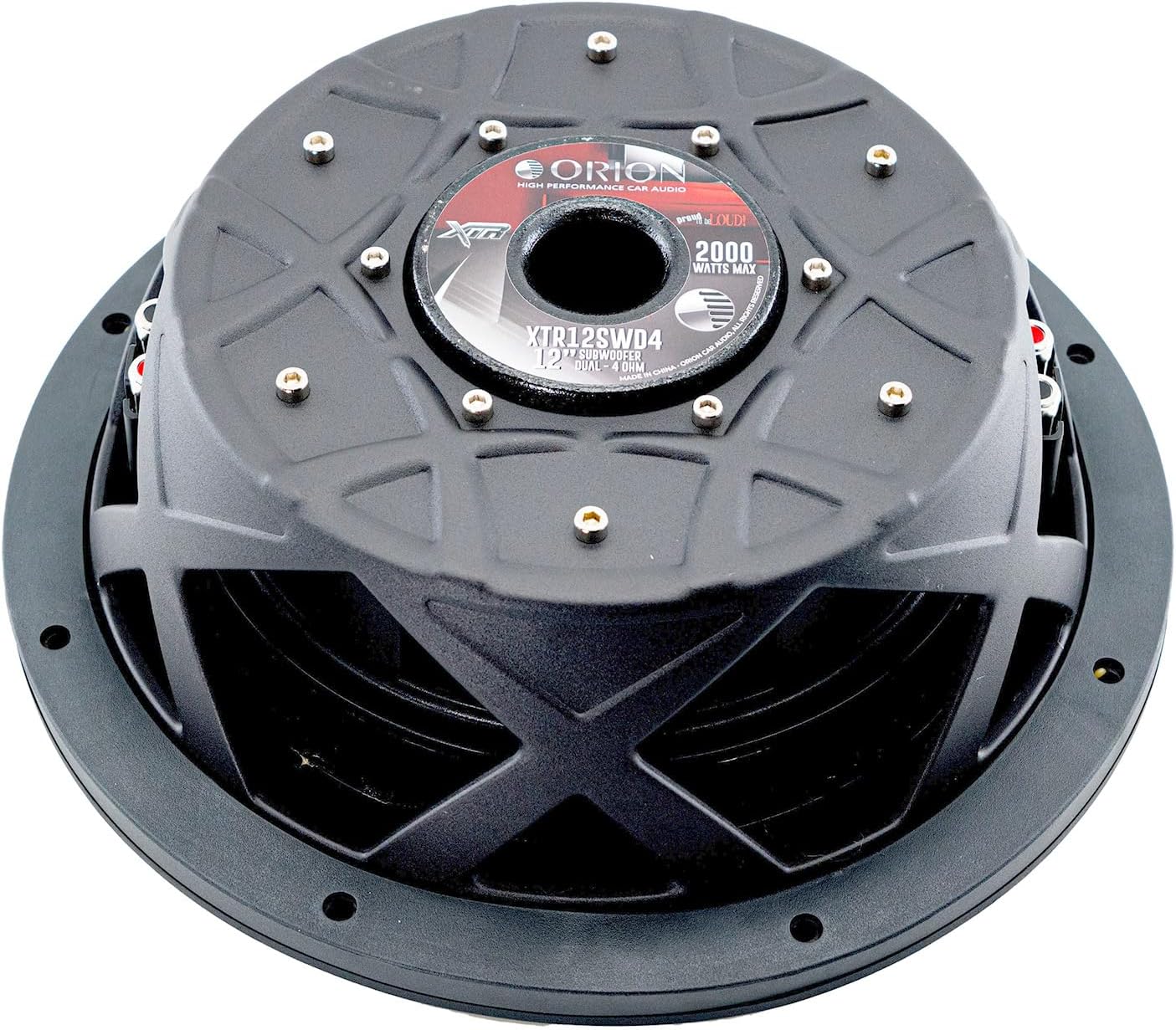

Orion XTR12SWD4 12" Shallow Mount Subwoofer – 2000 W Peak / 500 W RMS – Dual 4 Ω / NBR Surround
Ideal for low-depth installs, the Orion XTR12SWD4 delivers clean, powerful bass from a compact shallow-mount 12" design. Built for performance, its dual 4-ohm copper-wound voice coils pair with a rigid UV-coated paper/fiber cone and a durable NBR rubber surround. A heavy-gauge stamped steel basket reinforces structure while minimizing distortion. Perfect for trunks, under seats, or custom enclosures where space is premium.
Key Features
Ideal for low-depth installs, the Orion XTR12SWD4 delivers clean, powerful bass from a compact shallow-mount 12" design. Built for performance, its dual 4-ohm copper-wound voice coils pair with a rigid UV-coated paper/fiber cone and a durable NBR rubber surround. A heavy-gauge stamped steel basket reinforces structure while minimizing distortion. Perfect for trunks, under seats, or custom enclosures where space is premium.
Key Features
- Dual 4 Ohm Voice Coils: 3" copper-wound coils offer flexible wiring options and lasting reliability.

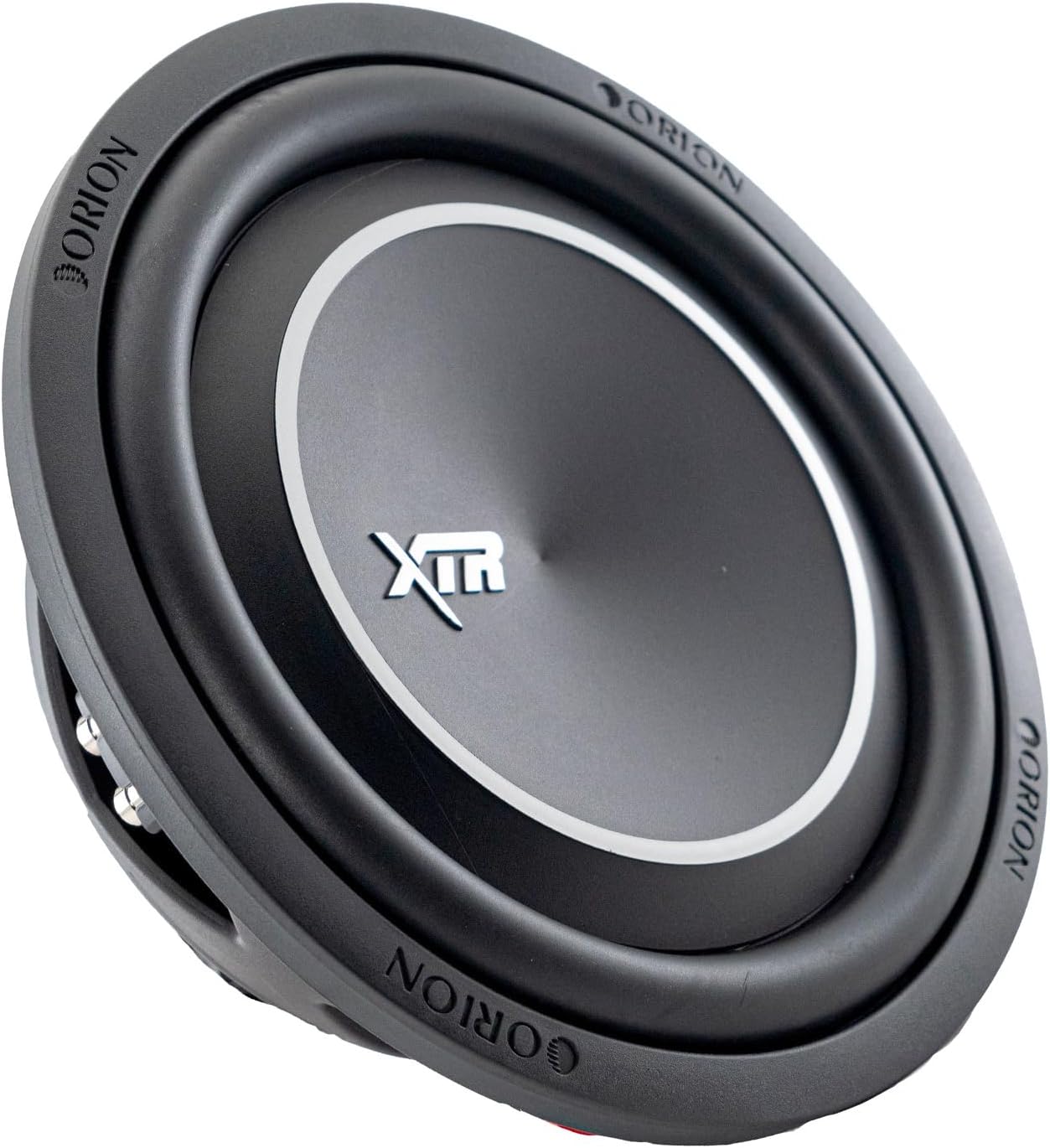

- UV-Coated Paper/Fiber Cone: Enhanced rigidity for precise bass reproduction.
- NBR Rubber Surround: Supports high cone excursion with long-term durability.
- Stamped Steel Basket: Rigid frame construction reduces vibration and distortion.
- Nickel-Plated Push Terminals: Secure, user-friendly connections.

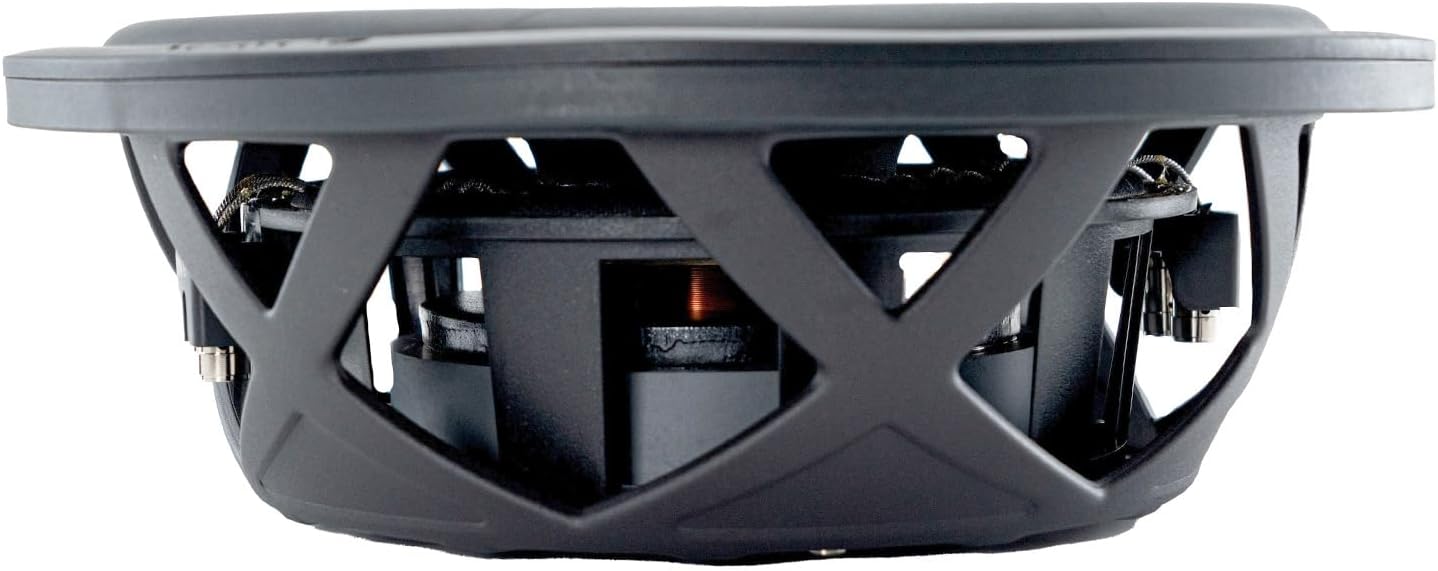

- Shallow Mount Design: Built for tight spaces without sacrificing output.
- Subwoofer Size: 12"
- Voice Coil: Dual 4 Ω
- Power Handling (Peak): 2000 W
- Power Handling (RMS): 500 W
- Sensitivity: 85 dB
- Frequency Response: 28 Hz – 300 Hz
- Magnet: Ceramic
- Cone Material: UV-Coated Paper/Fiber Blend
- Surround Material: NBR Rubber
- Dust Cap: Polypropylene
- Mounting Depth: 91 mm / 3.58"
- Cutout Diameter: 280 mm / 11.02"
- Overall Diameter: 324 mm / 12.76"
