Description

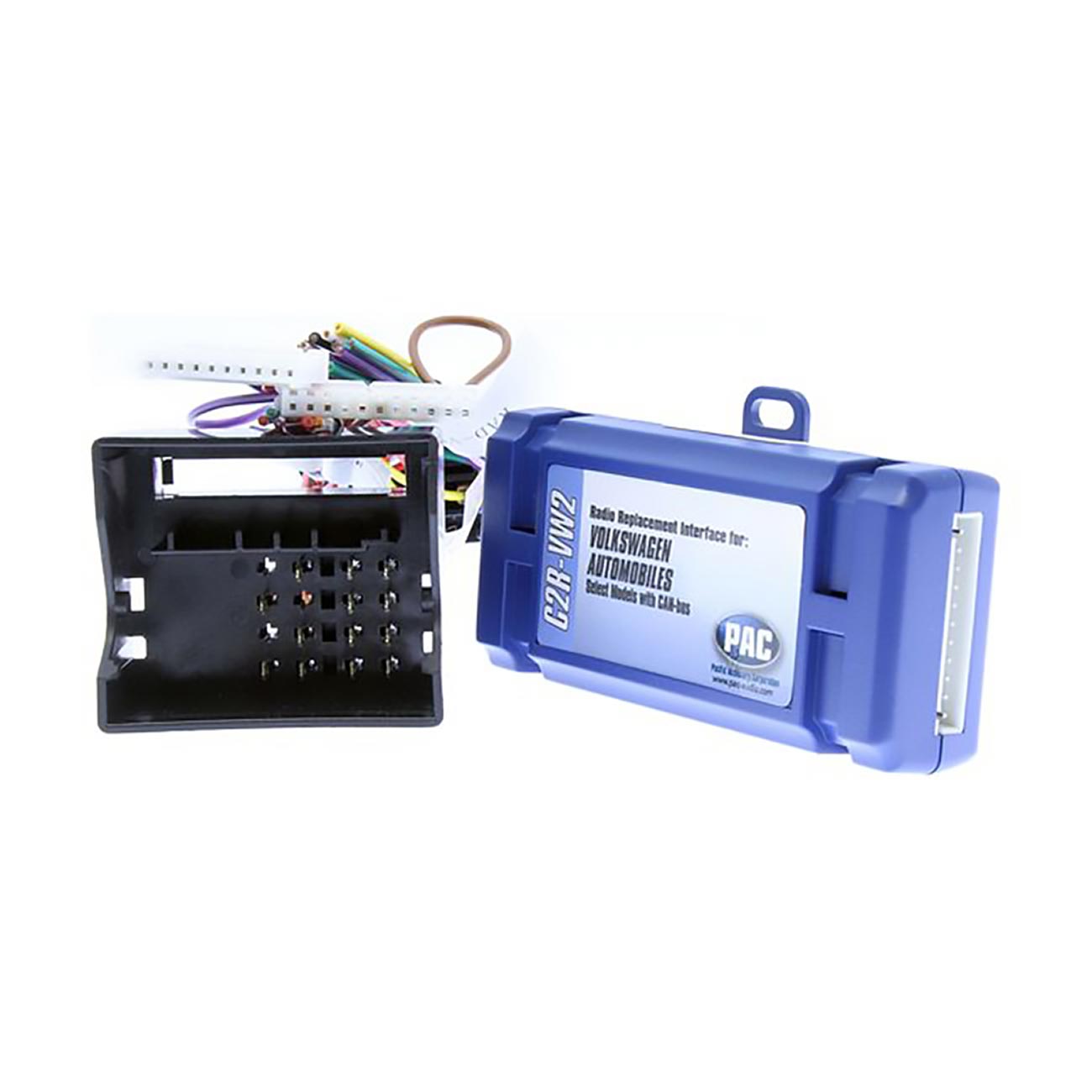

- Provides navigation trigger wires and timed accessory output for replacing the factory radio and retains the factory-installed amplified audio system. Use a steering wheel interface module to retain the function of select factory controls (Please see the compatibility notes section for further details).
- Provides CAN-based navigation outputs
- Retains safety warning chimes
- Retains factory-installed amplifier
- Direct plug-in for SWI module to retain steering wheel controls
- 12V ACC and illumination outputs
- Compatibility:
- 2011 Jetta: Does not currently provide a reverse output trigger
- 2010+ Vehicles: The C2R-VW2 does not retain the digital amplifier in Dynaudio systems
- 2012+ Vehicles: The C2R-VW2 does not retain the digital amplifier in Fender systems
- 2002-2005 Vehicles: In these year vehicles the C2R-VW2 does not provide a Reverse output trigger. This signal is unavailable on the data bus. You must be replacing a factory Double-DIN radio. If the vehicle came equipped with a Single-DIN radio, the C2R-VW2 is not compatible.
- 2004-2007 Touareg: Does not retain digital audio amplified system seen when the vehicles is equipped with factory navigation radio
- Steering Wheel Control Notes:
- We strongly recommend that vehicles equipped with SWC use the RP4-VW11
- 2002-2005 vehicles (excludes Touareg): Can only program volume up & down.
- 2006-2010 vehicles with Eight button SWC (excludes Touareg)
- Can program volume up & down, phone button and star button without effecting Multi-Function Display (MFD).
- Arrow up & down can be programmed but will control MFD.
- 2009-2010 vehicles with 12 button SWC (excludes Touareg)
- Can program left hand side of steering wheel volume up & down, track left & right, phone and mute buttons without effecting MFD.
- Arrow up & down on right side can be programmed but will control MFD.
- 2004-2010 Touareg: Can only program volume up & down
