Description

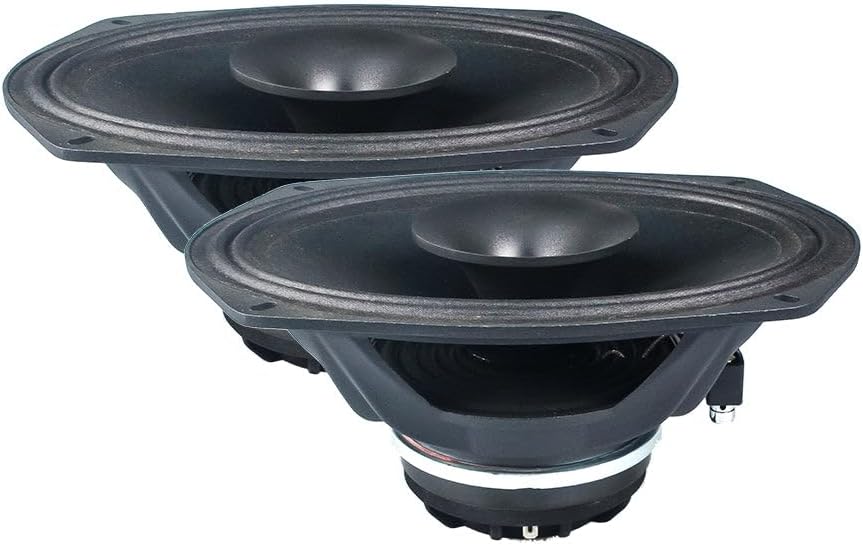

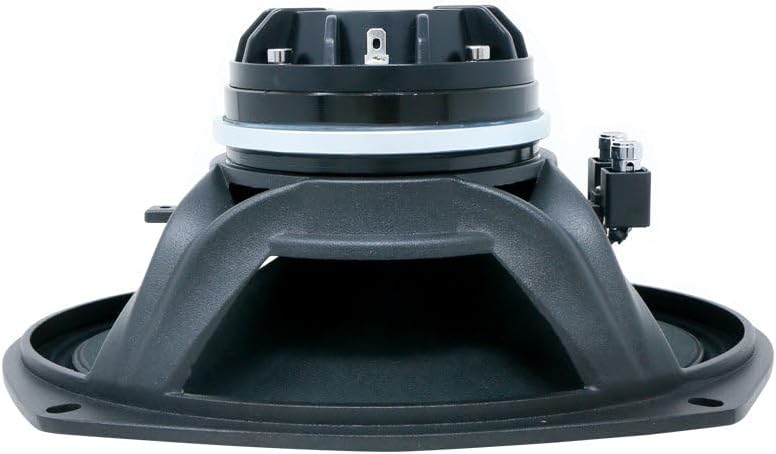

Diamond Audio MP694 – 6″ × 9″ Full-Range Coaxial Horn Speaker – 150 W RMS / 300 W Peak, 4 Ω
A high-sensitivity, motor-sports grade 6×9″ coaxial speaker featuring a horn-style tweeter with replaceable diaphragm—ideal for motorcycles, marine, and power-hungry audio builds. Rugged components and heat-dissipating design make it both powerful and dependable.
A high-sensitivity, motor-sports grade 6×9″ coaxial speaker featuring a horn-style tweeter with replaceable diaphragm—ideal for motorcycles, marine, and power-hungry audio builds. Rugged components and heat-dissipating design make it both powerful and dependable.
- Impedance: 4 Ω (woofer); 8 Ω (horn tweeter)
- Power Handling: 150 W RMS • 300 W Peak
- Sensitivity: 101 dB @ 1 W/1 m
- Frequency Response: 80 Hz – 18 kHz
- Voice Coils: 1.5″ high-temp coil (woofer); 1.0″ coil (tweeter)
- 12 dB 2nd-order crossover
- Mounting Depth: 3.99″ (101.3 mm); Total Depth: 4.26″ (108.3 mm)
- Dimensions: 9.33″ × 6.57″; Cutout: 8.86″ × 5.98″
- Ferrite-strontium magnet, cast-aluminum basket, advanced heat sink
- Weather-resistant cone; easily serviceable tweeter diaphragm
