Sold out
Description

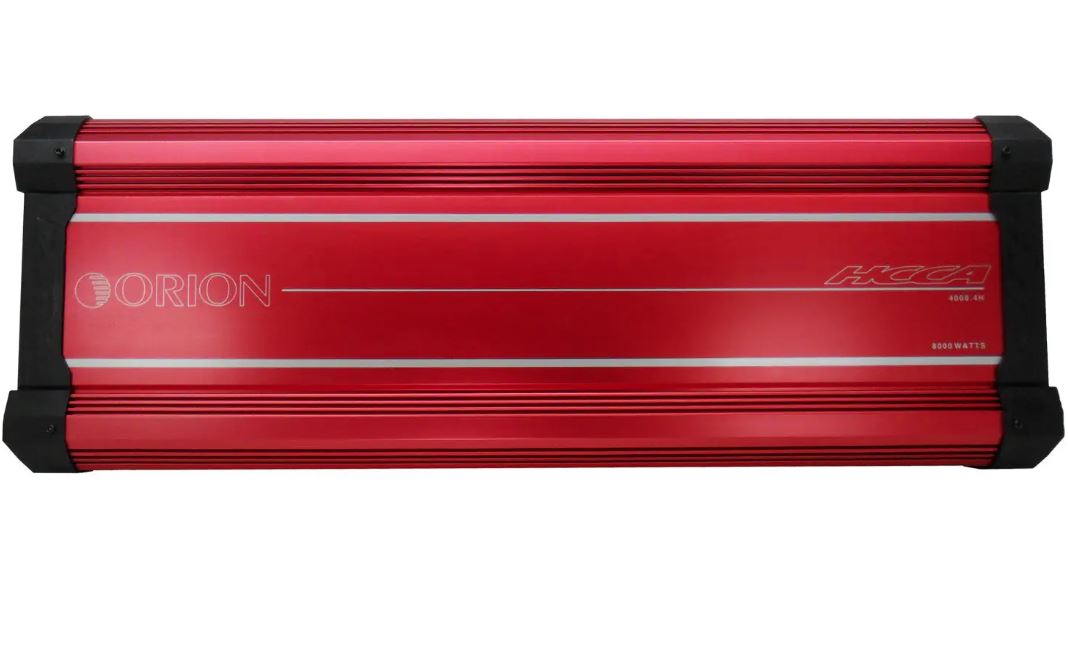

Orion HCCA4000.4H – 4‑Channel Class‑H Amplifier | 4,000 W RMS Total
A high-current reference amplifier engineered for top-tier SPL and precision. With full MOSFET power supplies, tri-mode flexibility, variable crossover, bass boost, and rugged Class‑H efficiency, it’s built for serious car audio systems and competitive installs.
A high-current reference amplifier engineered for top-tier SPL and precision. With full MOSFET power supplies, tri-mode flexibility, variable crossover, bass boost, and rugged Class‑H efficiency, it’s built for serious car audio systems and competitive installs.
- RMS Power Output: 4×600 W @ 4 Ω stereo • 4×1,000 W @ 2 Ω stereo • 2×2,000 W bridged @ 4 Ω
- Total RMS Power: 4,000 W (at 12.6 V); Max Music Power: up to 8,000–9,000 W
- Frequency Range: 10 Hz – 35 kHz (±1 dB); extended linear bandwidth to 65 kHz (±3 dB)
- Adjustable high-pass / low-pass (40 Hz–1.25 kHz & 40–300 Hz), 0–18 dB Bass Boost, phase shift control
- Class‑H with MOSFET power supply, ESP2 soft start
- Protection: thermal, DC offset, short, under/over-voltage; LED indicators

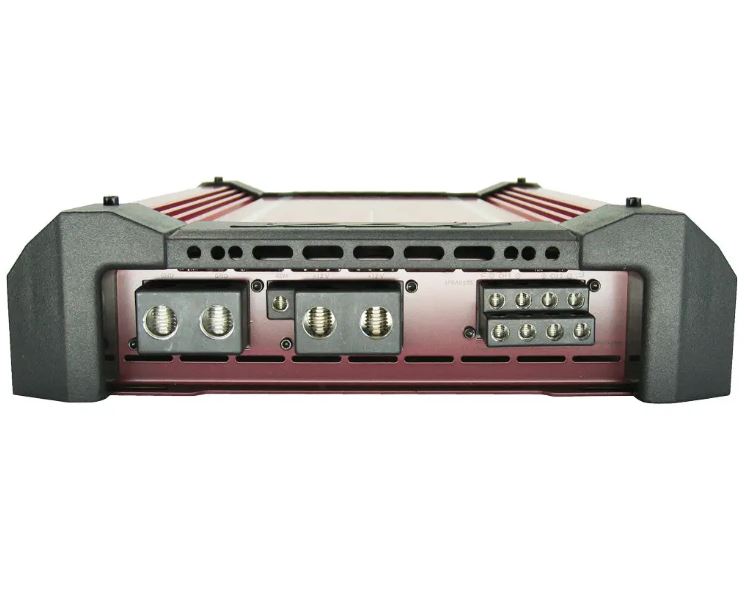

- Remote gain control; balanced input; all heavy-gauge terminals
- Dimensions: 27.95″ × 11.89″ × 3.15″; rugged die-cast chassis w/ illuminated badge
