Description

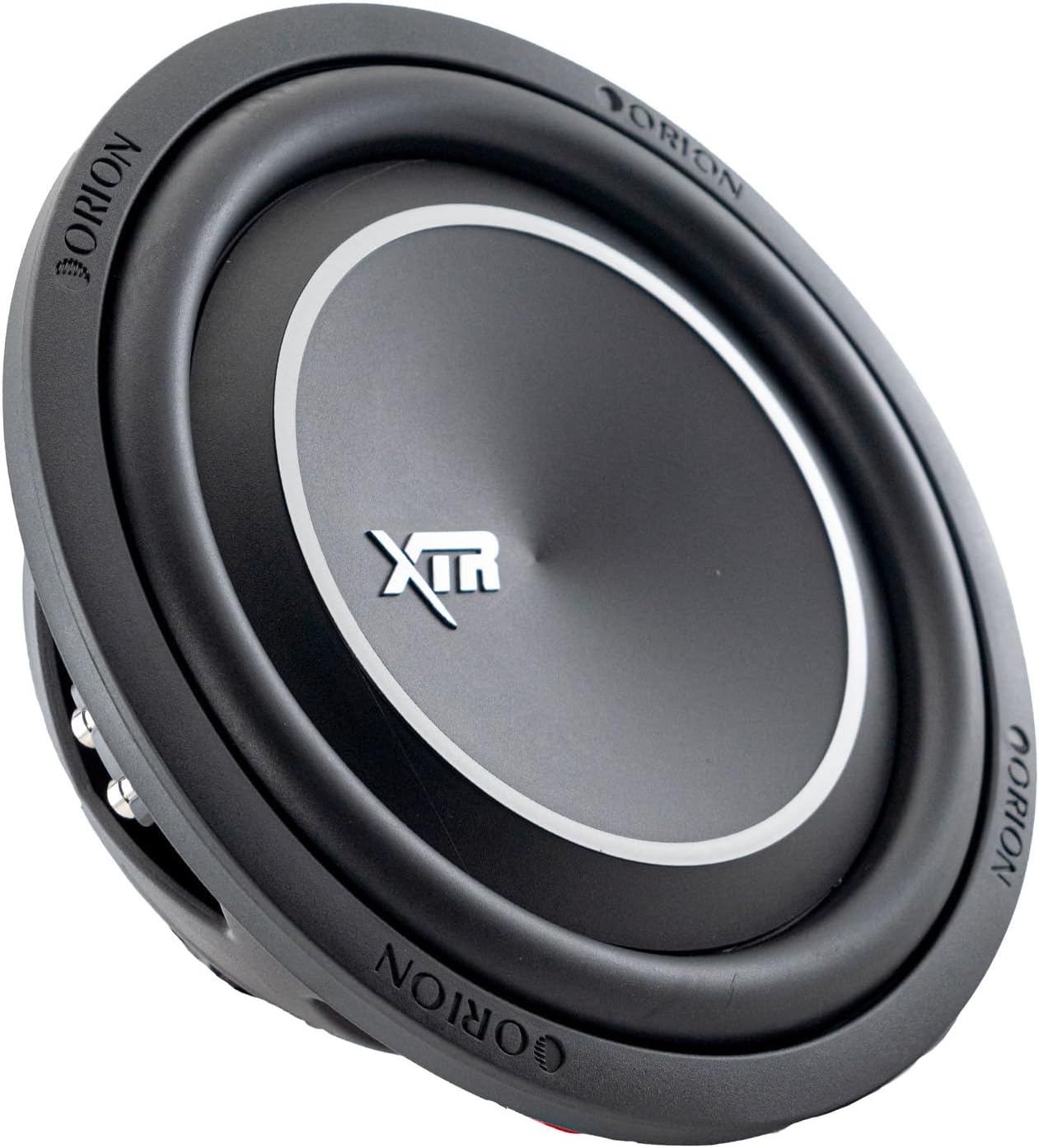

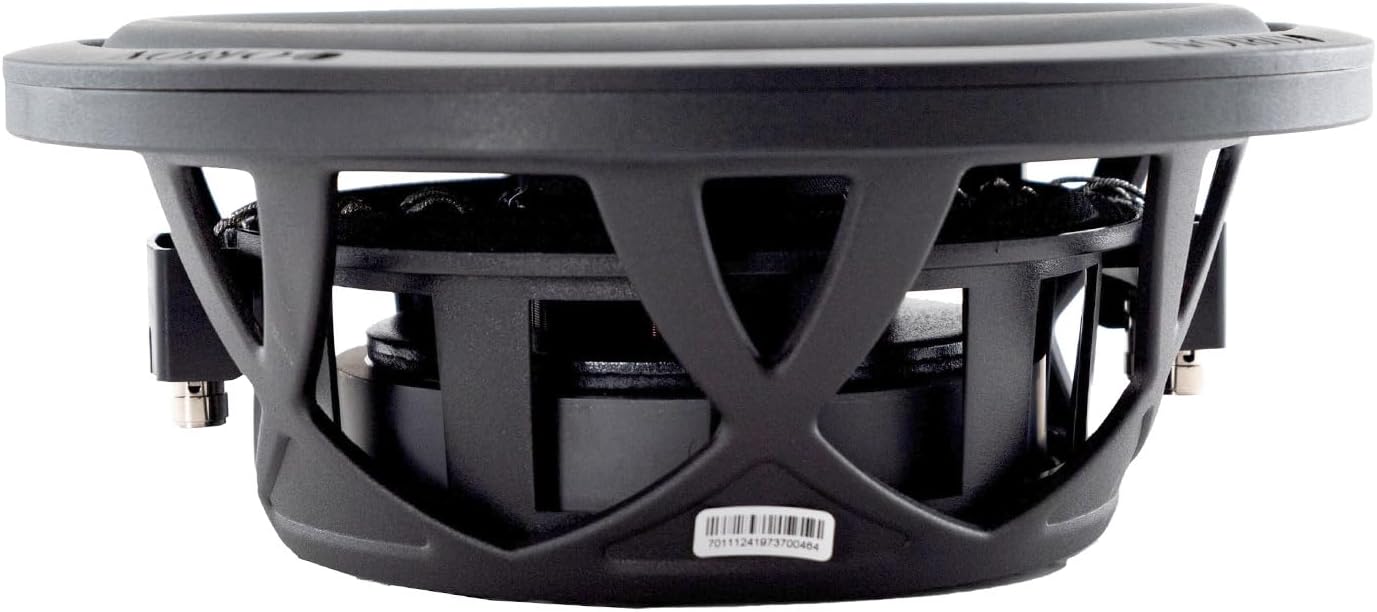

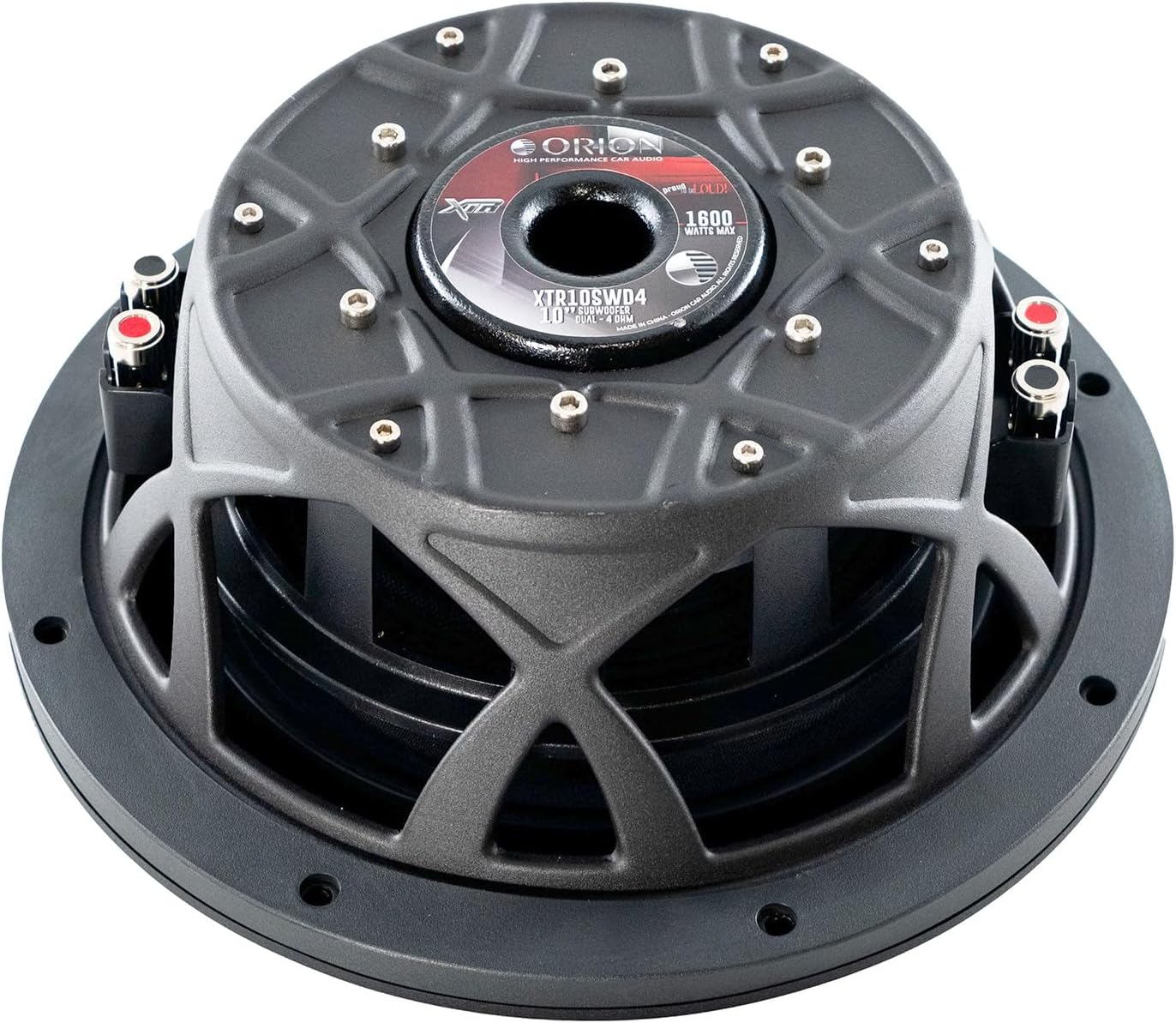

Orion XTR10SWD4 10" Shallow Mount Subwoofer – 1600W Peak / 400W RMS / Dual 4Ω / NBR Surround
Engineered for tight space installations without compromising on sound, the Orion XTR10SWD4 is a high-performance shallow mount subwoofer built to deliver deep, responsive bass. With dual 4-ohm copper-wound voice coils and a rigid UV-coated paper/fiber cone, this sub delivers 1600W peak and 400W RMS power with clarity and durability. A stamped steel basket reduces vibration while NBR rubber surround ensures flexibility and longevity. Whether in a truck, sedan, or compact build, this subwoofer is made to perform.
Key Features
Engineered for tight space installations without compromising on sound, the Orion XTR10SWD4 is a high-performance shallow mount subwoofer built to deliver deep, responsive bass. With dual 4-ohm copper-wound voice coils and a rigid UV-coated paper/fiber cone, this sub delivers 1600W peak and 400W RMS power with clarity and durability. A stamped steel basket reduces vibration while NBR rubber surround ensures flexibility and longevity. Whether in a truck, sedan, or compact build, this subwoofer is made to perform.
Key Features
- Dual 4 Ohm Voice Coils: 2.5" copper-wound coils for versatile wiring and durable performance.
- UV-Coated Paper/Fiber Cone: Enhances rigidity and sound precision.
- NBR Rubber Surround: Allows wide cone excursion with excellent durability.
- Stamped Steel Basket: Boosts structural strength and reduces resonance.
- Nickel-Plated Terminals: Secure, efficient push terminal connections.
- Shallow Mount Design: Ideal for compact installs where space is limited.
- Subwoofer Size: 10"
- Voice Coil: Dual 4-ohm, 2.5"
- Power Handling: 1600W Peak / 400W RMS
- Sensitivity: 83 dB
- Frequency Response: 35 Hz – 300 Hz
- Magnet: Ceramic
- Cone Material: UV Coated Paper / Fiber Blend
- Surround Material: NBR Rubber
- Dust Cap: Polypropylene
- Mounting Depth: 87mm / 3.43"
- Cutout Diameter: 231mm / 9.09"
- Overall Diameter: 275mm / 10.83"
