Description

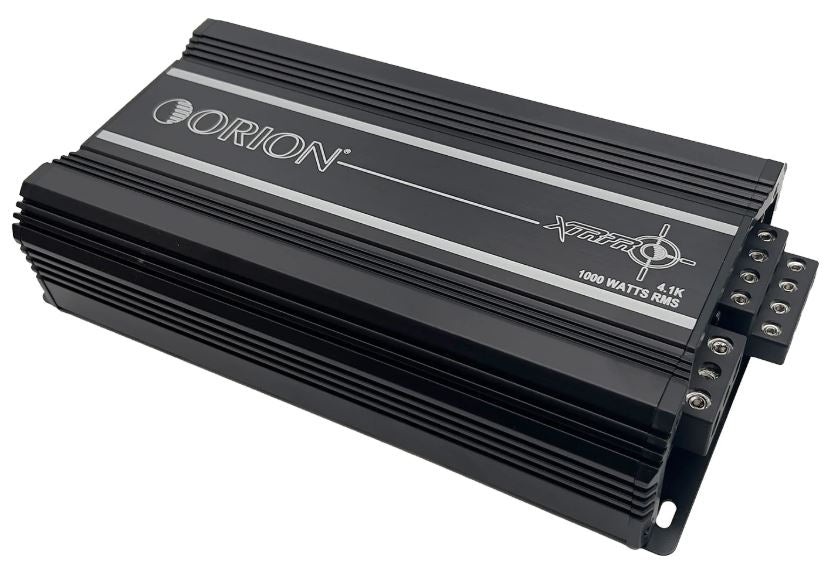

Orion XTRPRO4.1K 4-Channel Full-Range Class D Amplifier – 1 Ohm Stable / 310W RMS x 4
A powerful and compact solution built for clarity, control, and flexibility, the Orion XTRPRO4.1K delivers up to 310 watts RMS per channel at 1 ohm in a rugged, installation-friendly form factor. Whether you’re powering a high-end front stage or a full-range system, this Class D amp provides the performance and efficiency serious audio builds demand.
Key Features
A powerful and compact solution built for clarity, control, and flexibility, the Orion XTRPRO4.1K delivers up to 310 watts RMS per channel at 1 ohm in a rugged, installation-friendly form factor. Whether you’re powering a high-end front stage or a full-range system, this Class D amp provides the performance and efficiency serious audio builds demand.
Key Features
- 4-Channel Full-Range Class D Amplifier
- IntelliTech™ Full-Range Design
- 1-Ohm Stable on All Channels
- Up to 310W RMS x 4 @ 1 Ohm
- Variable High-/Low-Pass Filters (40Hz – 500Hz)
- Variable Bass Boost (0–12dB)
- Remote Gain Controller Included
- Compact Footprint – Just 11" Wide
- Heavy-Duty Power & Speaker Terminals
- Thermal and Short Circuit Protection
- RMS Power @ 4 Ohms: 150W x 4
- RMS Power @ 2 Ohms: 220W x 4
- RMS Power @ 1 Ohm: 310W x 4
- High-Pass Filter: 40Hz – 500Hz
- Low-Pass Filter: 40Hz – 300Hz
- Gain Control: 200mV – 6V
- Signal-to-Noise Ratio: >94dB
- Damping Factor: >100
- Total Harmonic Distortion: <1%
- Power Terminals: 3 × 4 AWG
- Speaker Terminals: 4 × 4 AWG
- Remote Turn-On: 10 AWG
- Dimensions: 11.02" x 5.90" x 2.16"
