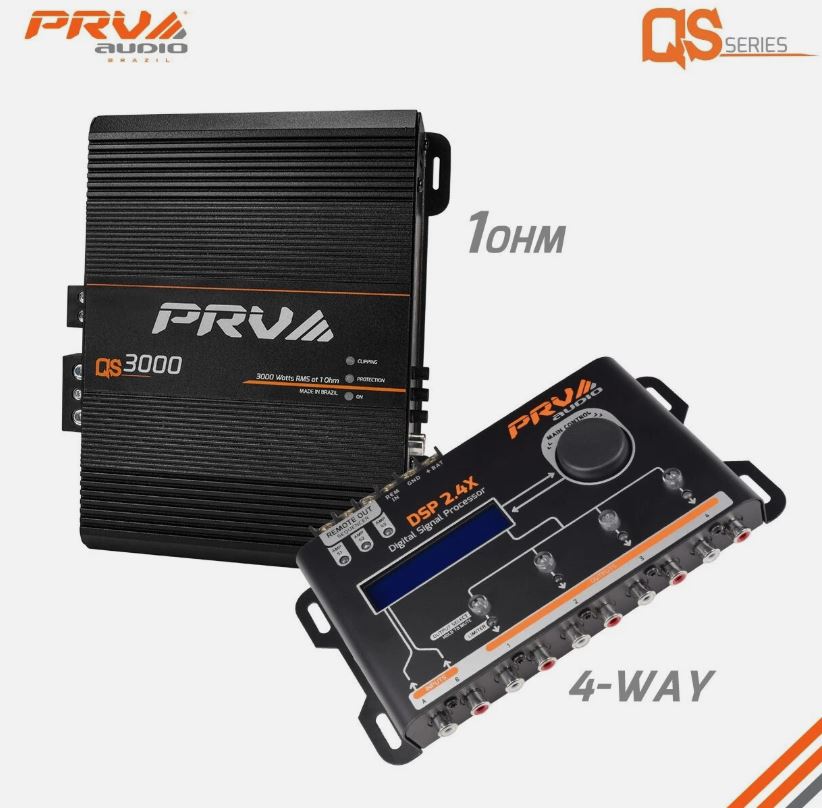

High-power yet compact Class-D monoblock offering massive full-range output with efficiency and protection. Built-in high/low-pass filters and LED status indicators make it installer-friendly. Compact 7.3" × 8.66" × 3" aluminum chassis with 4-way protection safeguards performance.

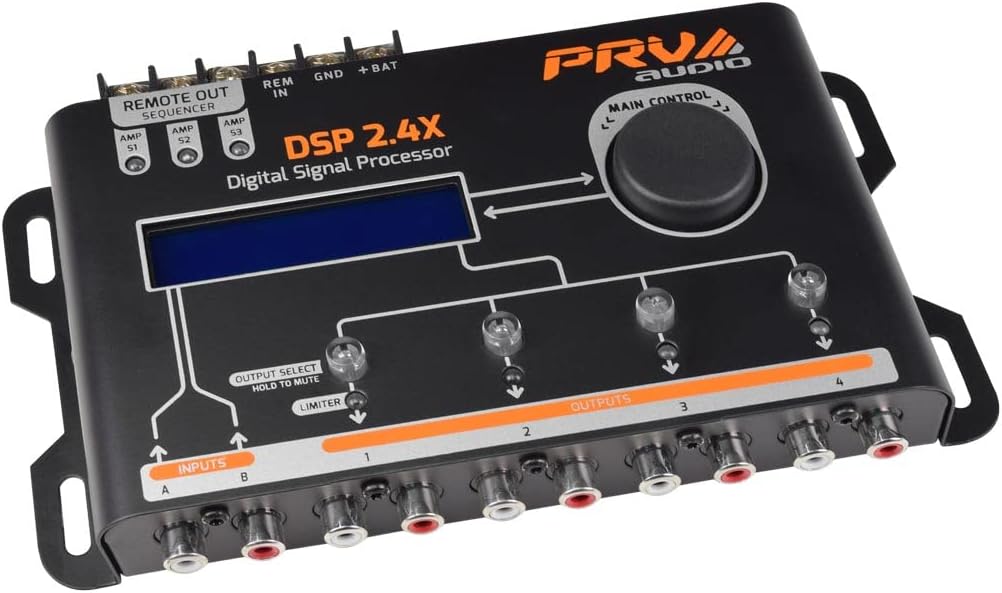

PRV Audio DSP2.4X – 2-Input / 4-Output Digital Signal Processor | 15-Band Graphic & Parametric EQ, 12 Presets, Crossovers, Delay, Limiter, Sequencer
Advanced DSP offering precision audio tuning with:
- 15-band graphic equalizer + 12 presets
- Parametric EQ (1 input + 4 outputs)
- Selectable crossovers (Butterworth or Linkwitz-Riley, up to 48 dB/oct)
- Alignment delay (0–8 ms), phase inversion, individual output gain & mute
- Limiter with auto attack/release
- Tone/frequency generator & scan
- LCD 16×2 display, saver text, password security
- Sequencer feature for controlled REM-triggered activation

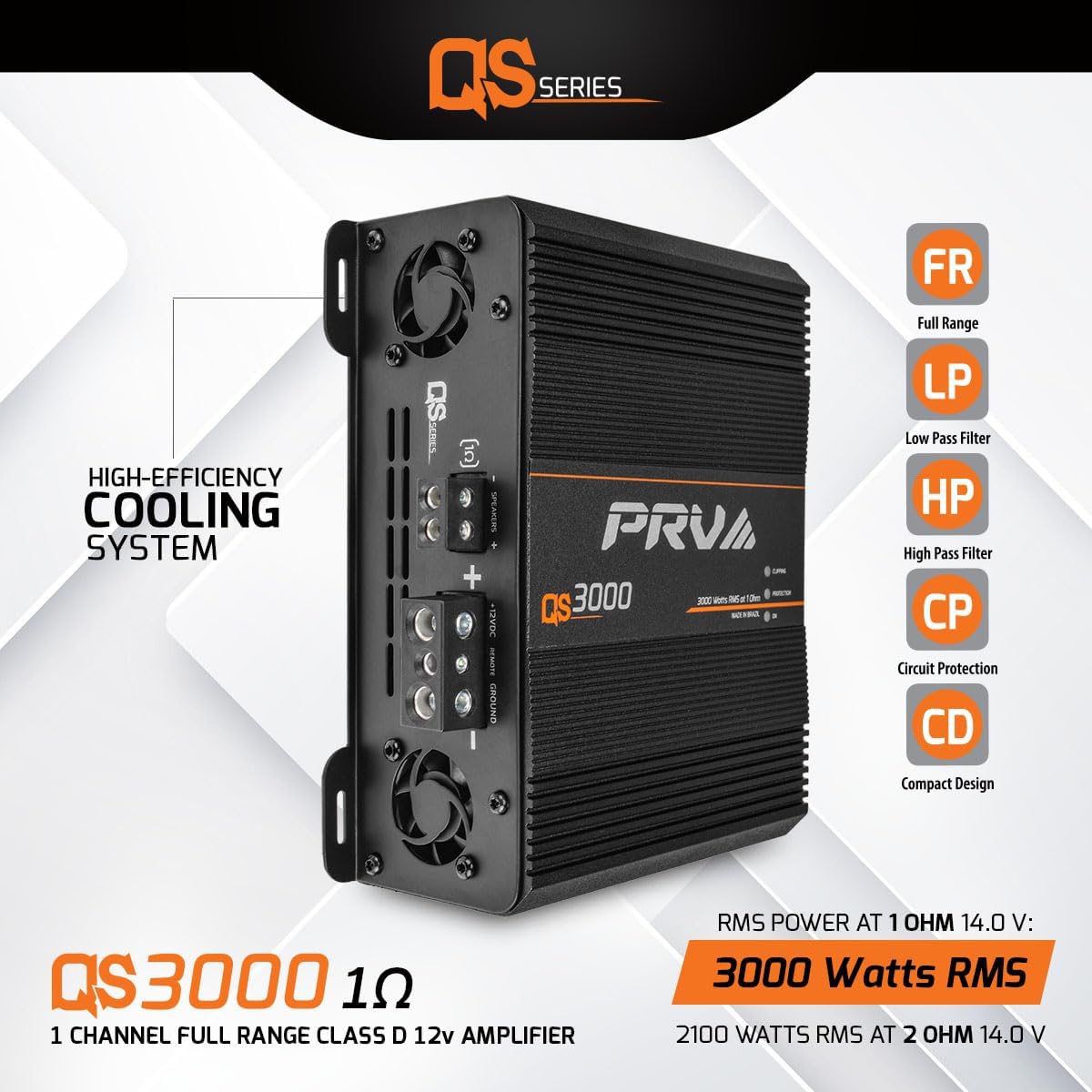

- Amplifier (QS3000): 1 channel; 3000 W RMS @ 1 Ω; 2100 W RMS @ 2 Ω; 4-way protection; 20 Hz–20 kHz; efficiency ~76%; 155 A draw; 7.30″ × 8.66″ × 3″; 5.1 lb; RCA input.
- DSP (DSP2.4X): 2 inputs; 4 outputs; graphic EQ (15-band + presets); parametric EQ; crossover options; limiter; delay; 1.08 ms latency; SNR > 90 dB; THD < 0.01 %; LCD display; 1.45″ × 7.87″ × 3.97″; 1 lb.
