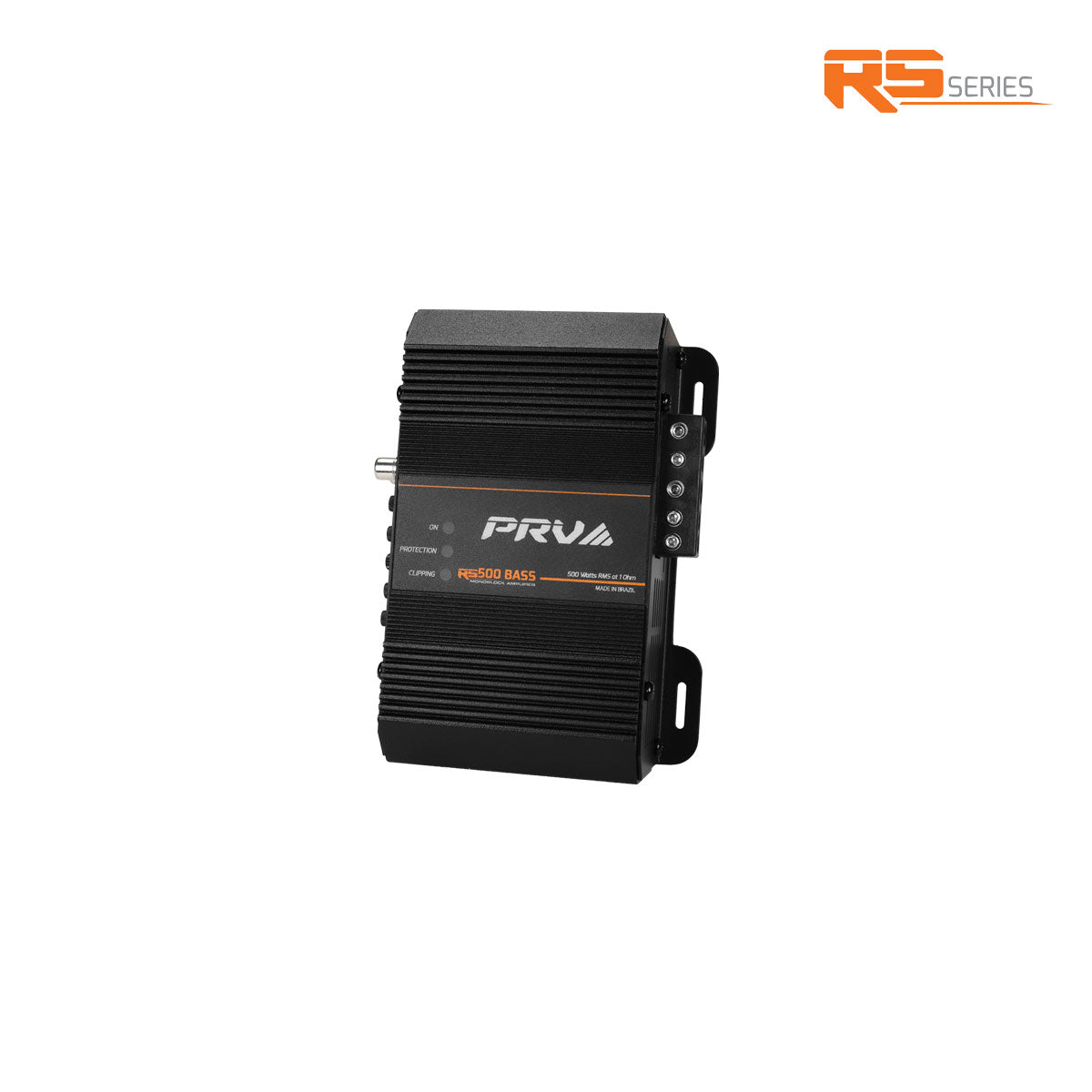

PRV Audio RS500 BASS 1 Ohm RS Series Class D 1-Channel Monoblock Car Amplifier 500W RMS @ 1Ω

PRV Audio RS500 BASS 1 Ohm Monoblock Class D Subwoofer Amplifier – 500W RMS

The PRV Audio RS500 BASS 1 Ohm is a high-performance Class-D monoblock amplifier specifically engineered to deliver massive, deep bass in an ultra-compact chassis. Unlike full-range amplifiers, the RS Series is custom-tailored for SPL and heavy low-frequency reproduction, focusing solely on the 10Hz to 200Hz range. Rated at a true 500 Watts RMS at a 1-Ohm load, this powerhouse features an overbuilt power supply and a high-capacitance reserve designed to store energy and provide consistent, astonishing bass output. Despite its impressive power capabilities, it boasts a tiny footprint weighing only 2 pounds, making it incredibly easy to hide under seats, behind panels, or in tight custom installations.

Built for durability and ease of use, the RS500 BASS features a heavy-duty cast aluminum heatsink with a built-in smart cooling fan to maintain optimal thermal stability under demanding playlists. Adding this amplifier to your stock system is exceptionally easy thanks to the included High-Level (speaker wire) inputs with signal auto turn-on, eliminating the need to run a remote turn-on wire from the factory radio. Fine-tuning your low-end is simple with variable Subsonic and Low Pass Filters, plus an adjustable Bass Boost (up to +12dB at 35Hz-50Hz). Intelligent 4-way protection circuitry and top-panel Clip LED indicators ensure your subwoofer and amplifier stay safe and perform at their peak.

Key Features & Specifications

• Monoblock Subwoofer Amplifier: Specifically engineered Class-D architecture dedicated to deep, high-impact low-frequency reproduction (10Hz – 200Hz)
• RMS POWER (1-Ohm): 500 Watts x 1 Channel
• RMS POWER (2-Ohm): 310 Watts x 1 Channel

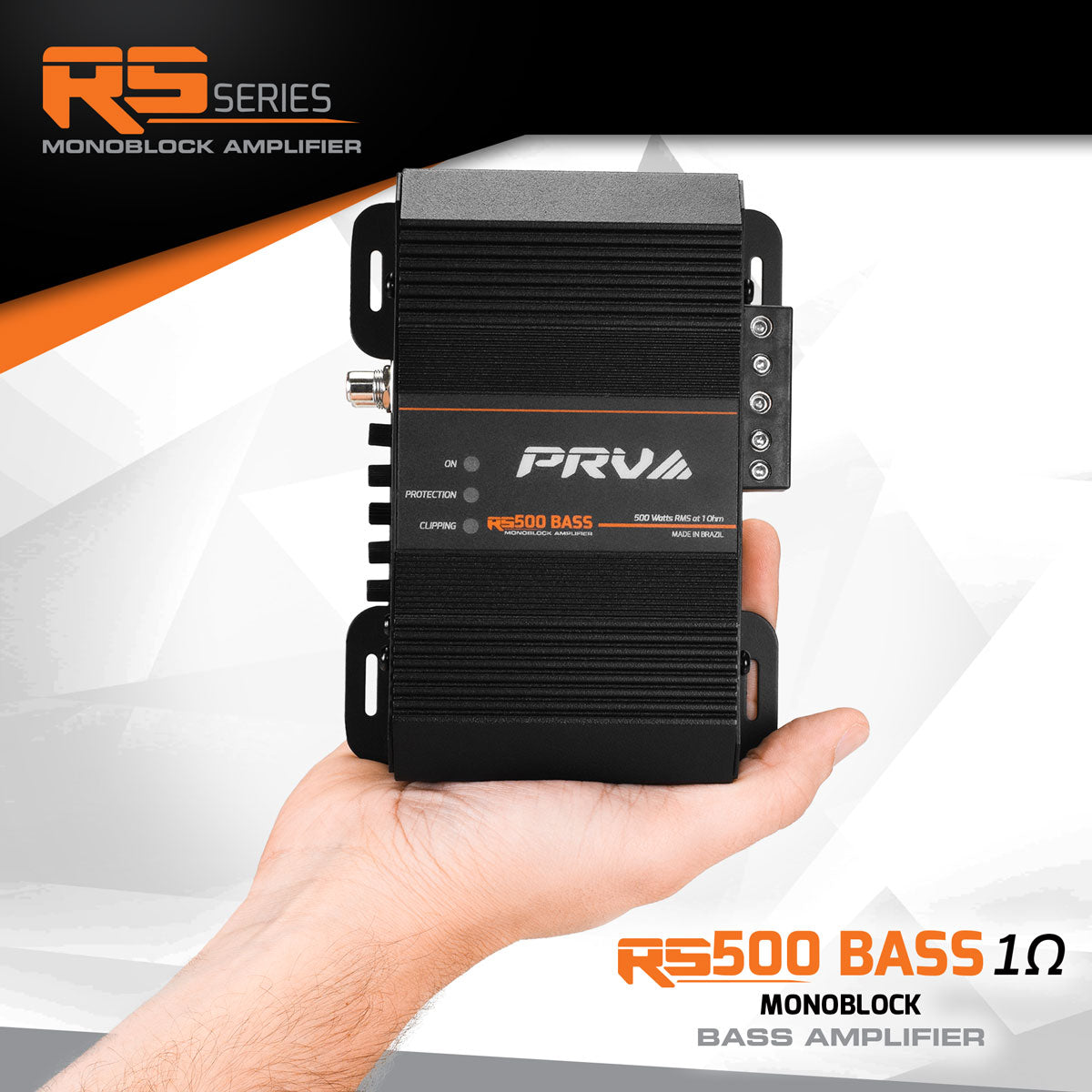

• Ultra-Compact & Efficient: Tiny 6.25" x 4.75" footprint makes it incredibly easy to hide in tight spaces without draining your electrical system
• Top-Panel Monitoring: Features built-in LED indicators on the top panel to easily monitor power status and detect signal clipping

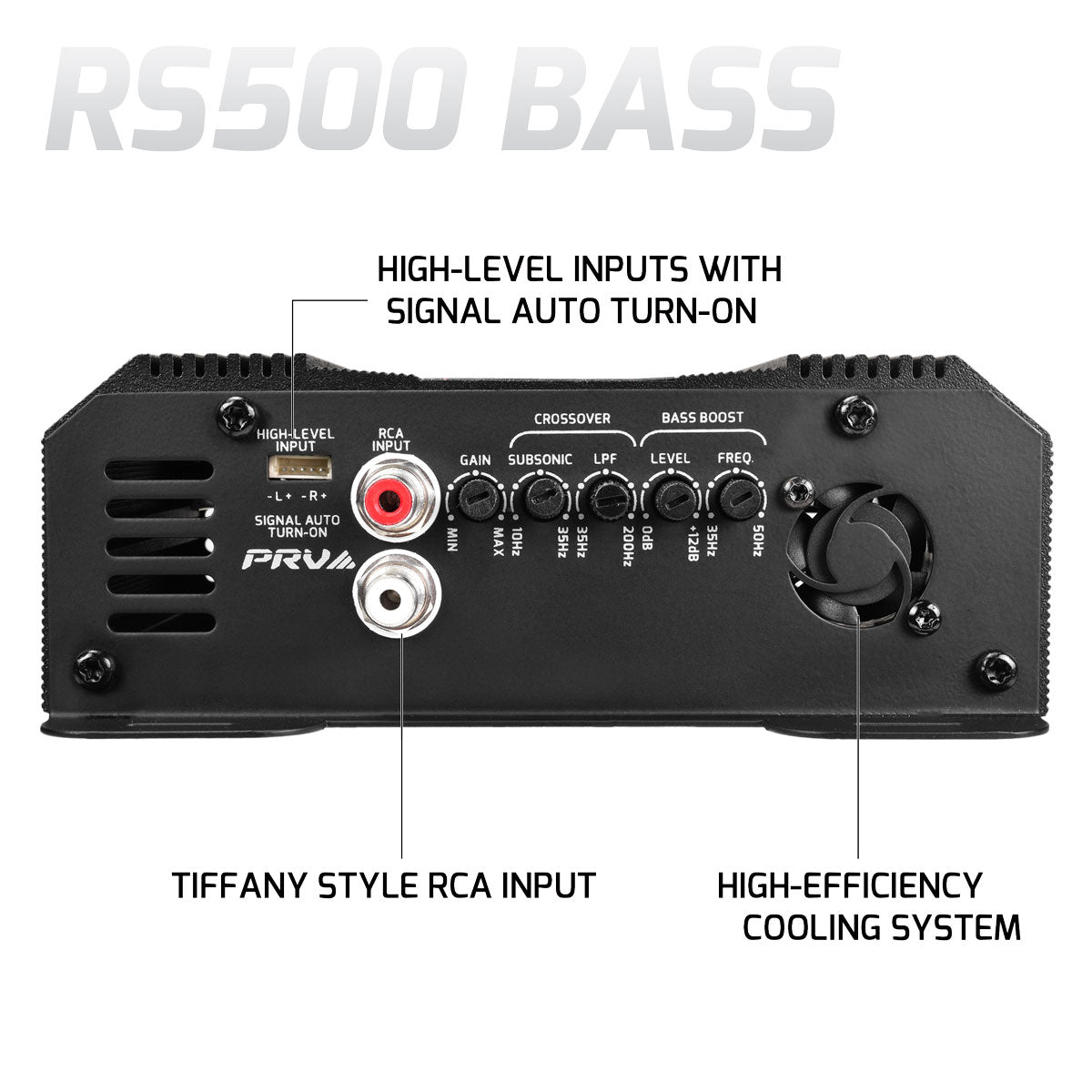

• Universal Integration: Features both vibration-resistant Tiffany RCA inputs and High-Level (speaker wire) inputs for easy connection to factory OEM or aftermarket stereos
• Advanced Thermal Management: Heavy-duty cast aluminum heatsink paired with a built-in smart cooling fan keeps the amplifier running cool during heavy use
• Precision Tuning: Fully adjustable built-in Low Pass Filter (LPF), Subsonic Filter, and a variable Bass Boost control (0 to +12dB @ 35-50Hz) to perfectly dial in your subwoofers
• Intelligent Protection: 4-way protection circuitry safeguards against high voltage, low voltage, output shortages, and high current draw
• Heavy-Duty Terminals: Equipped with high-current flow 8-gauge power/ground inputs and 16-gauge speaker outputs
• Required Fusing: 35 Amp external inline circuit breaker or fuse required (not included)
• Dimensions: 6.25" (L) x 4.75" (W) x 2.25" (H)
