- Modes: AM/FM/USB/LSB/CW
- An improved receiver: Designed for increased sensitivity and image rejections.
- A double FET balanced mixer: For improved receiver intermodulation rejection.
- New power supply protection and temperature compensation: For improved stability and reliability over wide temperature ranges.
- Surface mount components: For increased resistance to shock and vibration.
- Improved display lighting: For easy reading in a wide range of light conditions.
- Variable power output control: Adjusts your deadkey power.
- 10 and 12 Meter Bands: Allows you to recieve and transmit on these popular amateur frequency bands.
- Receiver Clarifier: Allows you to adjust your recieve frequency.
- Noise Blanker/ Automatic Noise Limiter: Reduces extra static and recieve noise.
- Programmable repeater offset: Allows you to offset your frequency for FM repeator use.
- Large green backlite frequency display with dimmer.
- Active frequency scanner: Scans through to find active frequencies.
- Ten programmable frequencies: Program in your most monitored frequencies for easy access.
- 300 Watt Peak Power.
- Bottom and rear heatsinks: Disperses extra heat away from internal components.

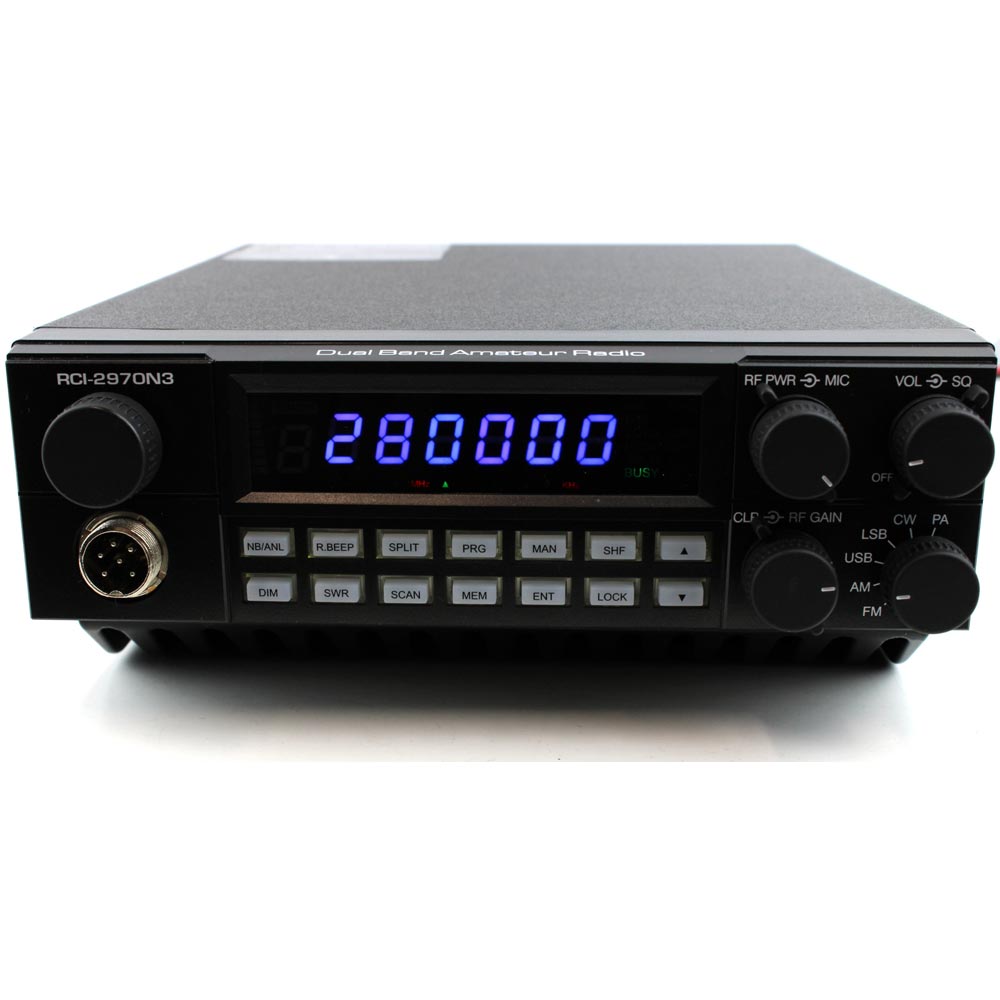

- Ranger RCI2970N3 Specifications:
- Power Output: 300 Watts PeP
- Modes: AM / FM / CW / USB / LSB
- Frequency Range: 10 Meter 28~29 MHz & 12 Meter 25~26 MHz
- Length: 10 1/8" from SO-239 to bezel
- Length: 11 1/8" from SO-239 to control knobs
- Width: 7 7/8"
- Height: 2 7/8"
- Current Draw: 40 Amp
- Fuse Size: 50 Amp
- Microphone Pin-Out: 6-Pin RCI
- Power Connection: 2-Pin Heavy Duty
