Description

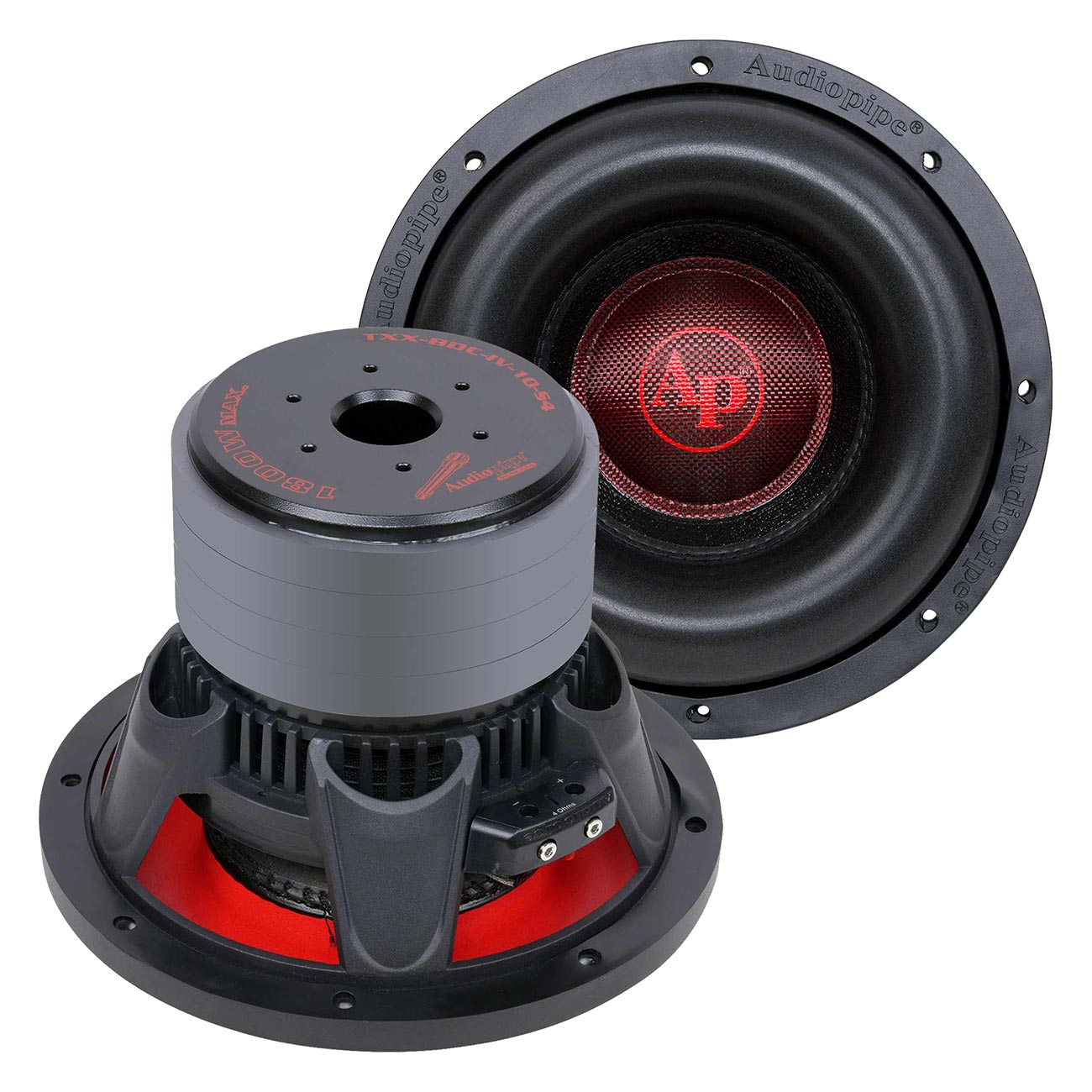

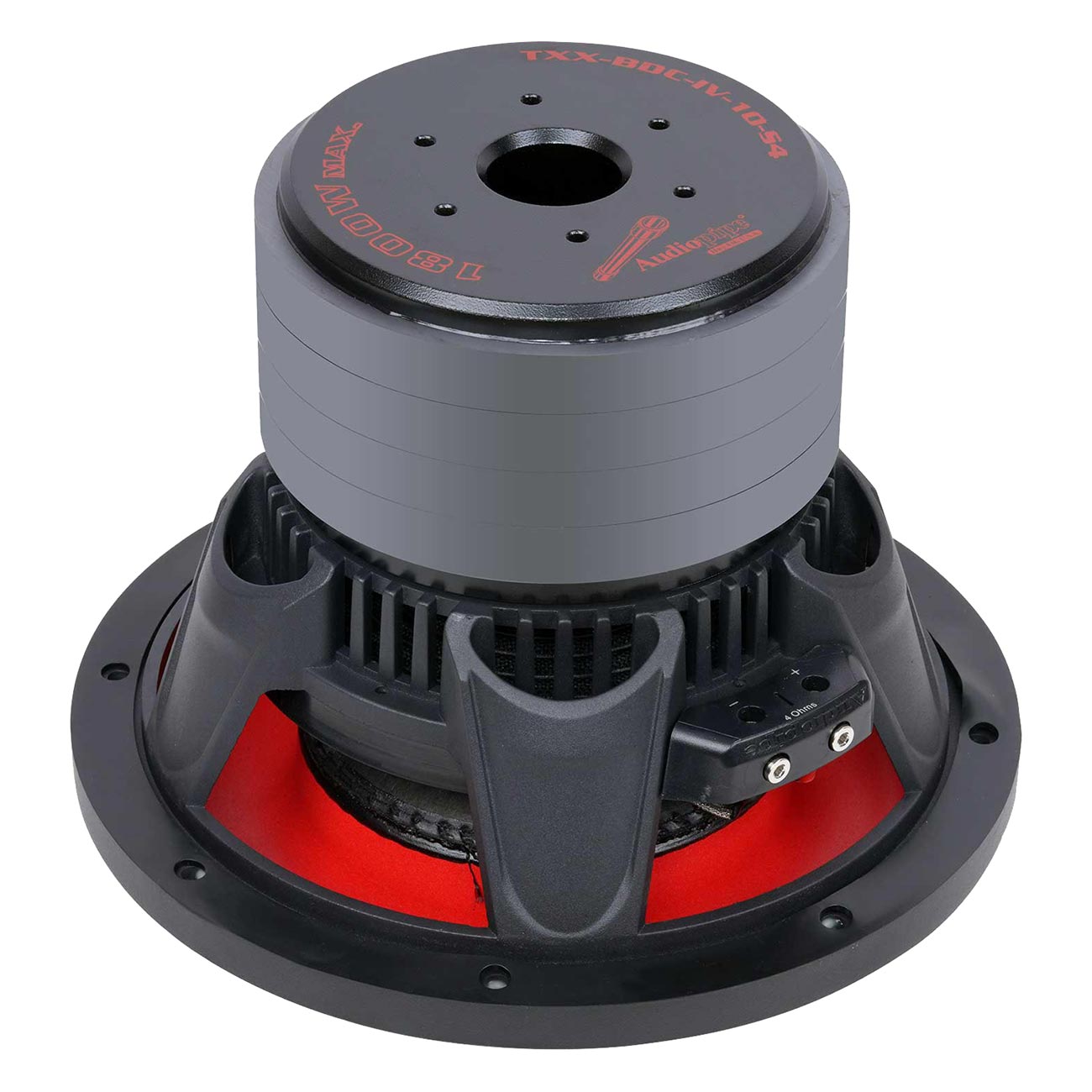

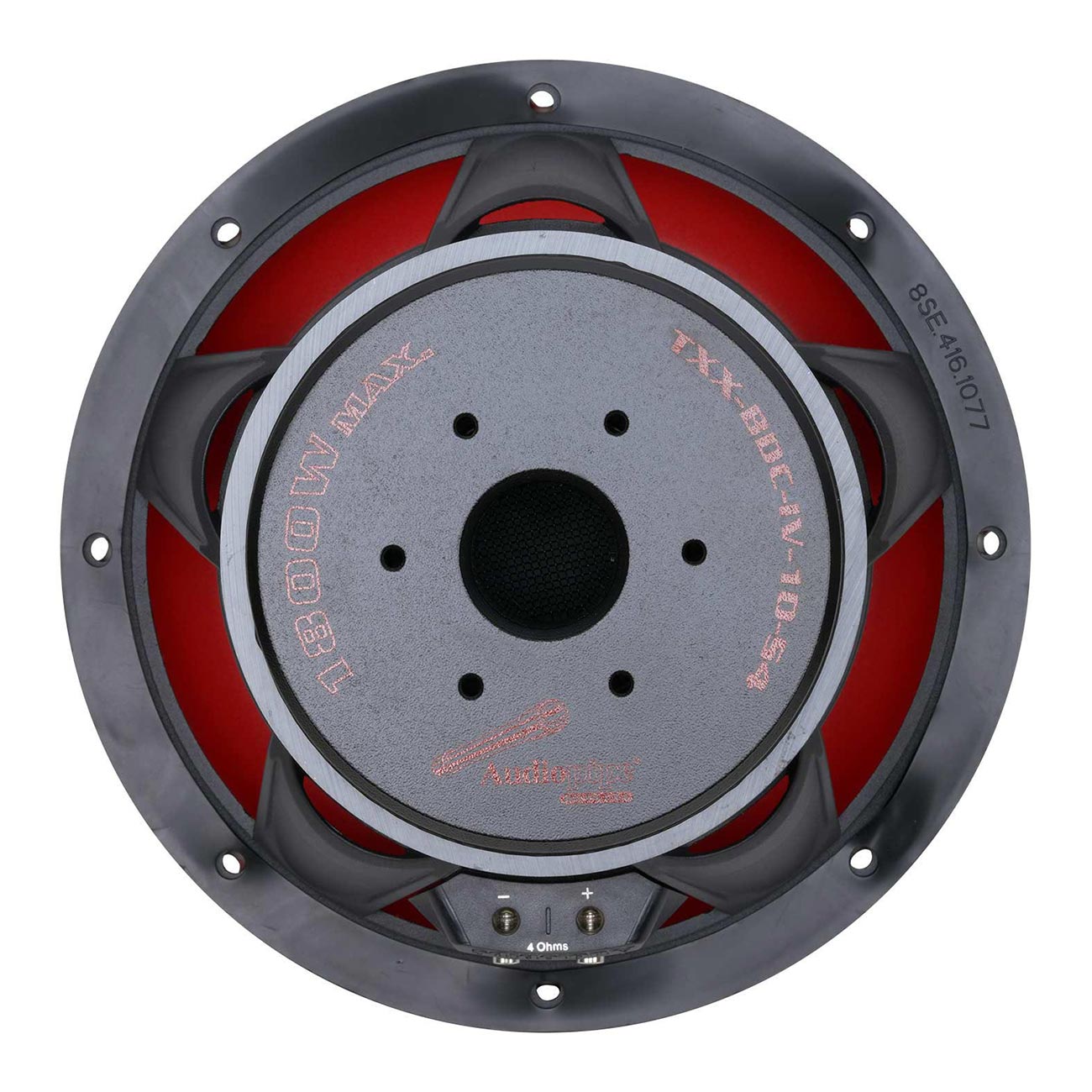

Pair of Audiopipe TXX-BDC-IV-10-S4 10" Quad Stacked Composite Cone Subwoofers – 3600W Max Total
The Audiopipe TXX-BDC-IV-10-S4 is a high-power 10-inch subwoofer engineered for strong, controlled bass output in both daily systems and high-output builds. As part of the prestigious Quad Stack (IV) series, this driver features a massive 170 oz quad-stacked motor structure and a rigid powder-coated aluminum basket. Rated at 900 Watts RMS, it is built to handle serious amplifier power while maintaining low-frequency accuracy. The TXX-BDC-IV-10-S4 features a Kevlar-reinforced composite non-press paper cone and a 2.5-inch 4-layer high-temperature BASV voice coil for improved thermal stability. This "S4" model provides a Single 4-Ohm impedance, offering a straightforward wiring solution for high-fidelity and SPL-oriented setups alike.
Product Specifications (Per Pair)
The Audiopipe TXX-BDC-IV-10-S4 is a high-power 10-inch subwoofer engineered for strong, controlled bass output in both daily systems and high-output builds. As part of the prestigious Quad Stack (IV) series, this driver features a massive 170 oz quad-stacked motor structure and a rigid powder-coated aluminum basket. Rated at 900 Watts RMS, it is built to handle serious amplifier power while maintaining low-frequency accuracy. The TXX-BDC-IV-10-S4 features a Kevlar-reinforced composite non-press paper cone and a 2.5-inch 4-layer high-temperature BASV voice coil for improved thermal stability. This "S4" model provides a Single 4-Ohm impedance, offering a straightforward wiring solution for high-fidelity and SPL-oriented setups alike.
Product Specifications (Per Pair)
- SUPERIOR PERFORMANCE: The TXX-BDC-IV-10-S4 was designed and engineered with 4 magnets for strong power handling and increased voice coil ventilation for ultimate performance and endurance.
- PEAK POWER: 3600 Watts Per Pair / 1800 Watts Each
- RMS POWER: 1800 Watts Per Pair / 900 Watts Each
- MAGNET: Boasting 4 magnets for strong power handling, 170 Oz
- FREQUENCY RESPONSE: 30-1,300Hz
- SENSITIVITY: 85dB
- VOICE COIL: The TXX-BDC-IV-10-S4 has a 2.5 inch 4-layer high temperature black aluminum (BASV) voice coil, engineered with improved voice coil ventilation for substantial performance and endurance.
- ALUMINUM BASKET: The TXX-BDC-IV-10-S4's newly designed powdered black paint aluminum basket with a composite glass fiber dust cap, and a newly refreshed and strongly constructed dust-proof heat sink was engineered to deliver optimal sound quality.
- QUAD WEAVED TINSEL LEADS: The TXX-BDC-IV-10-S4 is crafted with progressive weaved tinsel leads on each side of the subwoofer, ensuring optimal sound quality and durability.
- SILVER PUSH SPRING LOADED TERMINALS: Equipped with durable silver push spring-loaded terminals for reliable and convenient wiring, ensuring secure connections and hassle-free installation.
- KEVLAR FIBER COMPOSITE NON-PRESS PAPER CONE: The Kevlar Fiber Composite Non-press Paper Cone with Texture finish is newly designed to improve cone rigidity for better performance.
- MOUNTING DEPTH: 175 mm (6-7/8”)
- IMPEDANCE: 4 Ohms
