Description

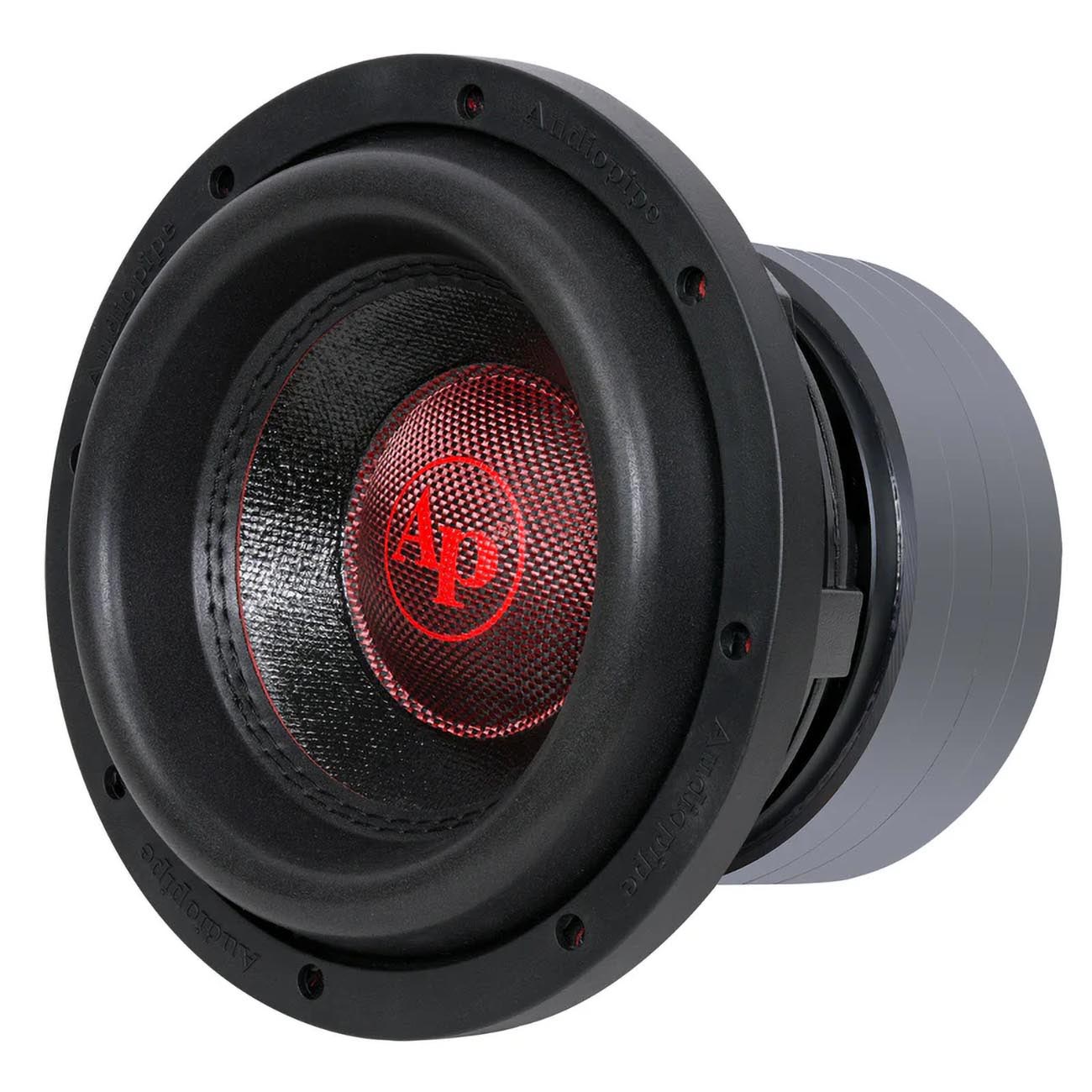

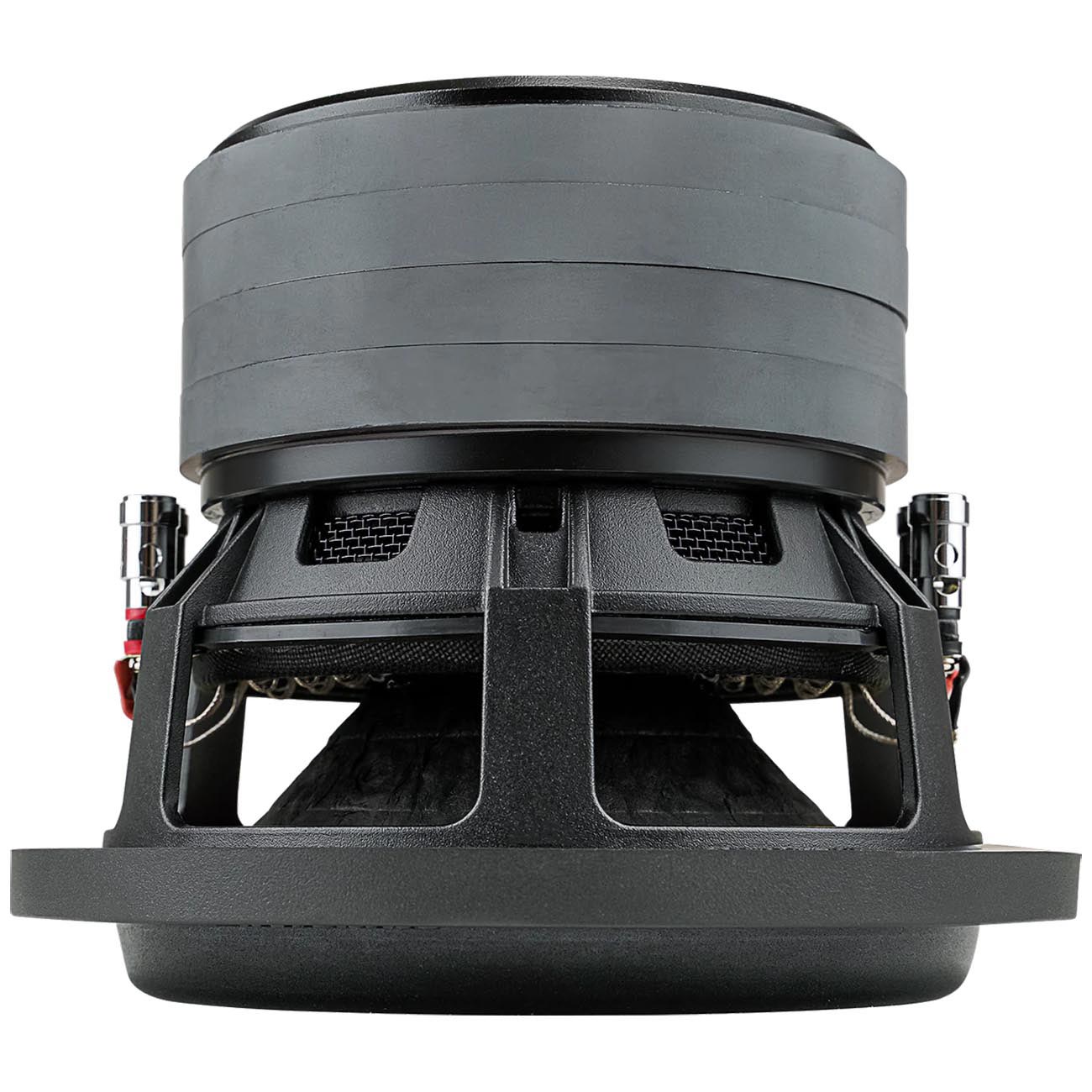

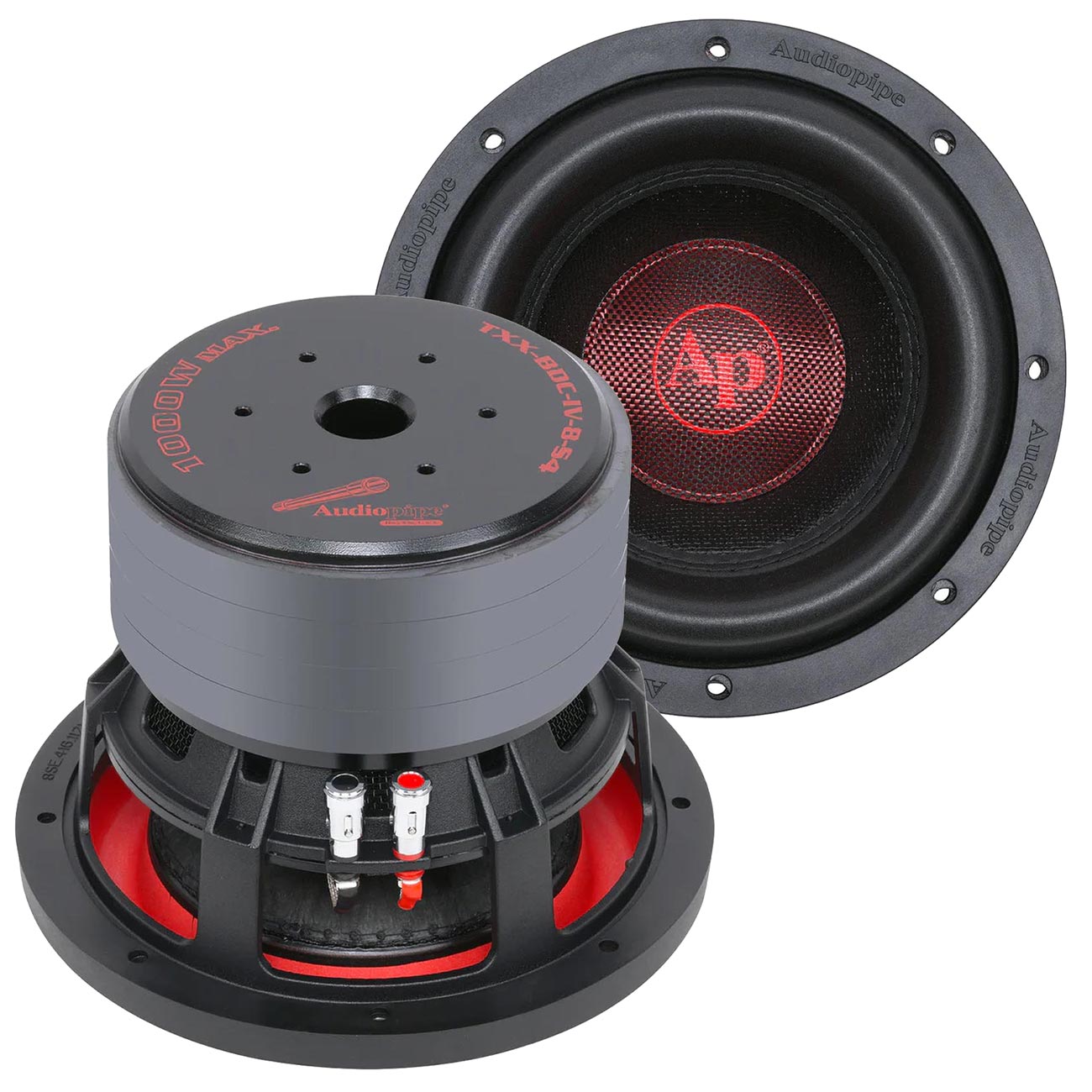

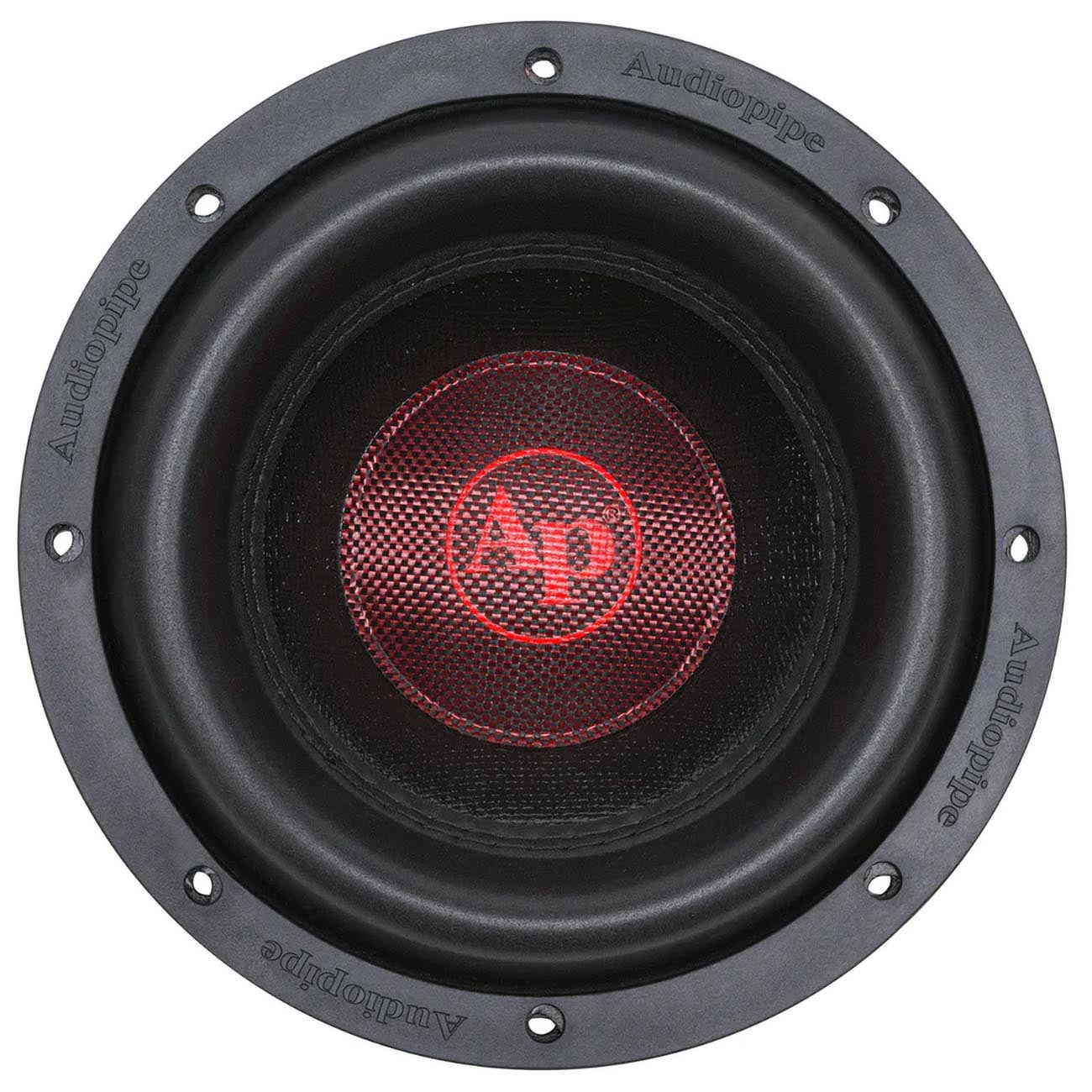

Pair of Audiopipe TXX-BDC-IV-8-S4 8" Quad Stacked Composite Cone Subwoofers – 2000W Max Total
The Audiopipe TXX-BDC-IV-8-S4 is a high-performance 8-inch subwoofer designed to deliver massive bass output from a compact enclosure. As a pair, these "small but mighty" Quad Stack (IV) series drivers feature heavy-duty 100 oz quad-stacked motor structures and rigid powder-coated aluminum baskets, allowing them to handle a combined 1000 Watts RMS. Each TXX-BDC-IV-8-S4 is constructed with a Kevlar fiber composite non-press paper cone and a 2-inch 4-layer high-temperature BASV voice coil to ensure maximum durability under heavy stress. With their Single 4-Ohm impedance, this duo offers a straightforward wiring solution—perfect for achieving a 2-Ohm final load to extract maximum power from your amplifier in limited space.
Product Specifications (Per Pair)
The Audiopipe TXX-BDC-IV-8-S4 is a high-performance 8-inch subwoofer designed to deliver massive bass output from a compact enclosure. As a pair, these "small but mighty" Quad Stack (IV) series drivers feature heavy-duty 100 oz quad-stacked motor structures and rigid powder-coated aluminum baskets, allowing them to handle a combined 1000 Watts RMS. Each TXX-BDC-IV-8-S4 is constructed with a Kevlar fiber composite non-press paper cone and a 2-inch 4-layer high-temperature BASV voice coil to ensure maximum durability under heavy stress. With their Single 4-Ohm impedance, this duo offers a straightforward wiring solution—perfect for achieving a 2-Ohm final load to extract maximum power from your amplifier in limited space.
Product Specifications (Per Pair)
- SUPERIOR PERFORMANCE: The TXX-BDC-IV-8-S4 was designed and engineered with 4 magnets for strong power handling and increased voice coil ventilation for ultimate performance and endurance.
- PEAK POWER: 2000 Watts Per Pair / 1000 Watts Each
- RMS POWER: 1000 Watts Per Pair / 500 Watts Each
- MAGNET: Boasting 4 magnets for high motor strength, 100 Oz
- FREQUENCY RESPONSE: 35-1,800Hz
- SENSITIVITY: 84dB
- VOICE COIL: The TXX-BDC-IV-8-S4 has a 2 inch 4-layer high temperature black aluminum (BASV) voice coil, engineered with improved voice coil ventilation for substantial performance and endurance.
- ALUMINUM BASKET: The TXX-BDC-IV-8-S4's newly designed powdered black paint aluminum basket with a composite glass fiber dust cap, and a newly refreshed and strongly constructed dust-proof heat sink was engineered to deliver optimal sound quality.
- QUAD WEAVED TINSEL LEADS: The TXX-BDC-IV-8-S4 is crafted with progressive weaved tinsel leads on each side of the subwoofer, ensuring optimal sound quality and durability.
- SILVER PUSH SPRING LOADED TERMINALS: Equipped with durable silver push spring-loaded terminals for reliable and convenient wiring, ensuring secure connections and hassle-free installation.
- KEVLAR FIBER COMPOSITE NON-PRESS PAPER CONE: The Kevlar Fiber Composite Non-press Paper Cone with Texture finish is newly designed to improve cone rigidity for better performance.
- MOUNTING DEPTH: 148mm (5-13/16”)
- IMPEDANCE: 4 Ohms
