Description

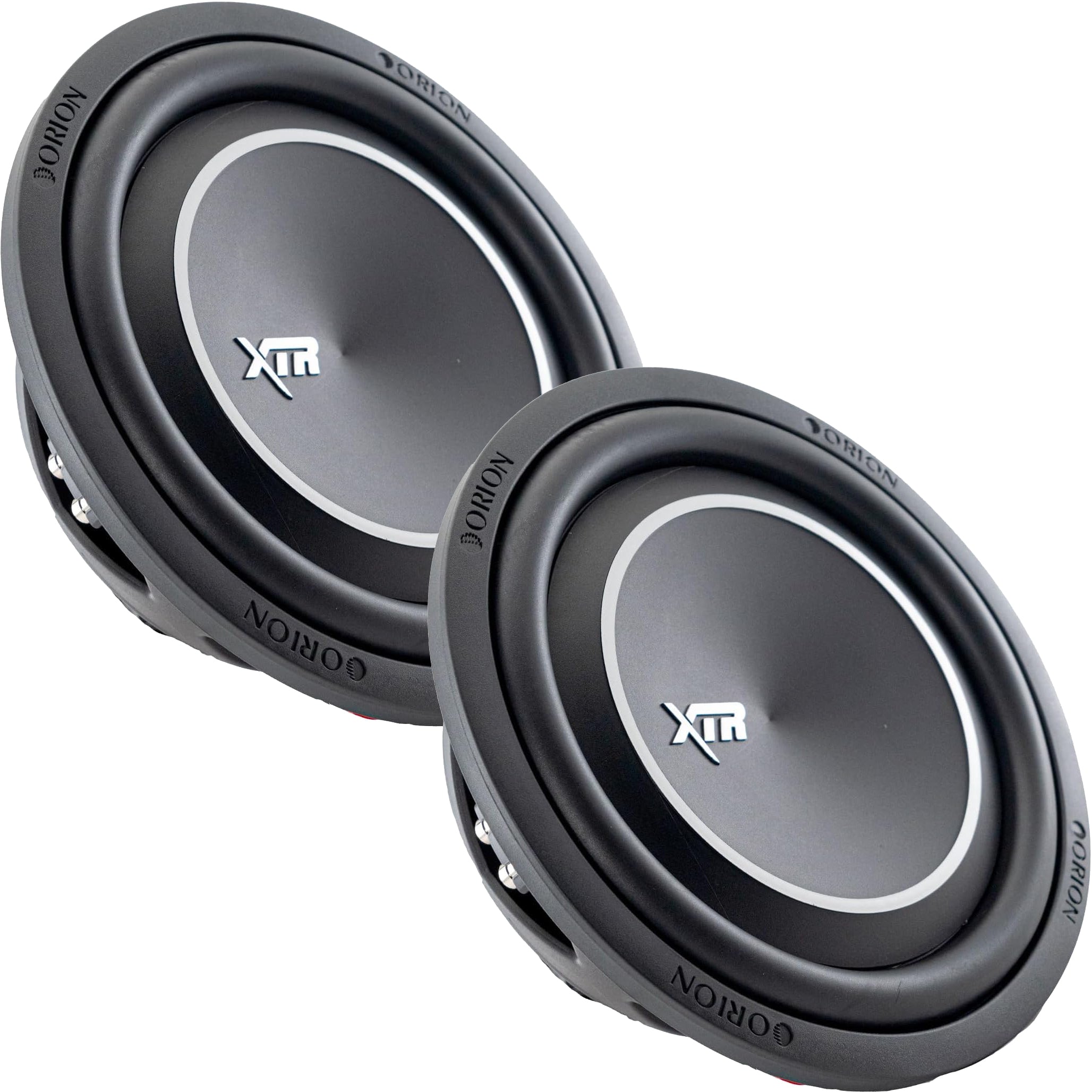

(2) Orion XTR12SWD4 12" Shallow Mount Subwoofers – 4000W Peak / 1000W RMS (Per Pair) – Dual 4Ω / NBR Surround
Designed for space-conscious installs that still demand serious low-end, the Orion XTR12SWD4 shallow-mount subwoofer delivers reliable bass performance. Each 12″ driver features dual 4-ohm copper-wound voice coils, a rigid UV-coated paper/fiber cone, and a durable NBR surround for long-lasting output. A stamped steel basket reduces resonance, ensuring clarity in compact enclosures.
Key Features
Designed for space-conscious installs that still demand serious low-end, the Orion XTR12SWD4 shallow-mount subwoofer delivers reliable bass performance. Each 12″ driver features dual 4-ohm copper-wound voice coils, a rigid UV-coated paper/fiber cone, and a durable NBR surround for long-lasting output. A stamped steel basket reduces resonance, ensuring clarity in compact enclosures.
Key Features
- Dual 4 Ohm Voice Coils: 3" copper-wound coils for versatile wiring.
- UV-Coated Paper/Fiber Cone: Increases rigidity for accurate bass reproduction.
- NBR Rubber Surround: Allows wide cone excursion with durability.
- Stamped Steel Basket: Reinforces structure and minimizes vibration.
- Nickel-Plated Push Terminals: Provide secure and efficient connections.
- Shallow Mount Design: Fits tight spaces without sacrificing bass output.
- Subwoofer Size: 12"
- Voice Coil: Dual 4-ohm, 3"
- Power Handling (Peak): 4000 Watts Per Pair / 2000 Watts Each
- Power Handling (RMS): 1000 Watts Per Pair / 500 Watts Each
- Sensitivity: 85 dB
- Frequency Response: 28 Hz – 300 Hz
- Magnet: Ceramic
- Cone Material: UV-Coated Paper / Fiber Blend
- Surround Material: NBR Rubber
- Dust Cap: Polypropylene
- Mounting Depth: 91mm / 3.58"
- Cutout Diameter: 280mm / 11.02"
- Overall Diameter: 324mm / 12.76"
- Total Combined Weight: ~32 lb (pair)
