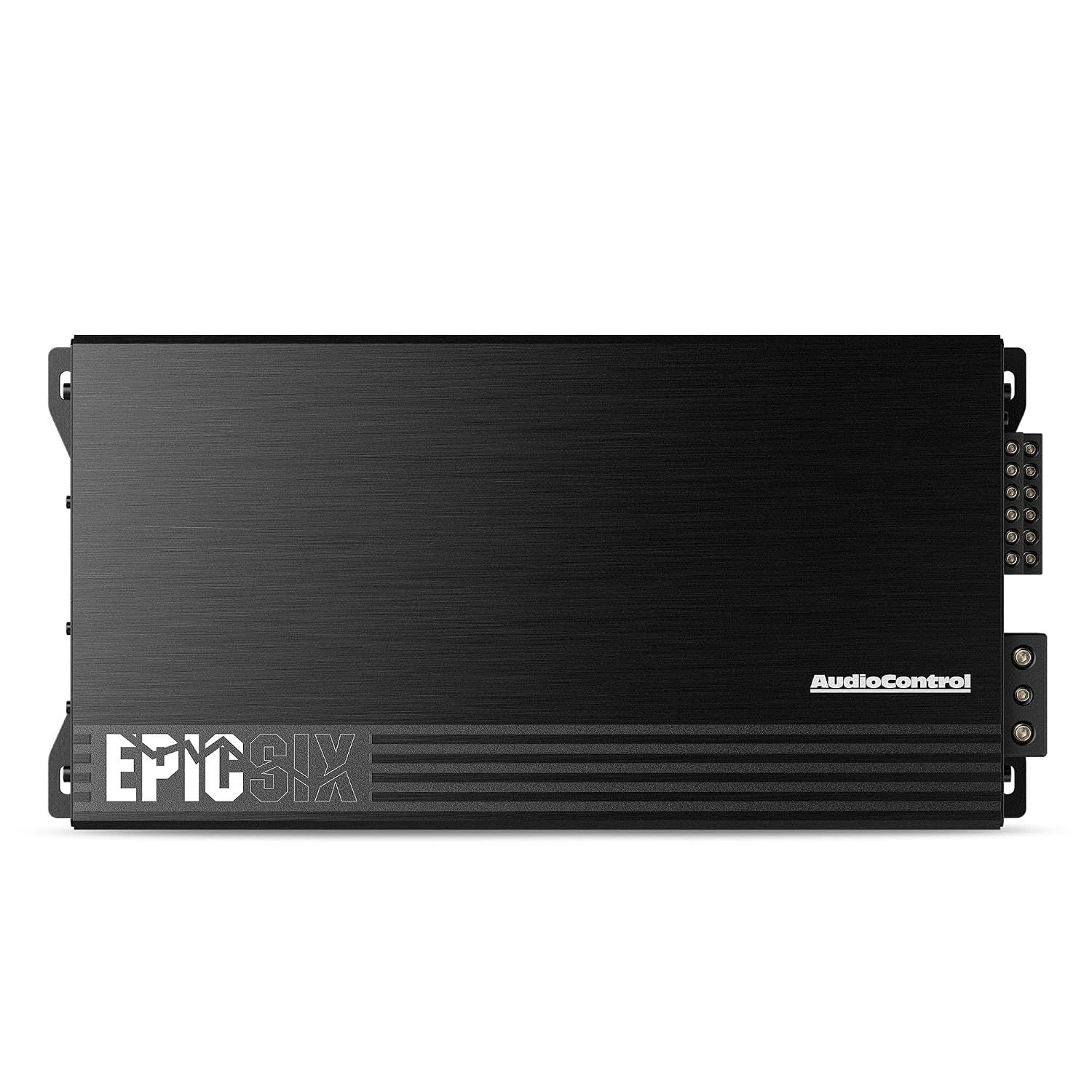

AudioControl EPICSIX 6-Channel 1200W RMS EPIC Series Full-Range Class D Amplifier
The AudioControl EPICSIX is a compact, high-power Class D 6-channel amplifier engineered for flexibility, output, and reliability. Delivering a massive 1200 Watts RMS total power, this amplifier features a high-current design that ensures serious performance while maintaining thermal efficiency. Whether your custom system design calls for an active 3-way front stage, a 5-channel layout, an active 6-channel configuration, or a powerful bridged setup, the EPICSIX fits the plan and delivers pristine sound quality.
Built to handle demanding conditions, it is 2-ohm stable and features a Smart Auto-Reset Protection Circuit to keep your system running smoothly. With fully adjustable high-pass and low-pass Linkwitz-Riley crossover filters spanning from 50 Hz to 5000 Hz, the EPICSIX allows for precise tuning of active or passive setups. This ensures proper frequency distribution, improved sound clarity, and reliable speaker protection, giving you the freedom to build and evolve your ultimate audio system without limitations.
Key Features & Specifications
The AudioControl EPICSIX is a compact, high-power Class D 6-channel amplifier engineered for flexibility, output, and reliability. Delivering a massive 1200 Watts RMS total power, this amplifier features a high-current design that ensures serious performance while maintaining thermal efficiency. Whether your custom system design calls for an active 3-way front stage, a 5-channel layout, an active 6-channel configuration, or a powerful bridged setup, the EPICSIX fits the plan and delivers pristine sound quality.
Built to handle demanding conditions, it is 2-ohm stable and features a Smart Auto-Reset Protection Circuit to keep your system running smoothly. With fully adjustable high-pass and low-pass Linkwitz-Riley crossover filters spanning from 50 Hz to 5000 Hz, the EPICSIX allows for precise tuning of active or passive setups. This ensures proper frequency distribution, improved sound clarity, and reliable speaker protection, giving you the freedom to build and evolve your ultimate audio system without limitations.
Key Features & Specifications
- Amplifier Topology: Compact, high-power Class D design engineered for top-quality sound and thermal efficiency.

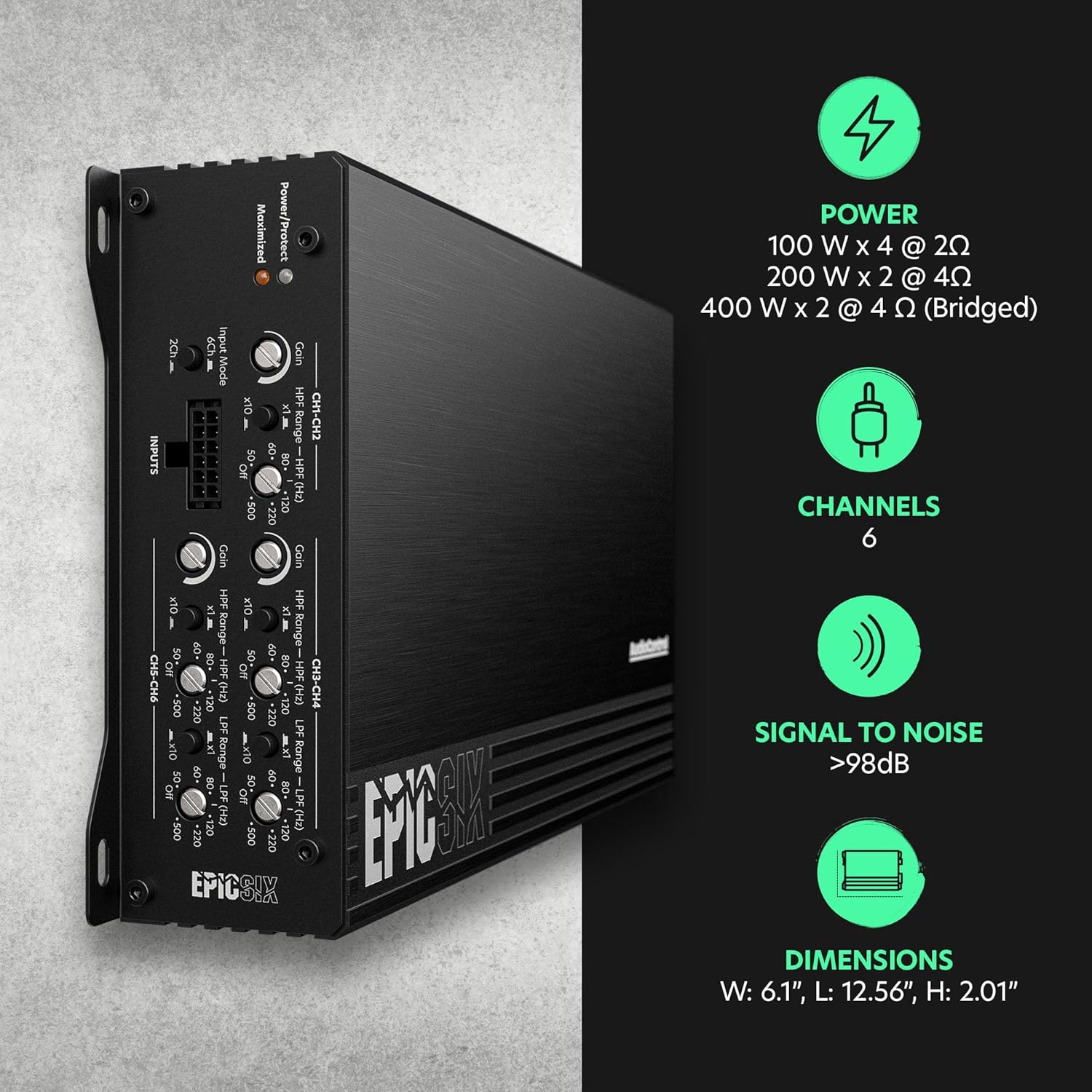

- Power Output (RMS): Delivers 6 x 100 Watts at 4 ohms, 6 x 200 Watts at 2 ohms, and 2 x 400 Watts at 4 ohms bridged (Ch. 3/4 and 5/6).
- High-Current Design: 2-ohm stable operation ensures maximum power output while maintaining system efficiency.

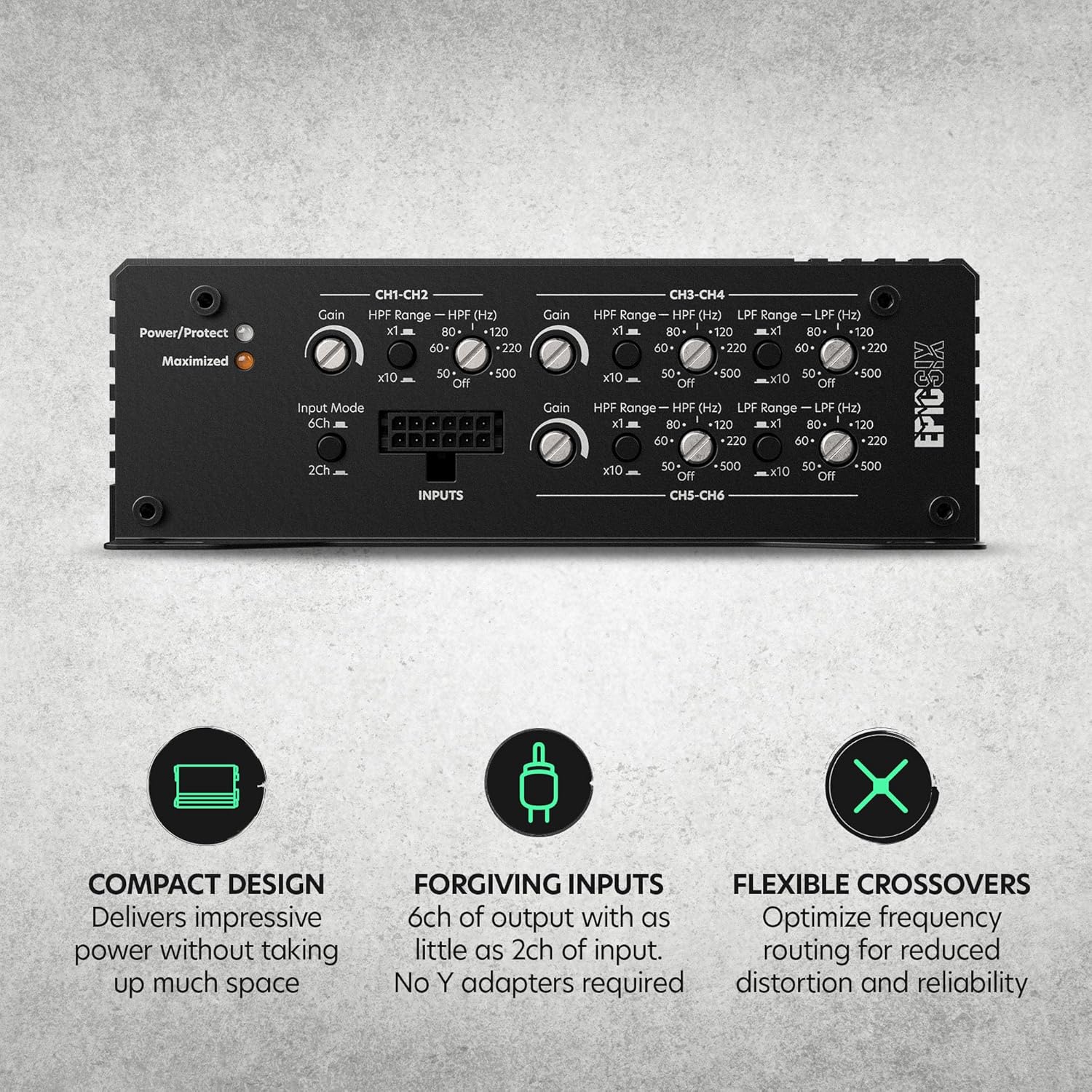

- Crossovers: Fully adjustable 12dB/octave Linkwitz-Riley High-Pass and Low-Pass filters (50 Hz to 5000 Hz) for precise tuning of your soundstage.
- Protection Circuitry: Features a Smart Auto-Reset Protection Circuit that keeps the amplifier running smoothly even under demanding conditions.
- Frequency Response: 10 Hz - 22 kHz (+/- 3 dB) for incredibly clear, full-range audio reproduction.
- Signal-to-Noise Ratio: -98 dBa (Ref 100 Watts at 4 ohms).
- Connectivity: Accepts 4 AWG power/ground wire and 10 AWG speaker wire, featuring line-level inputs from 500mV to 12V RMS.
- Recommended Fuse Rating: 125 Amps.
- Dimensions: 12.56" (L) x 6.1" (W) x 2.01" (H) (Dimensions do not include connectors).
