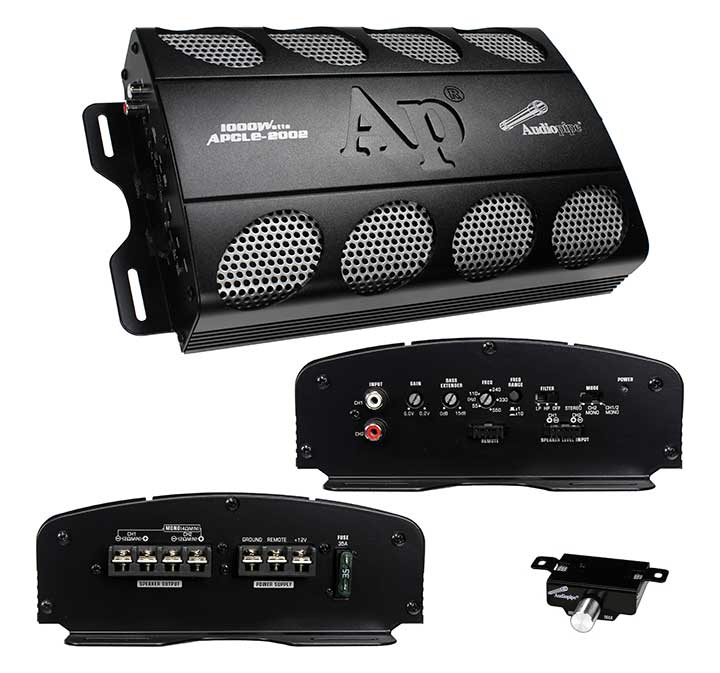

Audiopipe APCLE-2002 2-Channel 250W RMS Consumer Series Class AB Amplifier


SKU: APCLE-2002Categories: Amplifiers, Car Audio

  • 1000 Watts Max Power
  • Pulse Width Modulated MOSFET Power supply
  • Double side FR-4 PCB with high quality SMD components
  • Oversized toroids for excellent current and voltage control
  • 3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
  • Multi-channel operation and bridging for 2-channel / 1-channel (Bridged)
  • 2 ohm stereo stable and 4 ohm bridged stable
  • Variable Low Pass filters allow you to adjust the playback frequencies from 55Hz to 5.5kHz at 12dB per octave
  • Variable High Pass filters allow you to adjust the playback frequencies from 55Hz to 5.5kHz at 12dB per octave
  • 2 channel RCA inputs accepts up to 6 volt input signals (Built in ground loop isolation)
  • 2 channel Speaker-level inputs accepts up to 20 volt input signals
  • Soft-start remote turn on to prevent speaker pops
  • 0° and 180° phase control
  • Variable Bass boost controls: 0 - +15dB at 45Hz
  • Platinum plated terminals for all connections
  • Accepts up to 16 volts DC input for maximum sound output
  • Frequency Response: 20Hz to 20 kHz
  • Total Harmonic Distortion (4 Ω): < 0.05% (1kHz)
  • Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >95dB
  • Dimensions: 10-1/4" (W) x 2-1/8" (H) x 7" (D)
  • Minimum 8 Gauge power wire with 35 amp fuse
  • RMS Power Rating:
  • 4 ohms: 100 watts x 2 channels
  • 2 ohms: 125 watts x 2 channels
  • 4 ohms: 300 watts x 1 channel (Bridged)
