Description

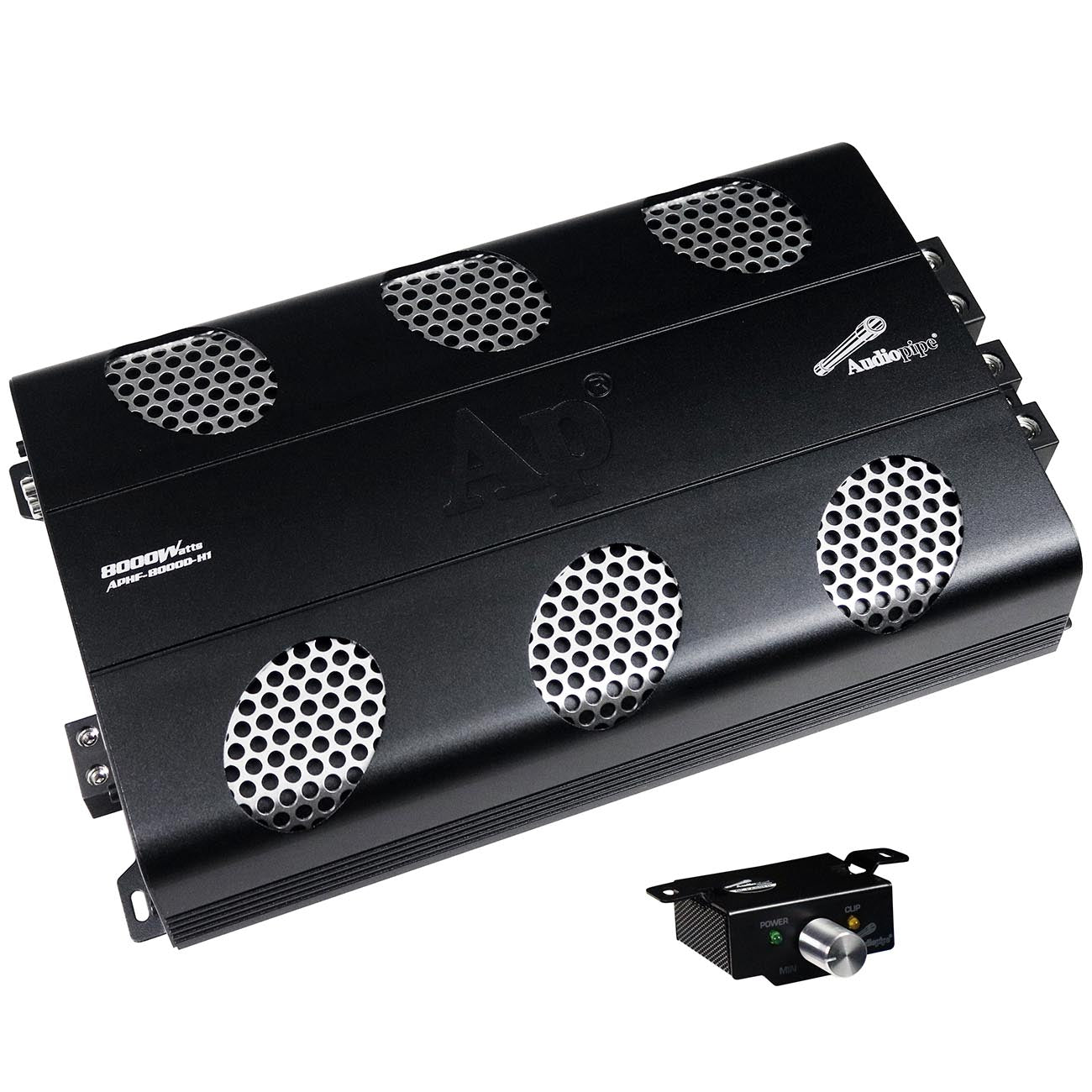

Audiopipe APHF-8000D-H1 High Frequency Mono Block Amplifier – 8000W RMS, 1Ω Stable Full-Range
The Audiopipe APHF-8000D-H1 is a professional competition-grade amplifier designed for the most demanding audio environments. Utilizing high-efficiency "Brazilian Style" Full Bridge Class D technology, this massive mono block delivers a staggering 8000 Watts RMS at 1-ohm with a relatively compact footprint. Unlike traditional mono amplifiers, the APHF-8000D-H1 is a full-range specialist with a frequency response spanning from 10Hz all the way to 20kHz. This allows it to power massive arrays of pro-audio speakers, high-frequency compression drivers, or competition-level subwoofers with unparalleled authority. With active fan cooling, a dedicated clipping monitor, and a robust 4-point protection system, the APHF-8000D-H1 is engineered to maintain peak performance during intense, high-output sessions.
Key Features
The Audiopipe APHF-8000D-H1 is a professional competition-grade amplifier designed for the most demanding audio environments. Utilizing high-efficiency "Brazilian Style" Full Bridge Class D technology, this massive mono block delivers a staggering 8000 Watts RMS at 1-ohm with a relatively compact footprint. Unlike traditional mono amplifiers, the APHF-8000D-H1 is a full-range specialist with a frequency response spanning from 10Hz all the way to 20kHz. This allows it to power massive arrays of pro-audio speakers, high-frequency compression drivers, or competition-level subwoofers with unparalleled authority. With active fan cooling, a dedicated clipping monitor, and a robust 4-point protection system, the APHF-8000D-H1 is engineered to maintain peak performance during intense, high-output sessions.
Key Features
- Extreme 1-Ohm Optimized Output: Engineered for maximum current delivery and elite power levels
-
Power Handling (RMS @ 14.4V):
- 8000W x 1 @ 1Ω
- 4800W x 1 @ 2Ω
- 2500W x 1 @ 4Ω
- Full Bridge Class D Topology: Maximizes efficiency by utilizing the entire power supply voltage for high-output performance
- Wide Bandwidth Frequency Response: 10Hz – 20kHz, suitable for subs, mids, or highs
-
Precision Audio Tuning:
- Variable High Pass Filter: 10Hz – 80Hz (12dB/Oct)
- Variable Low Pass Filter: 80Hz – 20kHz (12dB/Oct)
- Variable Bass Boost: 0–12dB (Adjustable 35Hz – 90Hz)
- Advanced Thermal Management: Features active fan cooling and a massive aluminum heatsink to prevent thermal shutdown
- System Monitoring: Integrated LED indicators for Power, Protection, and Clipping (Distortion)
- Remote Level Control: Includes a remote bass knob with integrated Clip and Power status LEDs
- Heavy-Duty Connectivity: High-current 0-gauge power/ground inputs and 4-gauge speaker terminals
- Comprehensive Protection: Guards against thermal, short circuit, over-voltage (16V), and under-voltage (9V)
- Signal-to-Noise Ratio: ≥85dB
- Dimensions: 13.7
