Description

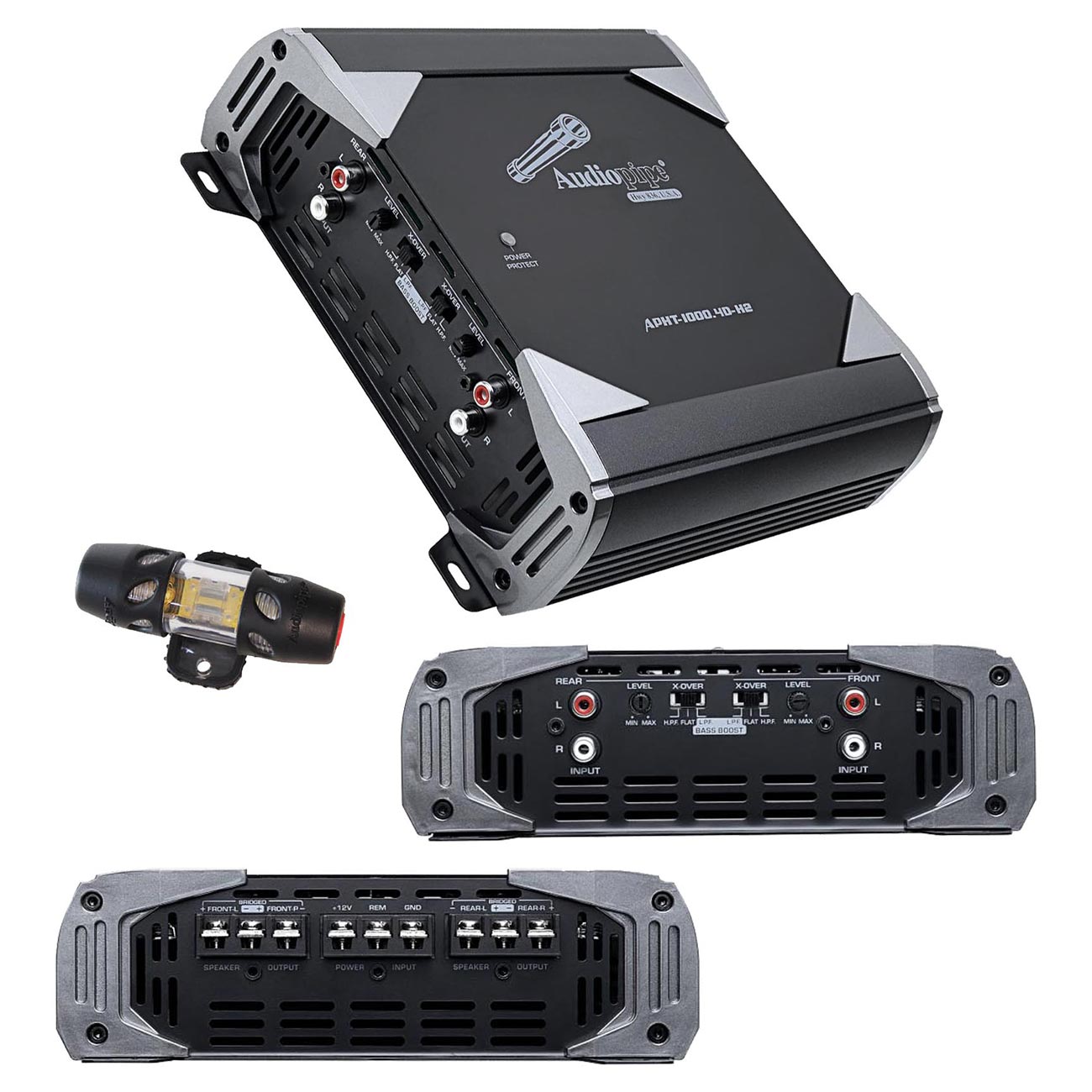

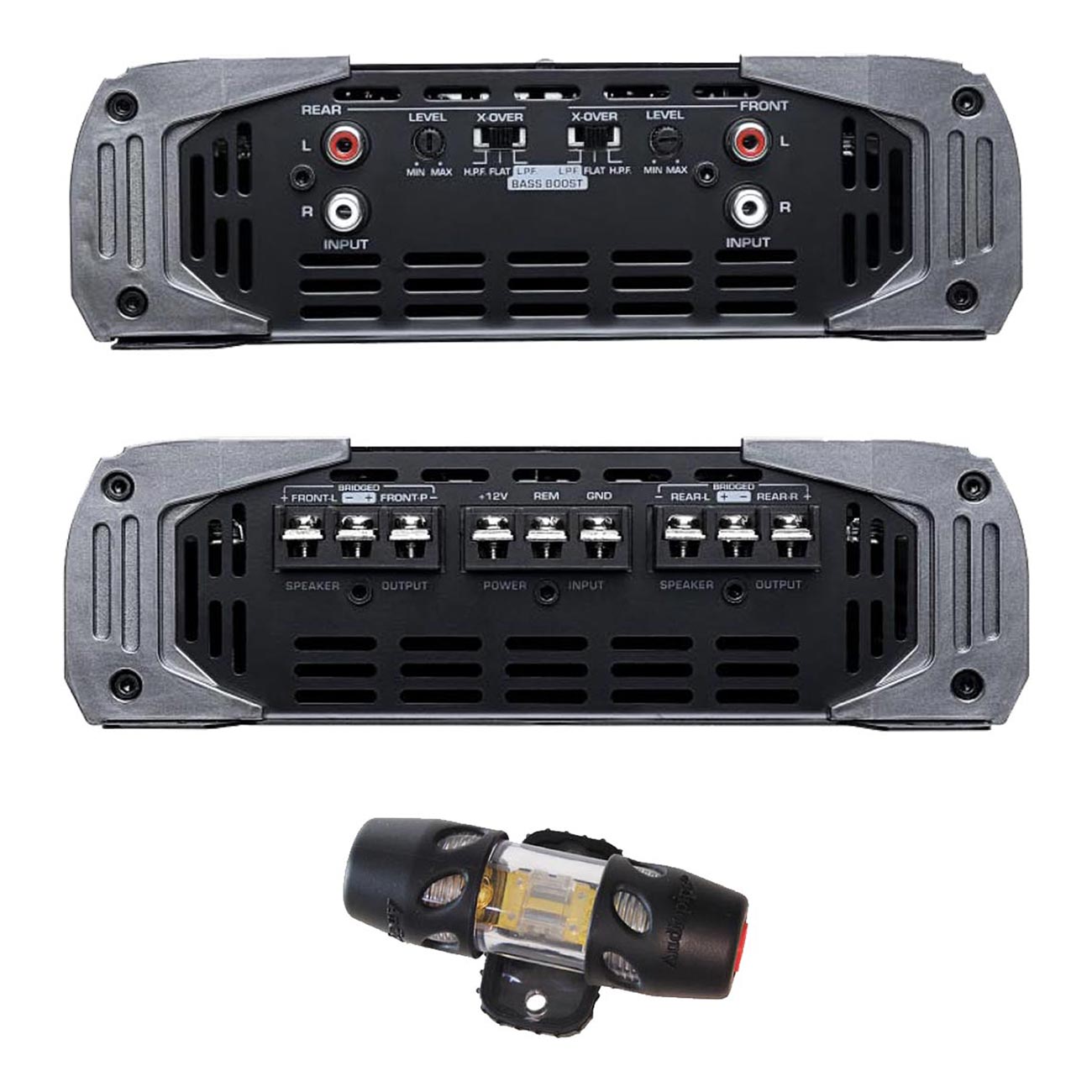

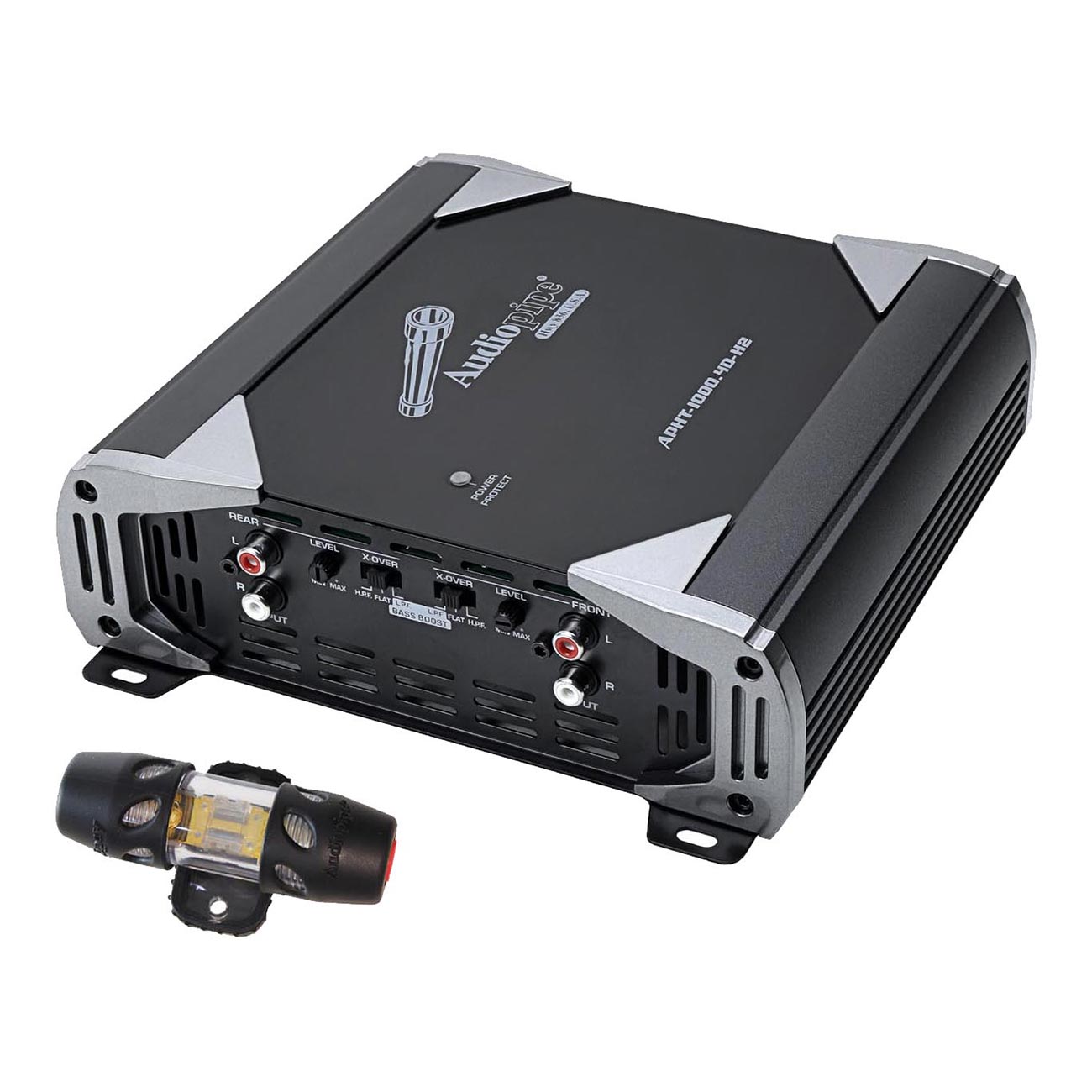

Audiopipe APHT-1000.4D-H2 4-Channel Full-Range Class D Amplifier – 2500W Max, 2Ω Stable
The Audiopipe APHT-1000.4D-H2 is a high-performance, 4-channel Class D amplifier engineered to deliver powerful, crystal-clear audio in a compact chassis. Capable of pushing up to 2500 Watts of Max power, this versatile unit is an ideal choice for powering an entire soundstage of door speakers and tweeters, or being bridged to run a mix of speakers and subwoofers. Built with advanced MOSFET transistor technology, the APHT-1000.4D-H2 maintains high electrical efficiency and thermal stability, making it perfect for tight installation spaces under seats or in trunks. With its integrated clipping indicator and flexible 90Hz crossovers, this amplifier ensures your system stays "Loud and Clear" without the risk of distortion.
Key Features
The Audiopipe APHT-1000.4D-H2 is a high-performance, 4-channel Class D amplifier engineered to deliver powerful, crystal-clear audio in a compact chassis. Capable of pushing up to 2500 Watts of Max power, this versatile unit is an ideal choice for powering an entire soundstage of door speakers and tweeters, or being bridged to run a mix of speakers and subwoofers. Built with advanced MOSFET transistor technology, the APHT-1000.4D-H2 maintains high electrical efficiency and thermal stability, making it perfect for tight installation spaces under seats or in trunks. With its integrated clipping indicator and flexible 90Hz crossovers, this amplifier ensures your system stays "Loud and Clear" without the risk of distortion.
Key Features
- High-Output 4-Channel Design: Perfect for driving four full-range speakers or a bridged 3-channel setup (2 speakers + 1 sub)
-
Power Handling (RMS @ 14.4V):
- 230W x 4 @ 2Ω
- 140W x 4 @ 4Ω
- 460W x 2 Bridged @ 4Ω
- Full-Range Class D Technology: High efficiency and minimal heat generation in a space-saving footprint
-
Audio Precision & Tuning:
- Variable High Pass Filter: Fixed 90Hz @ 12dB/Octave
- Variable Low Pass Filter: Fixed 90Hz @ 12dB/Octave
- Selectable Bass Boost: 0–12dB @ 55Hz
- System Safety: Integrated LED indicators for Power, Protection, and Clipping (Distortion monitoring)
- Heavy-Duty Terminals: Pro-grade power and speaker connectors for secure, high-current transfer
- 4-Point Protection Circuitry: Thermal, short circuit, over-voltage (16V), and under-voltage (9V) protection
- Installation Ready: Includes a 60A ANL fuse and high-quality fuse holder
- Frequency Response: 20Hz – 20kHz
- Signal-to-Noise Ratio: >85dB
- Dimensions: 8.3" L x 7.9" W x 2.4" H
