Description
Audiopipe APMQ-2004 APMQ Series Mini 4-Channel Full-Range Class D Amplifier – 1600 Watts
The Audiopipe APMQ-2004 is a high-performance "Mini" 4-channel amplifier that brings massive Class D power to your vehicle's mid-range and high-frequency speakers. Delivering a maximum output of 1600 Watts, this amplifier is designed for audiophiles who need crystal-clear projection and high volume from a space-saving chassis. Unlike standard amplifiers, the APMQ-2004 features a specialized High Pass Filter multiplier that allows for precision tuning up to 6000Hz, making it the perfect choice for driving high-end component sets or pro-audio super tweeters. With its MOSFET power supply and integrated 3-way protection circuitry, the APMQ-2004 offers a sophisticated balance of raw power, surgical accuracy, and long-term reliability for any custom audio build.
Key Features
The Audiopipe APMQ-2004 is a high-performance "Mini" 4-channel amplifier that brings massive Class D power to your vehicle's mid-range and high-frequency speakers. Delivering a maximum output of 1600 Watts, this amplifier is designed for audiophiles who need crystal-clear projection and high volume from a space-saving chassis. Unlike standard amplifiers, the APMQ-2004 features a specialized High Pass Filter multiplier that allows for precision tuning up to 6000Hz, making it the perfect choice for driving high-end component sets or pro-audio super tweeters. With its MOSFET power supply and integrated 3-way protection circuitry, the APMQ-2004 offers a sophisticated balance of raw power, surgical accuracy, and long-term reliability for any custom audio build.
Key Features
- Mini Class D Architecture: High-efficiency full-range digital circuitry provides massive 1600W output while maintaining a compact, easy-to-install footprint
- High Pass Filter Multiplier: Features a unique x10 switch that extends the HPF range up to 6kHz, ideal for protecting and tuning high-frequency super tweeters
- 4-Channel Power Versatility: Delivers 330W x 4 RMS @ 2-Ohm; bridgeable to 680W x 2 @ 4-Ohm for driving high-output mid-bass or subwoofers
- Precision Frequency Control: Equipped with independent variable Low Pass (40Hz – 4kHz) and High Pass (15Hz – 600Hz) crossovers for total system customization
- High Signal-to-Noise Ratio: Boasts a >90dB S/N ratio for ultra-clean audio reproduction with minimal background noise or interference
- MOSFET Power Supply: Utilizes high-speed switching components for stable voltage delivery and improved thermal efficiency under heavy loads
- 3-Way Protection Circuitry: Sophisticated internal monitoring guards against thermal overload, short circuits, and DC offset with dedicated LED indicators

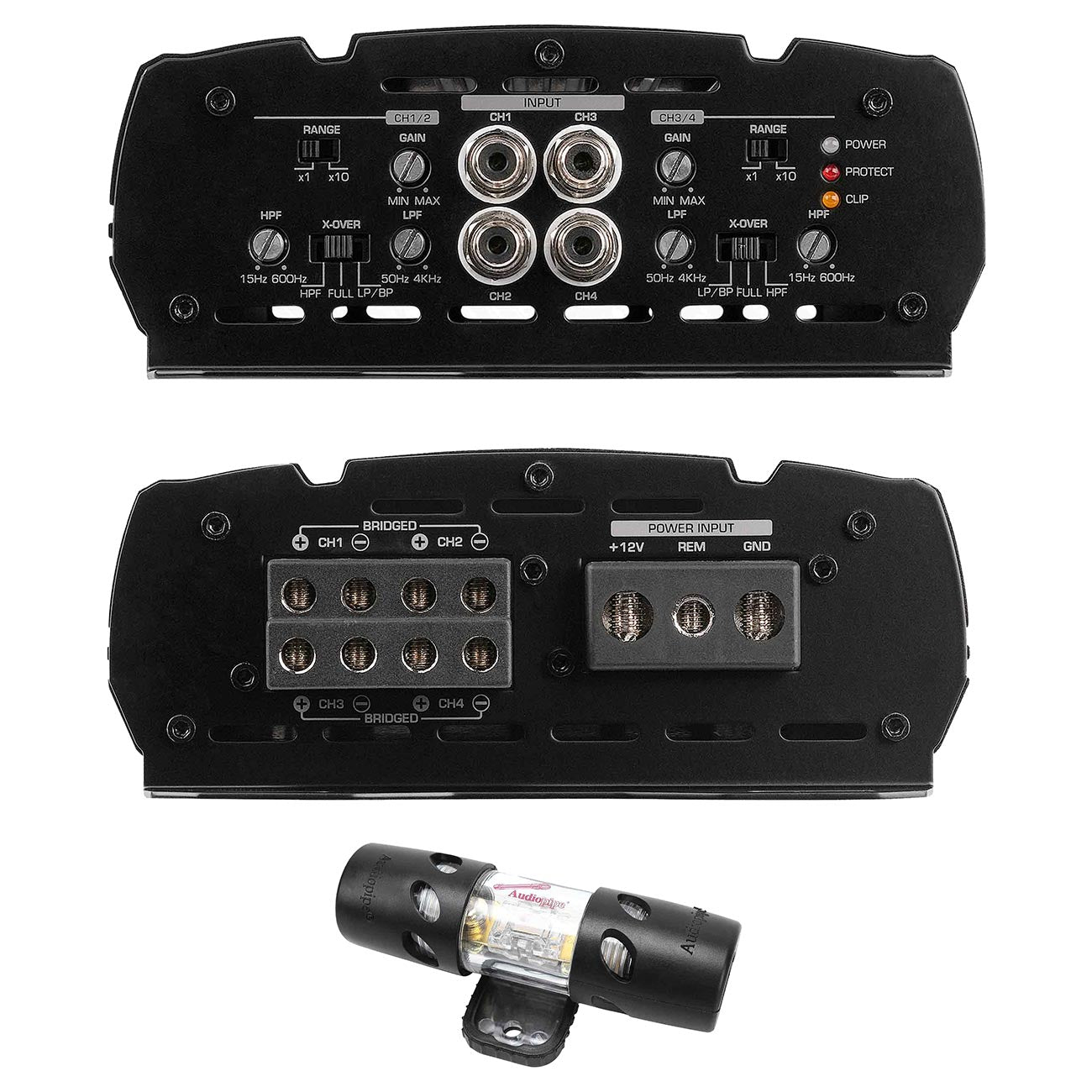

- Clipping & Status LEDs: Features integrated LED indicators for Power, Protection, and Clipping to help you maintain a distortion-free signal
- Included 80A Fuse Holder: Comes complete with an external high-quality inline fuse and holder to ensure maximum electrical safety for your vehicle
- 1600 Watts Max Power
- RMS Power: 4 x 330W @ 2-Ohm / 4 x 220W @ 4-Ohm
- Dimensions: 16.4" L x 6.3" W x 2.3" H
