Description

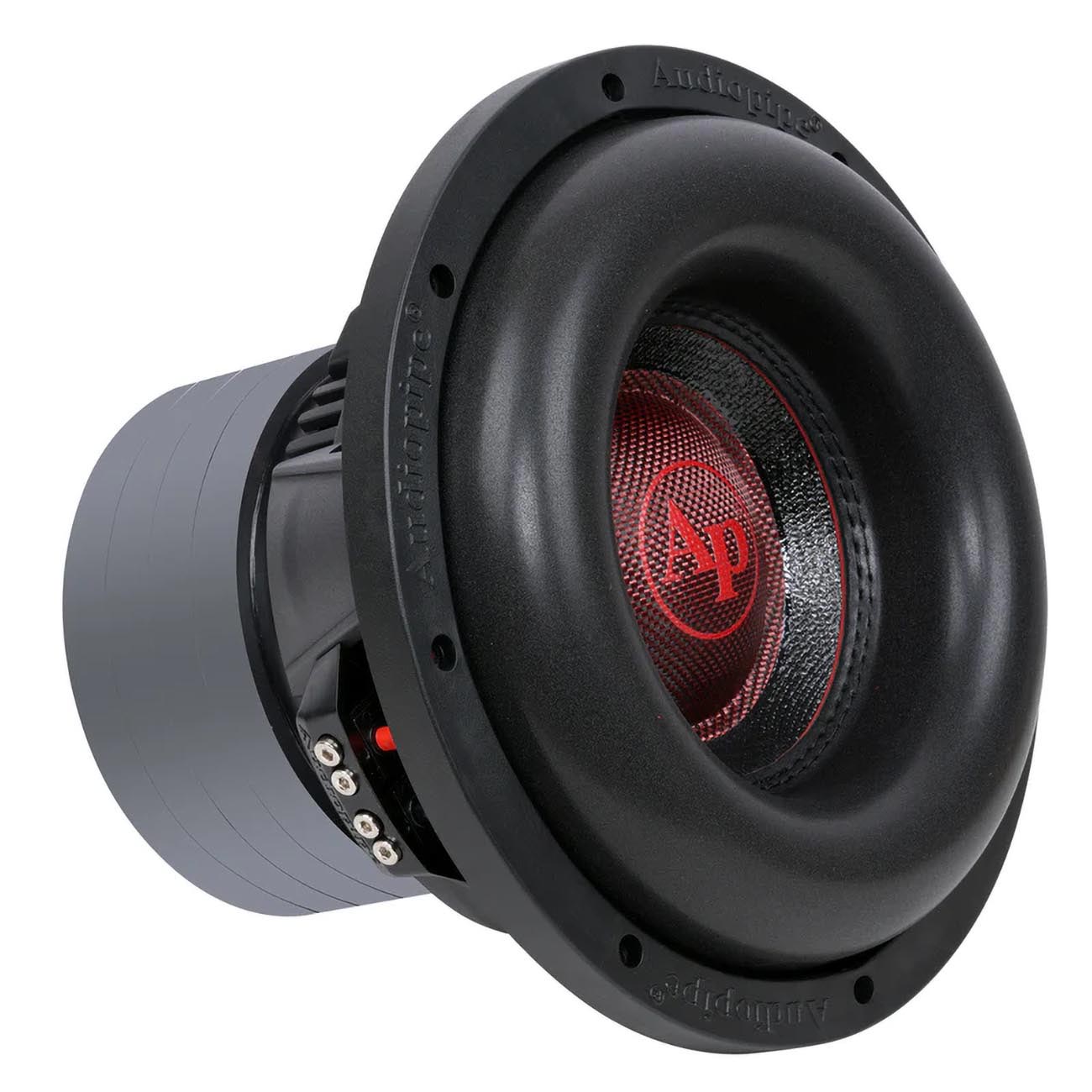

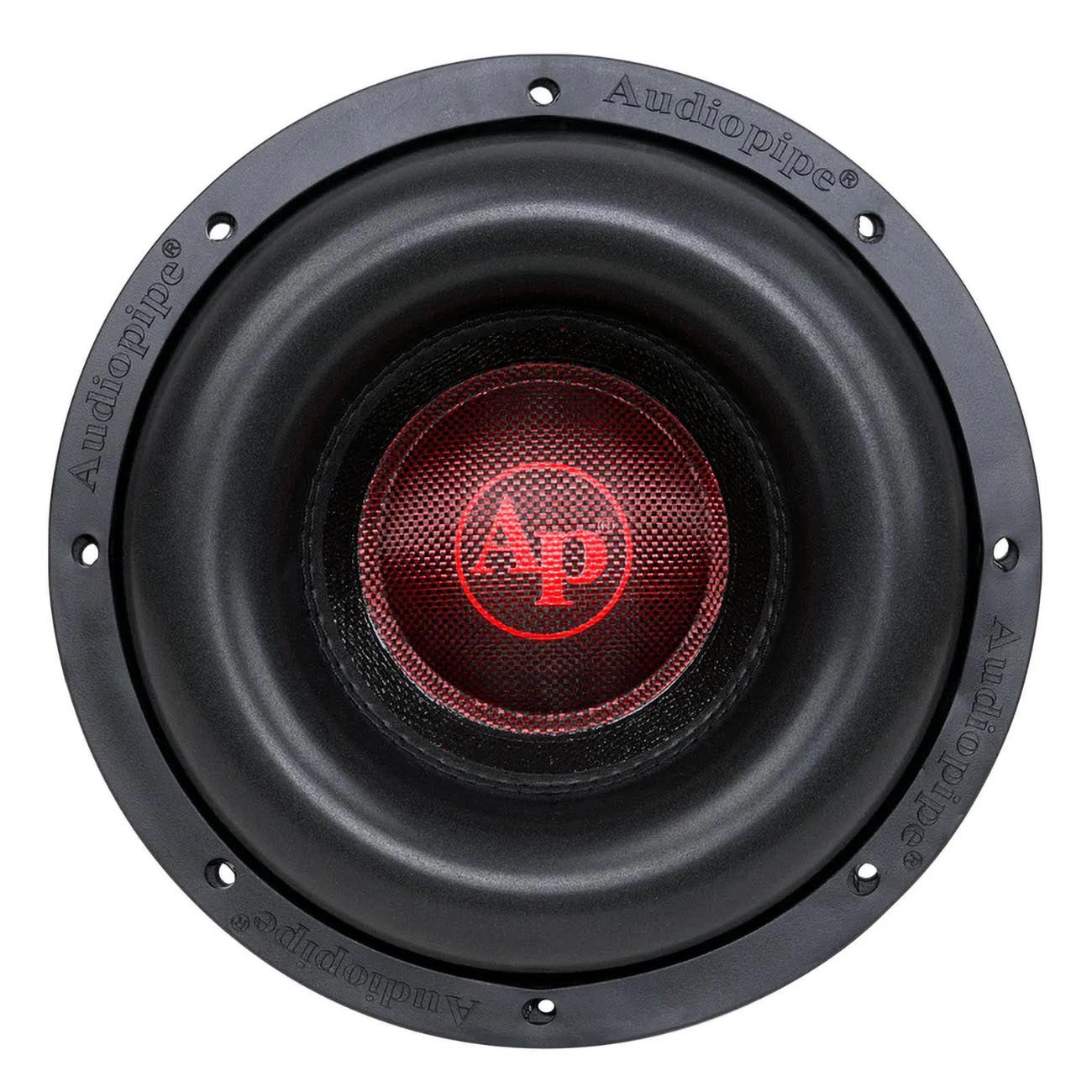

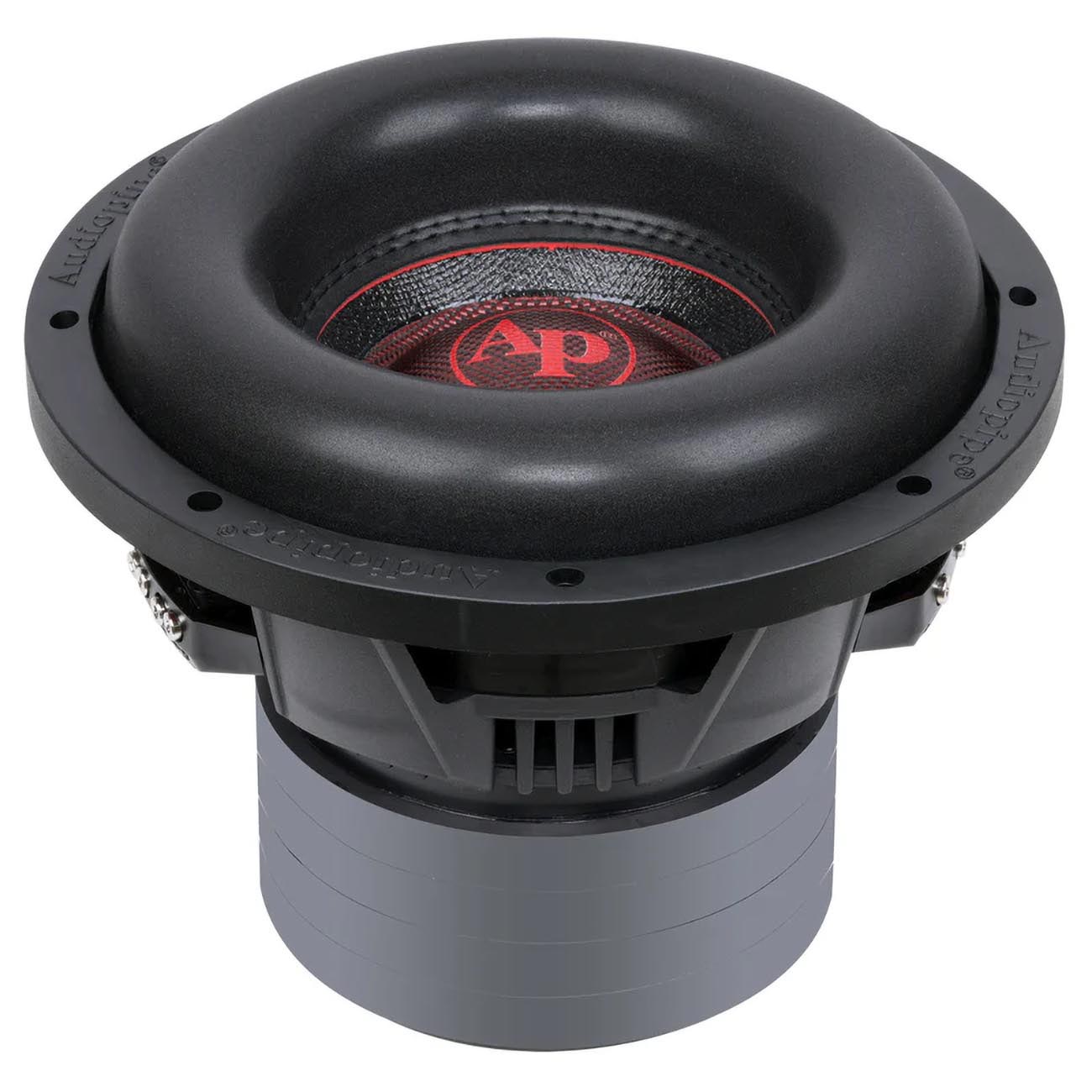

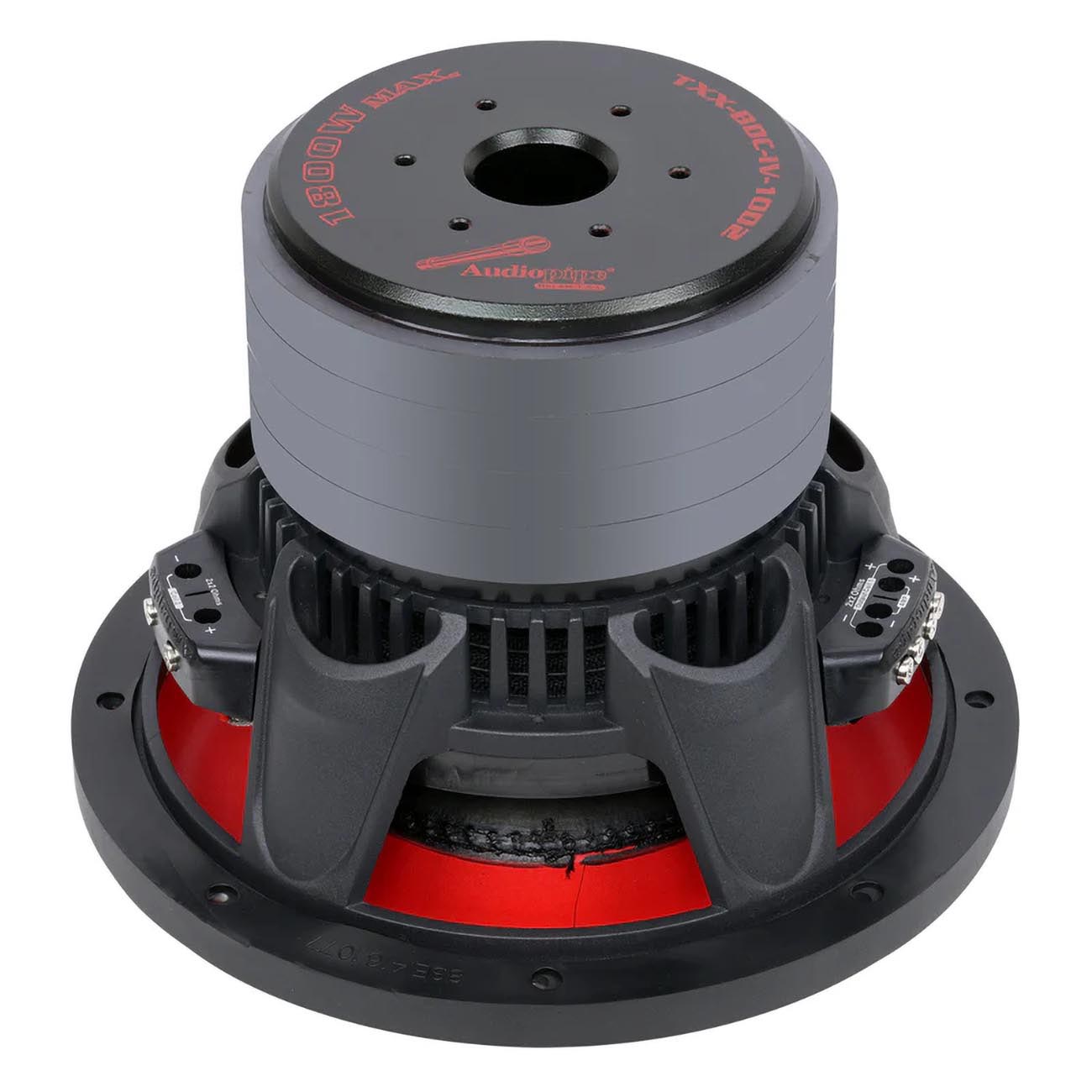

Audiopipe TXX-BDC-IV-10D2 10" Quad Stacked Composite Cone Subwoofer – 1800W Max, Dual 2-Ohm
The Audiopipe TXX-BDC-IV-10D2 is a high-excursion 10-inch subwoofer designed for extreme SPL performance and high-wattage daily use. As part of the Quad Stack (IV) series, this driver features a massive 170 oz motor structure and a heavy-duty powder-coated aluminum basket, allowing it to handle a staggering 900 Watts RMS. The TXX-BDC-IV-10D2 is equipped with a Kevlar fiber composite non-press paper cone and quad-weaved tinsel leads to ensure structural integrity during intense vibration. With its Dual 2-Ohm configuration and patented multi-connect terminals, this subwoofer offers the wiring flexibility and raw power needed to anchor a competition-grade audio system in a compact 10-inch footprint.
Product Specifications
The Audiopipe TXX-BDC-IV-10D2 is a high-excursion 10-inch subwoofer designed for extreme SPL performance and high-wattage daily use. As part of the Quad Stack (IV) series, this driver features a massive 170 oz motor structure and a heavy-duty powder-coated aluminum basket, allowing it to handle a staggering 900 Watts RMS. The TXX-BDC-IV-10D2 is equipped with a Kevlar fiber composite non-press paper cone and quad-weaved tinsel leads to ensure structural integrity during intense vibration. With its Dual 2-Ohm configuration and patented multi-connect terminals, this subwoofer offers the wiring flexibility and raw power needed to anchor a competition-grade audio system in a compact 10-inch footprint.
Product Specifications
- SUPERIOR PERFORMANCE: The TXX-BDC-IV-10D2 was designed and engineered with 4 magnets for massive power handling and increased voice coil ventilation for ultimate performance and endurance.
- PEAK POWER: 1800 Watts | RMS POWER: 900 Watts
- MAGNET: Boasting 4 magnets for extreme motor strength, 170 Oz
- FREQUENCY RESPONSE: 30-1,300Hz
- SENSITIVITY: 85dB
- VOICE COIL: The TXX-BDC-IV-10D2 has a dual 2 ohm 2.5 inch 4-layer high temperature black aluminum (BASV) voice coil, engineered with improved ventilation for substantial endurance.
- ALUMINUM BASKET: Features a newly designed powdered black paint aluminum die-cast basket with a strongly constructed dust-proof heat sink to deliver optimal sound quality and cooling.
- QUAD WEAVED TINSEL LEADS: Crafted with progressive weaved tinsel leads on each side of the subwoofer, ensuring optimal signal transfer and long-term durability.
- PATENT PIPE MULTI-CONNECT TERMINALS: Audiopipe's reliable and convenient patent pipe terminals allow for easy wiring of your subwoofer in either parallel or series configurations and accept up to 8 gauge wire.
- KEVLAR FIBER COMPOSITE NON-PRESS PAPER CONE: The Kevlar-reinforced non-press paper cone with a textured finish is designed to maximize rigidity while maintaining a lightweight profile for faster response.
- MOUNTING DEPTH: 175mm (6-7/8”)
- IMPEDANCE: 2 x 2 Ohms
