Description

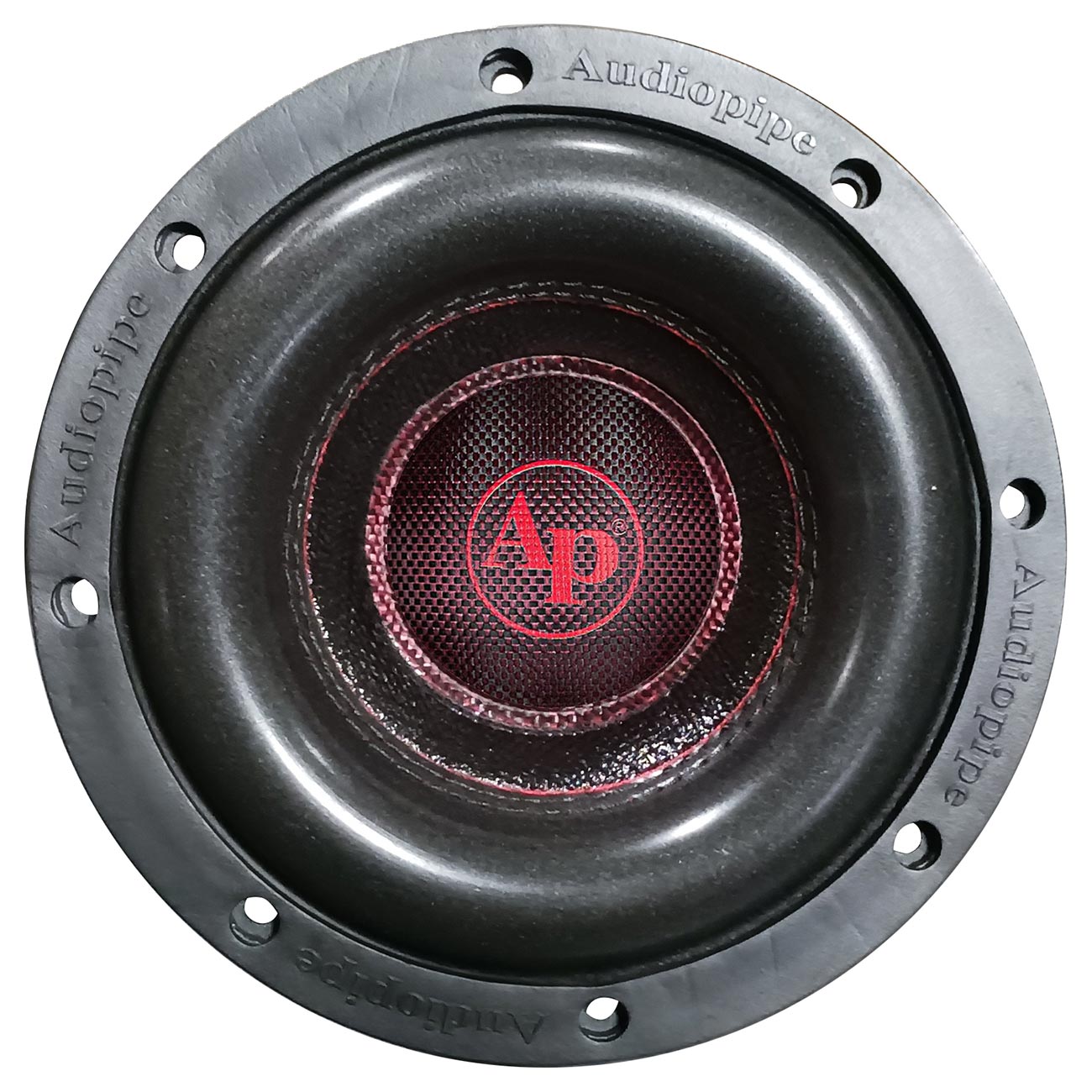

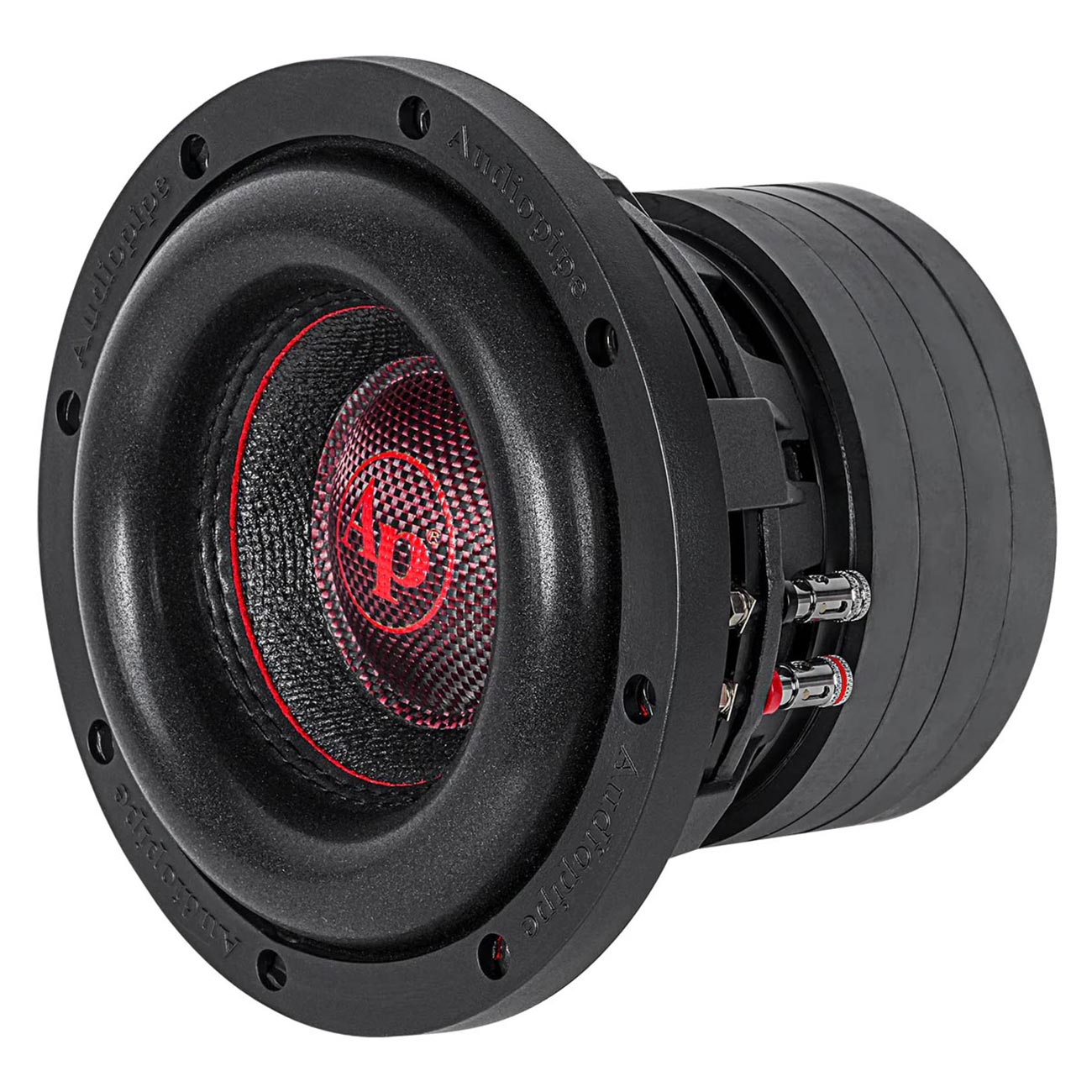

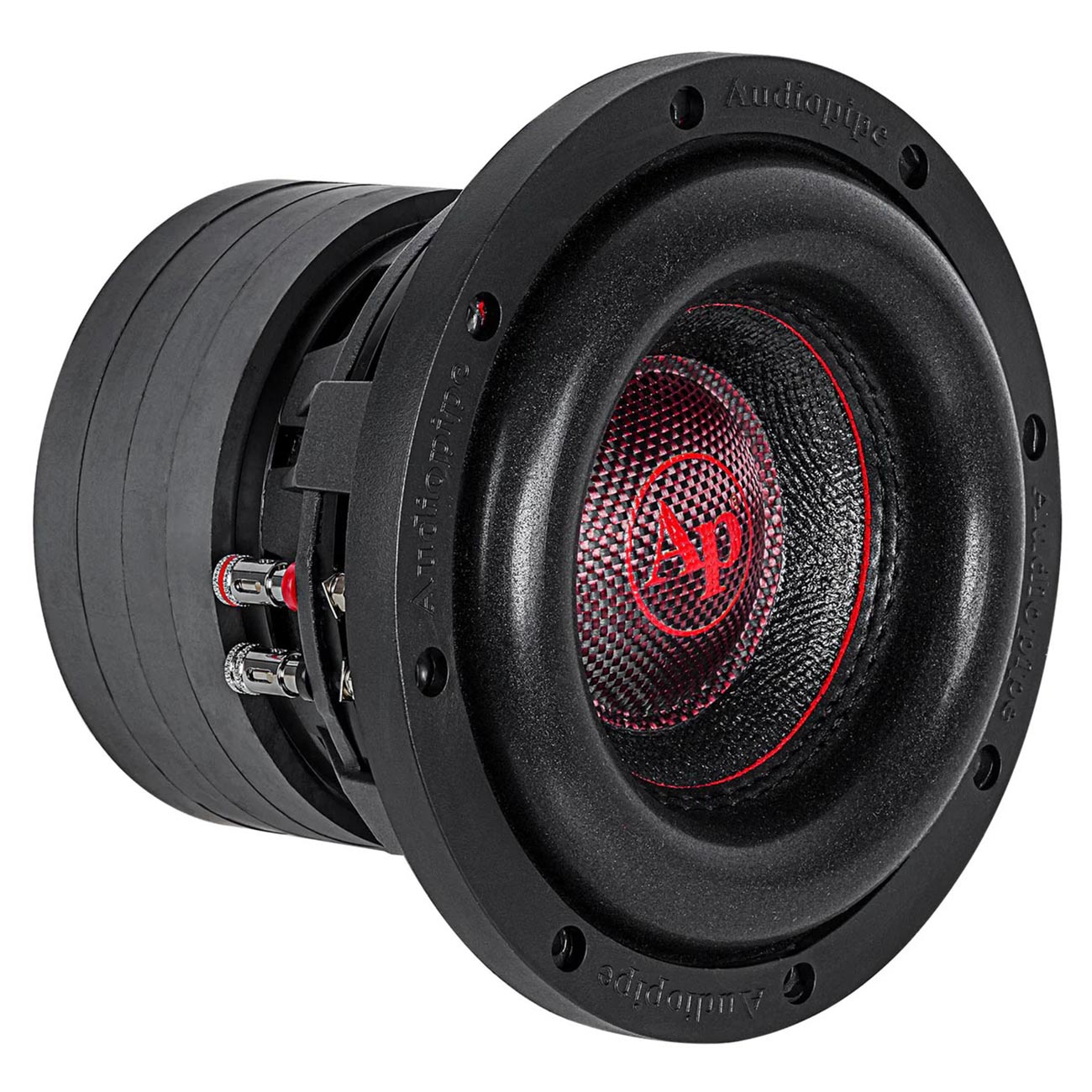

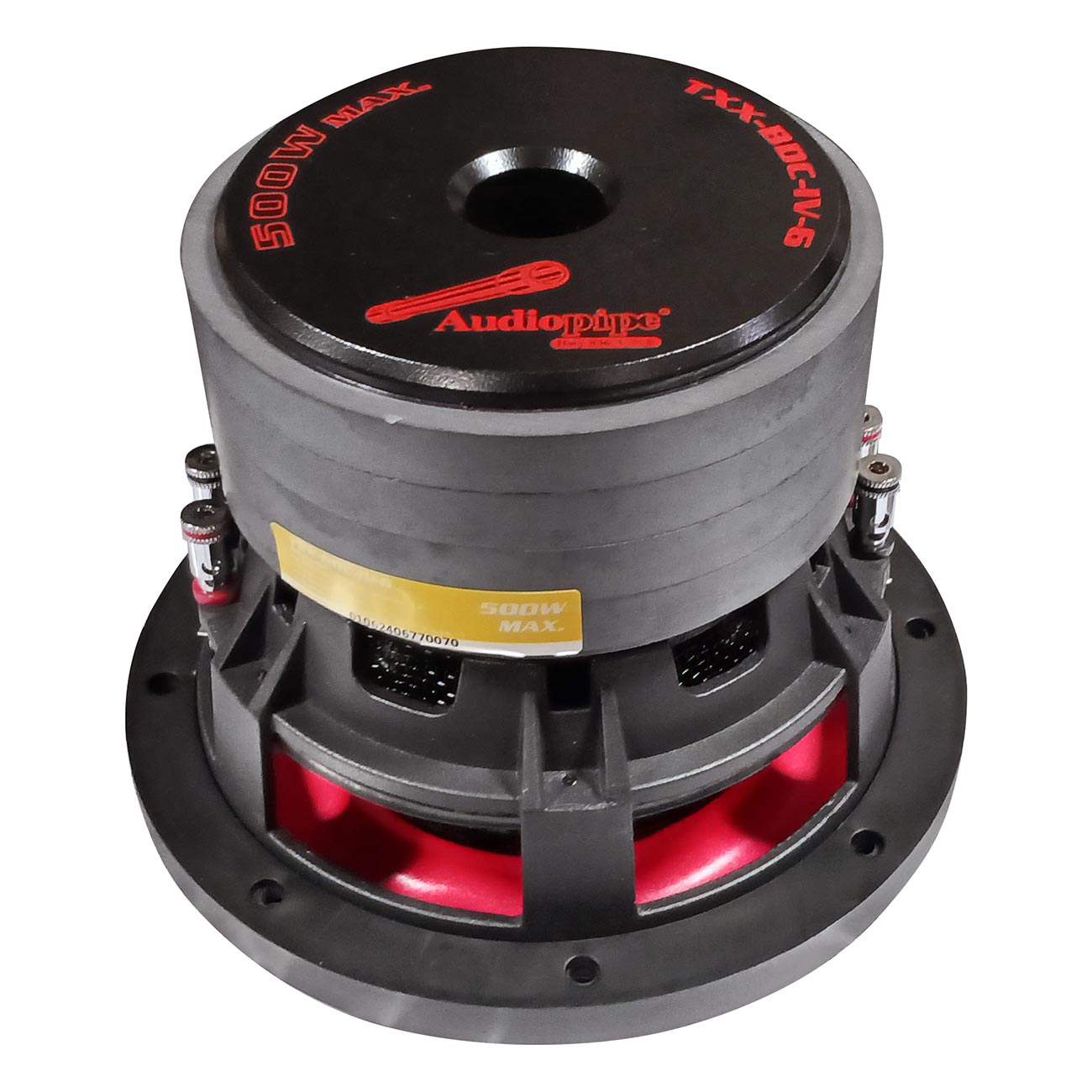

Audiopipe TXX-BDC-IV-6 6.5" Quad Stacked Composite Cone Subwoofer – 500W Max, Dual 4-Ohm
The Audiopipe TXX-BDC-IV-6 is a compact 6.5-inch high-performance subwoofer engineered to deliver surprising low-end extension and power handling in space-limited environments. Despite its small diameter, this Quad Stack (IV) series woofer is a true powerhouse, featuring a heavy-duty motor structure and a 1.5-inch 4-layer high-temperature BASV voice coil. Built with a Kevlar-reinforced composite non-press paper cone and a durable rubber surround, the TXX-BDC-IV-6 is capable of handling 250 Watts RMS with ease. Equipped with Audiopipe’s patented multi-connect terminals, this 6.5" sub is the perfect solution for custom under-seat enclosures, motorcycle bags, or any application where high-output bass is required in a minimal footprint.
Product Specifications
The Audiopipe TXX-BDC-IV-6 is a compact 6.5-inch high-performance subwoofer engineered to deliver surprising low-end extension and power handling in space-limited environments. Despite its small diameter, this Quad Stack (IV) series woofer is a true powerhouse, featuring a heavy-duty motor structure and a 1.5-inch 4-layer high-temperature BASV voice coil. Built with a Kevlar-reinforced composite non-press paper cone and a durable rubber surround, the TXX-BDC-IV-6 is capable of handling 250 Watts RMS with ease. Equipped with Audiopipe’s patented multi-connect terminals, this 6.5" sub is the perfect solution for custom under-seat enclosures, motorcycle bags, or any application where high-output bass is required in a minimal footprint.
Product Specifications
- SUPERIOR PERFORMANCE: The TXX-BDC-IV-6 was designed and engineered with a quad-stacked motor for strong power handling and increased voice coil ventilation for ultimate performance and endurance.
- PEAK POWER: 500 Watts | RMS POWER: 250 Watts
- MAGNET: Boasting a quad-stacked motor structure for high flux density, 80 Oz
- FREQUENCY RESPONSE: 45-2,500Hz
- SENSITIVITY: 82dB
- VOICE COIL: The TXX-BDC-IV-6 has a dual 4 ohm 1.5 inch 4-layer high temperature black aluminum (BASV) voice coil, engineered with improved ventilation for substantial endurance.
- ALUMINUM BASKET: Features a powdered black paint aluminum die-cast basket designed to deliver optimal structural rigidity and heat dissipation.
- QUAD WEAVED TINSEL LEADS: Crafted with progressive weaved tinsel leads on each side of the subwoofer, ensuring optimal signal transfer and long-term durability.
- PATENT PIPE MULTI-CONNECT TERMINALS: Audiopipe's reliable and convenient patent pipe terminals allow for easy wiring of your subwoofer in either parallel or series configurations.
- KEVLAR FIBER COMPOSITE NON-PRESS PAPER CONE: The Kevlar-reinforced non-press paper cone with a textured finish is designed to maximize rigidity while maintaining the speed and accuracy required for a smaller driver.
- MOUNTING DEPTH: 110mm (4-3/8”)
- IMPEDANCE: 2 x 4 Ohms
