Description

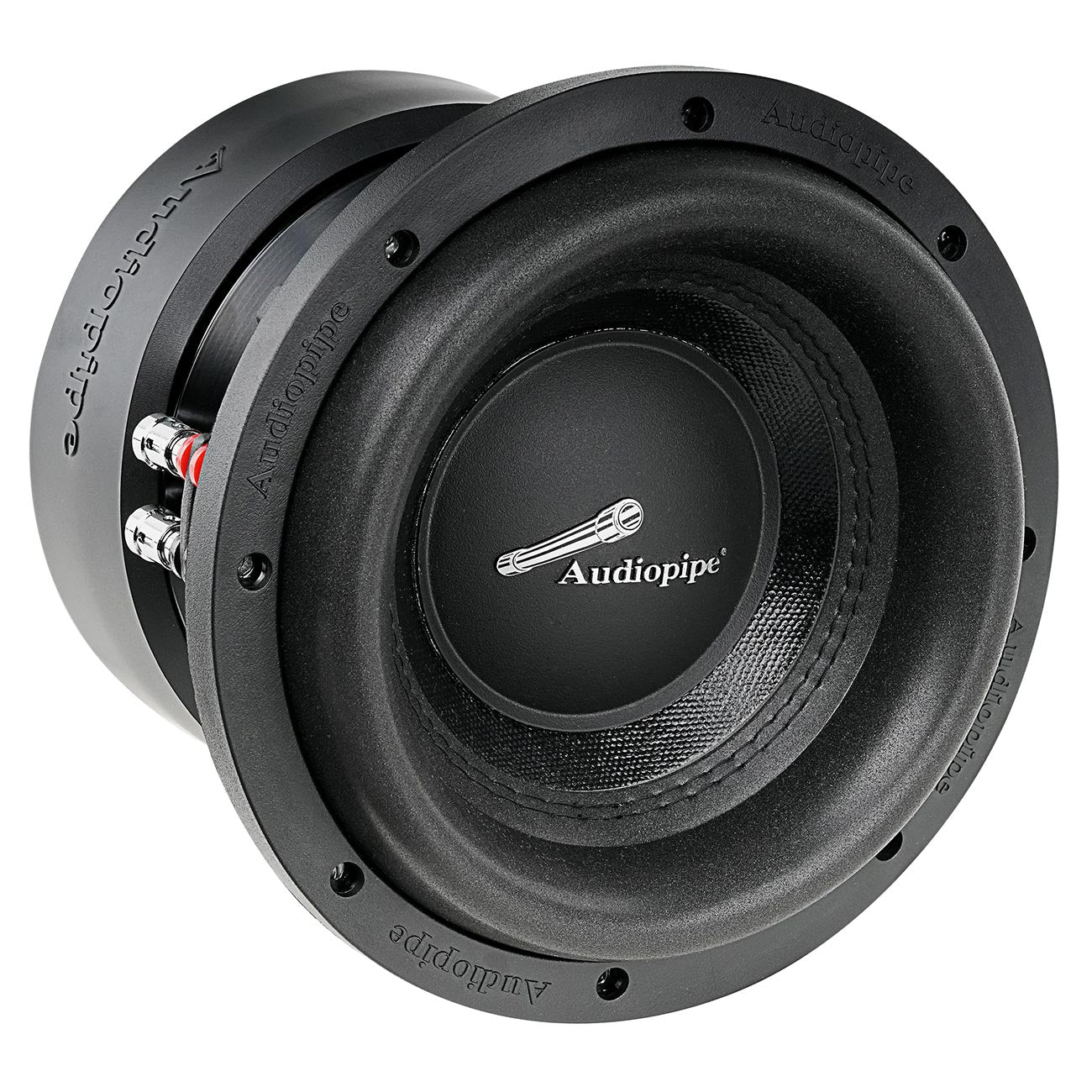

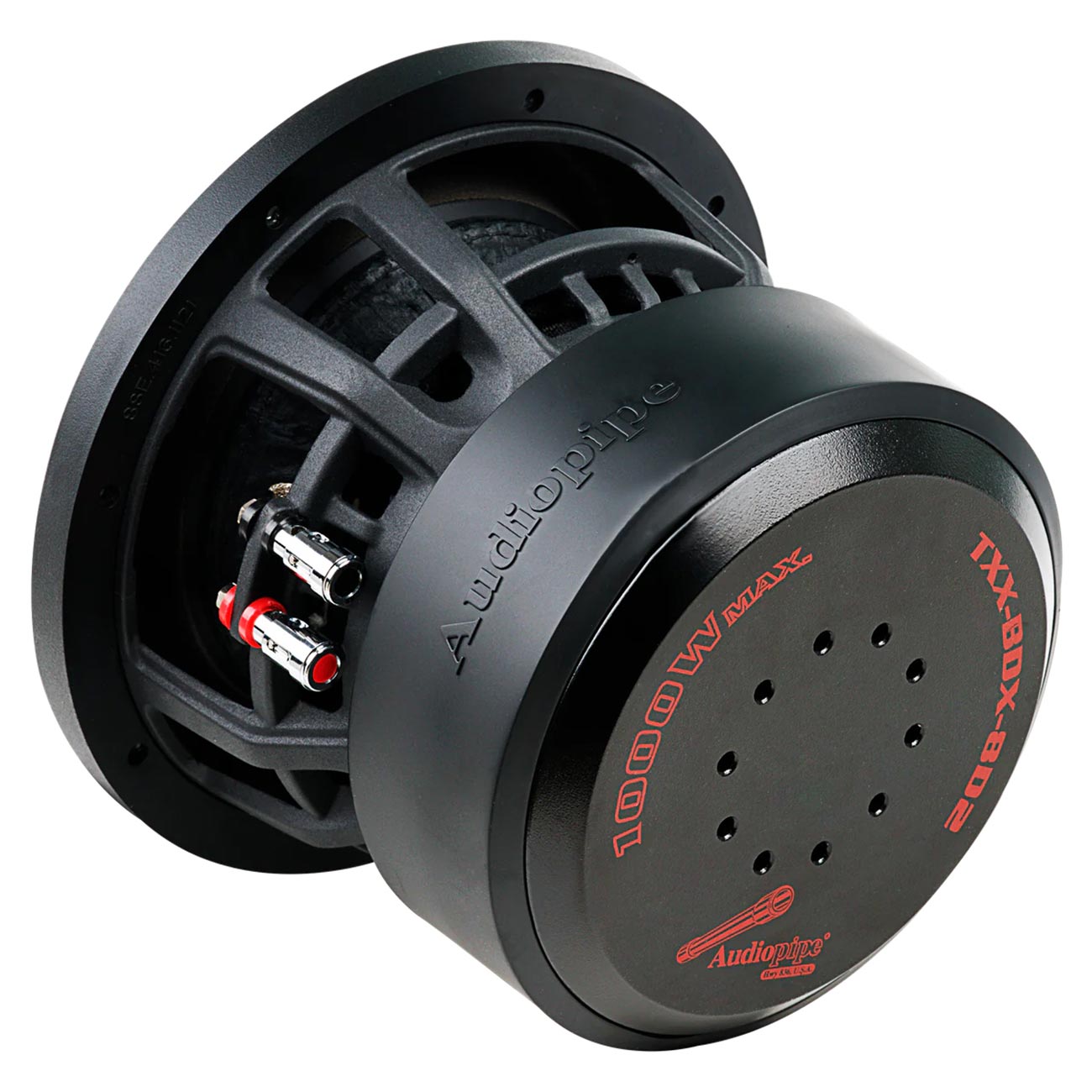

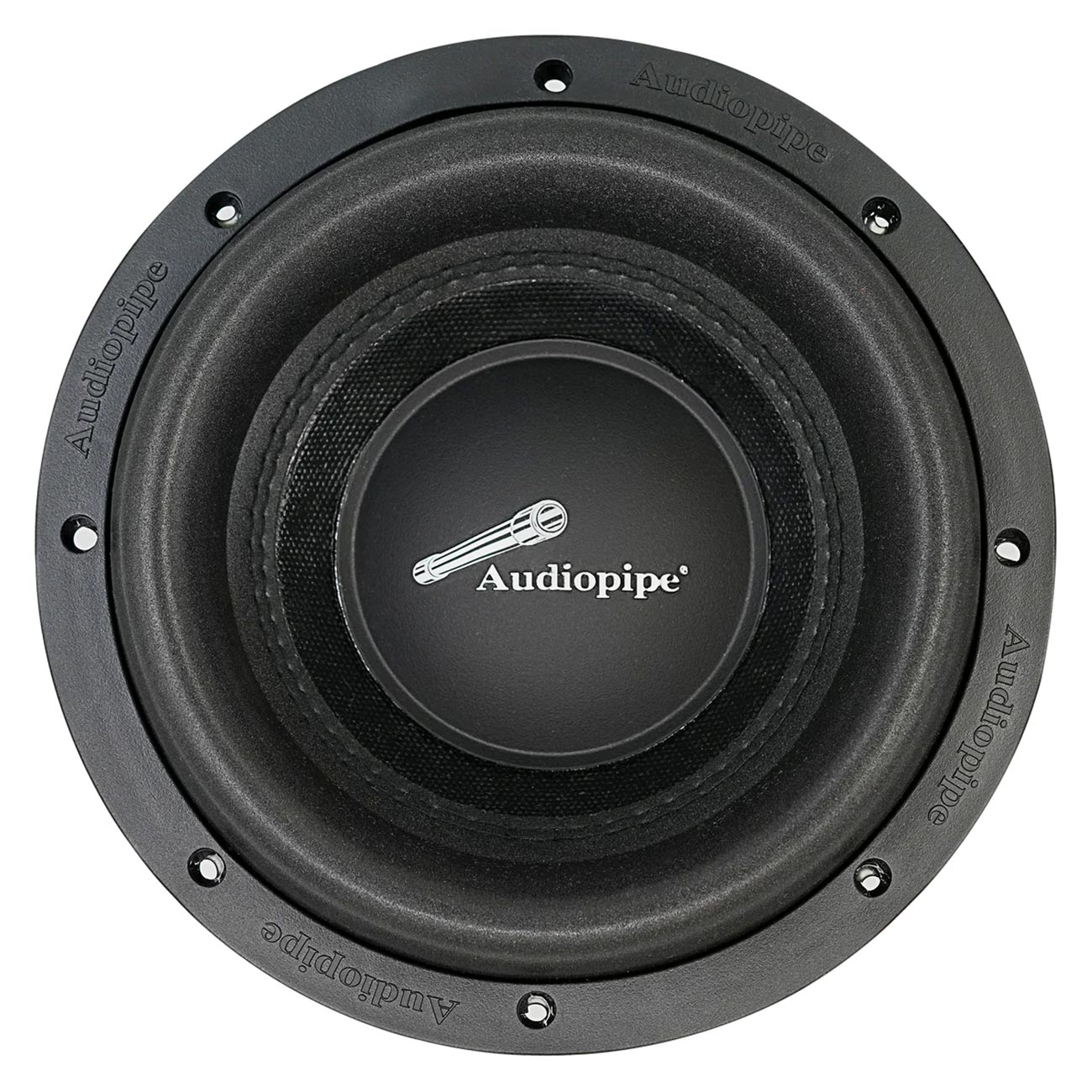

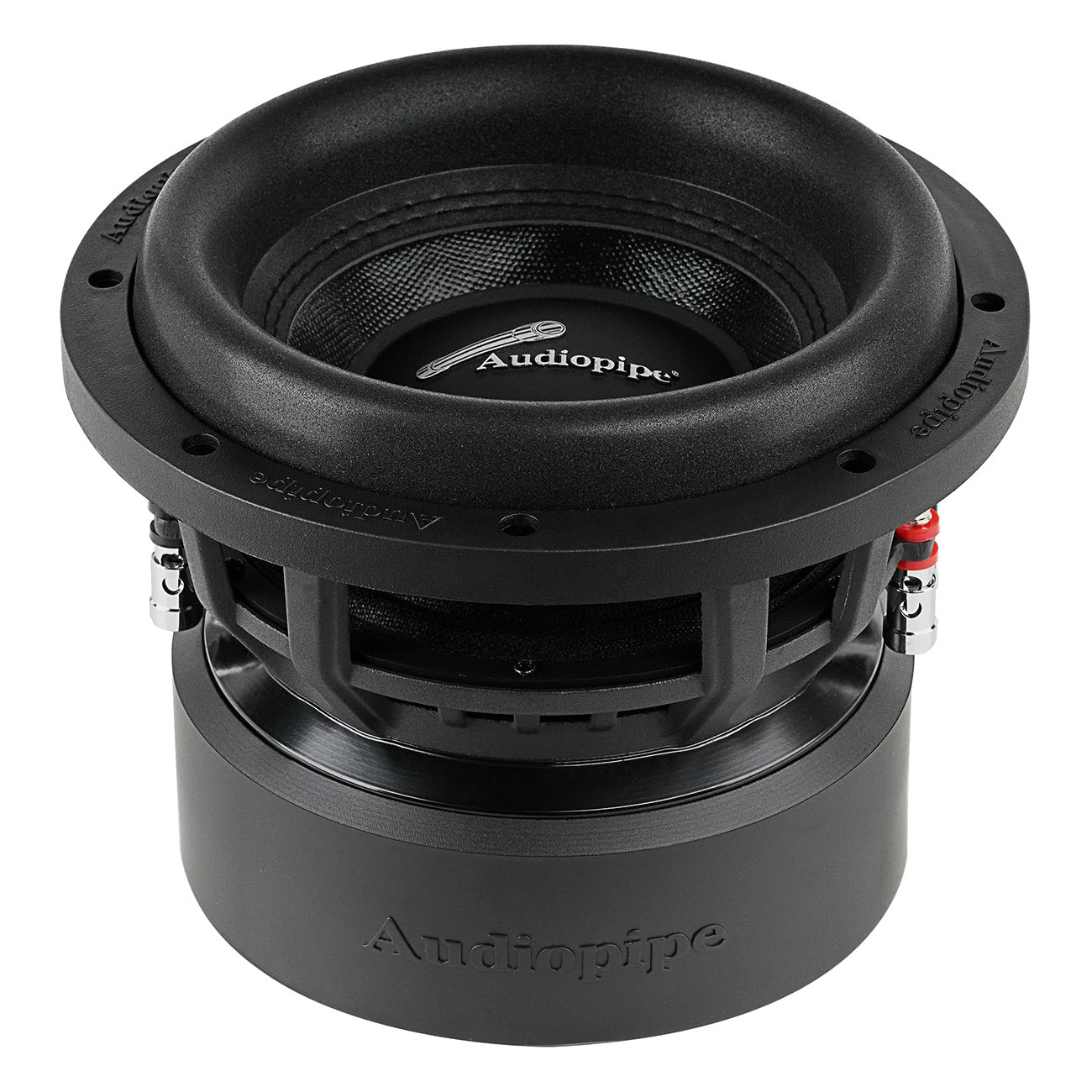

Audiopipe TXX-BDX-8D2 8" Double Stacked Competition Subwoofer – 1000W Max, Dual 2-Ohm
The Audiopipe TXX-BDX-8D2 is a compact yet vicious 8-inch competition-grade subwoofer, engineered to deliver massive bass from limited-space enclosures. While smaller in footprint, it retains the heavy-duty DNA of Audiopipe's flagship BDX series, featuring a robust 150-ounce double-stacked motor structure and a 2-inch, 4-layer BASV voice coil. Rated to handle a highly conservative 500 Watts RMS, this 8-inch powerhouse utilizes a newly designed die-cast aluminum basket and a dust-proof heat sink for optimal thermal dissipation. Complete with the signature BDX sand-blasted non-press paper cone, an ultra-stiff IMPP dust cap, and a heavy-duty black stitched surround, the TXX-BDX-8D2 guarantees destructive excursion and structural reliability. Featuring a Dual 2-Ohm configuration, this sub allows for a straightforward 1-Ohm wiring solution when you want maximum power extraction in a space-saving single-sub build.
Product Specifications
The Audiopipe TXX-BDX-8D2 is a compact yet vicious 8-inch competition-grade subwoofer, engineered to deliver massive bass from limited-space enclosures. While smaller in footprint, it retains the heavy-duty DNA of Audiopipe's flagship BDX series, featuring a robust 150-ounce double-stacked motor structure and a 2-inch, 4-layer BASV voice coil. Rated to handle a highly conservative 500 Watts RMS, this 8-inch powerhouse utilizes a newly designed die-cast aluminum basket and a dust-proof heat sink for optimal thermal dissipation. Complete with the signature BDX sand-blasted non-press paper cone, an ultra-stiff IMPP dust cap, and a heavy-duty black stitched surround, the TXX-BDX-8D2 guarantees destructive excursion and structural reliability. Featuring a Dual 2-Ohm configuration, this sub allows for a straightforward 1-Ohm wiring solution when you want maximum power extraction in a space-saving single-sub build.
Product Specifications
- SUPERIOR PERFORMANCE: The TXX-BDX-8D2 was designed and engineered with 2 magnets for strong power handling and increased voice coil ventilation for ultimate endurance in high-pressure environments.
- PEAK POWER: 1000 Watts | RMS POWER: 500 Watts
- MAGNET: Boasting a massive double-stacked motor structure for high magnetic flux, 150 Oz
- FREQUENCY RESPONSE: 40-2,000Hz
- SENSITIVITY: 85dB
- VOICE COIL: The TXX-BDX-8D2 features a dual 2 ohm 2-inch 4-layer high-temperature black aluminum (BASV) voice coil, engineered with improved ventilation for substantial performance and thermal stability.
- ALUMINUM BASKET: The newly designed powdered black paint aluminum die-cast basket features an ultra-stiff injection molded PP (IMPP) dust cap and a refreshed dust-proof heat sink engineered to deliver optimal sound quality.
- VENTED HOLES ON T-YOKE: Carefully designed T-yoke vents not only enhance heat dissipation to keep the motor cool, but also improve sound quality by providing superior performance with minimal distortion.
- BLACK STITCHING SURROUND: The high-roll surround features heavy-duty black stitching that physically binds it to the cone, preventing separation and ensuring a longer lifespan under extreme excursion.
- SAND-BLASTED CONE: The thick and strong Black Non-press Paper Cone utilizes a unique sand-blasted finish newly designed to drastically improve cone rigidity for high-pressure performance.
- PATENT PIPE MULTI-CONNECT TERMINALS: Audiopipe's reliable and convenient multi-connect terminals allow for secure wiring of your subwoofer in either parallel or series configurations.
- MOUNTING DEPTH: 148mm (5-7/8”)
- IMPEDANCE: 2 x 2 Ohms
