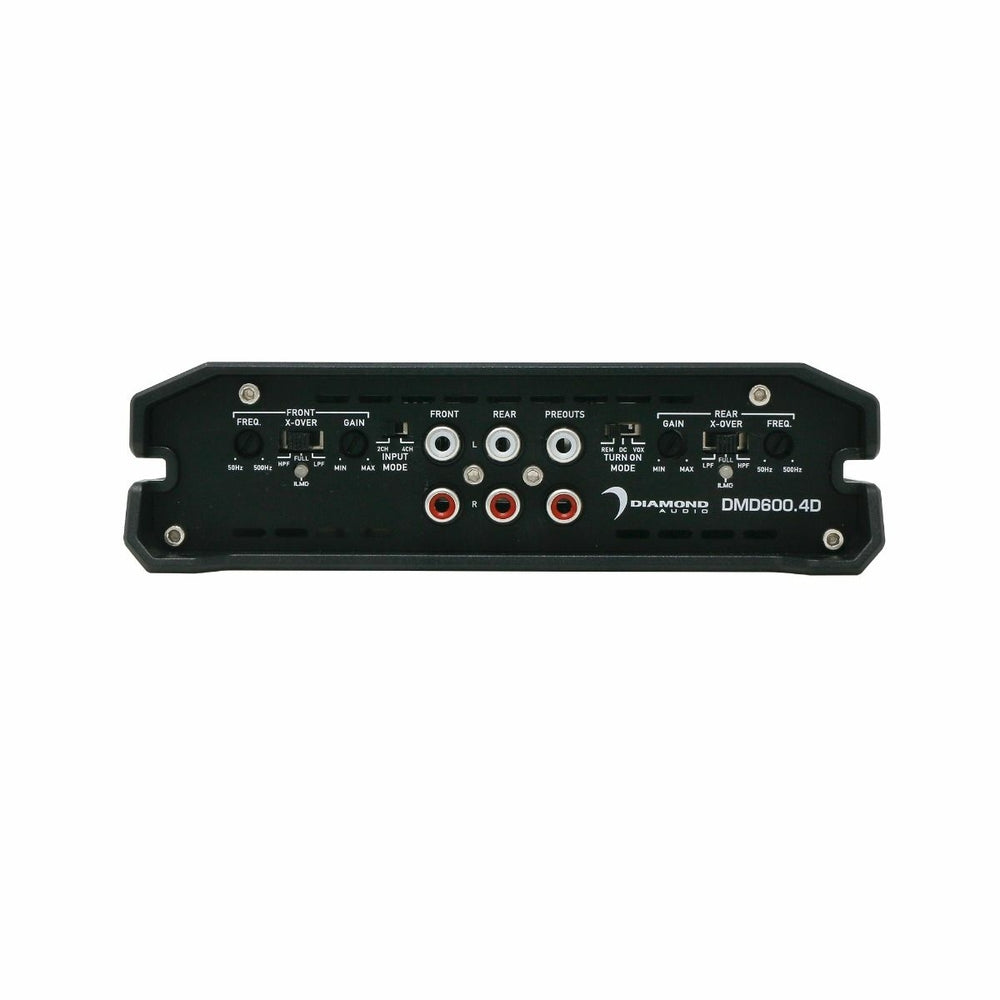

Diamond Audio DMD600.4D 600W RMS DMD Series 4-Channel Full-Range Class D Digital Amplifier

$399.99

Hurry, there are only 1 item(s) left!
 More payment options
SKU: DMD600.4DCategories: Amplifiers, Car Audio
Description

  • 600W RMS DMD Series 4-Channel Full-Range Class D Digital Amplifier
  • Class D 2 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 150 watts x 4 channel
    • 2 ohms: 100 watts x 4 channel
    • Bridged, 4 ohms: 320 watts x 2 channel
  • Total power output: 600 watts
  • Switchable 2CH & 4CH Input Configuration
  • Hidden Led Lights under Logo Badge indicate working status:Power/Protection
  • Gain Input Sensitivity Clipping Indicators
  • Full Range IR Chipset Digital Circuit Design
  • DirectFET power Mosfet Output Stage
  • Compact Size to easy Installation
  • SMD Technology on 4 Layers FR4 PC Board
  • Balanced Differential Inputs for Noise-Free Operation Regardless of the Source
  • Audio Precision Quality Control Verification
  • Input sensitivity:
  • Low level: 0.2 - 10 volts
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 90 dB
  • Variable low-pass filter: 35 - 350 Hz, 24 dB/octave
  • Variable Bass Boost: bass boost at 50 Hz
  • Fuse Rating: 120
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 6.85" W x 7.6" L x 1.9" H
