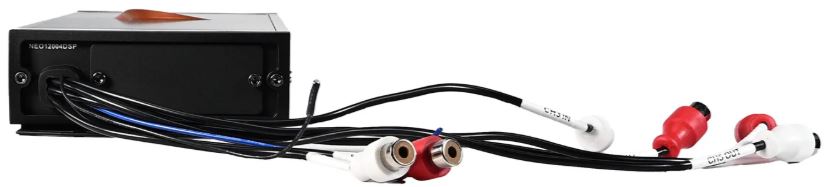

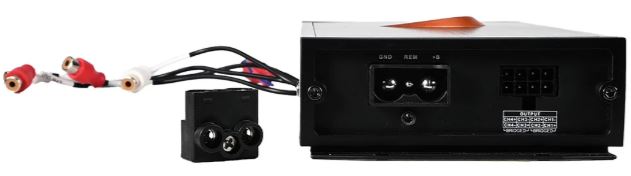

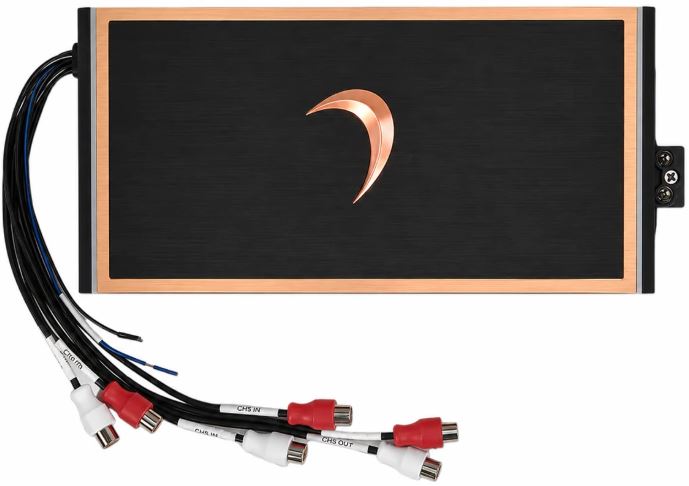

Diamond Audio NEO12004DSP 1200W RMS Class D 4-Channel Amplifier with Integrated DSP
Upgrade your vehicle's audio system with the Diamond Audio NEO12004DSP, the definitive solution for audiophiles seeking the perfect balance of multi-channel power and sophisticated tuning. Engineered as a high-efficiency Class D 4-channel amplifier, this powerhouse delivers a robust 1200 Watts RMS total output, providing the versatile strength needed to drive high-end component speakers or subwoofers with absolute authority. What truly sets this amplifier apart is its built-in, full-service Digital Signal Processor (DSP), which gives you total, professional-grade command over your entire soundstage with 31 bands of parametric EQ per channel, precise crossovers, time delay, and channel linking.
Built to perform flawlessly in diverse and challenging environments, the NEO12004DSP features a highly compact, marine-ready, and water-resistant chassis, making it the ideal choice for high-end car audio, motorcycles, marine, and powersports installations alike. It boasts exceptional modern vehicle compatibility with EV-friendly voltage stability (8V-17V), high-voltage signal inputs up to 20V, and selectable on-board load resistors for seamless integration with complex factory (OEM) electrical systems. Complete with staggered RCA connections for clean wiring, direct-to-amplifier Bluetooth audio streaming, and 2-channel RCA outputs for system expansion, this amplifier delivers cutting-edge sonic clarity in a rugged, space-saving footprint.
Key Features & Specifications
Upgrade your vehicle's audio system with the Diamond Audio NEO12004DSP, the definitive solution for audiophiles seeking the perfect balance of multi-channel power and sophisticated tuning. Engineered as a high-efficiency Class D 4-channel amplifier, this powerhouse delivers a robust 1200 Watts RMS total output, providing the versatile strength needed to drive high-end component speakers or subwoofers with absolute authority. What truly sets this amplifier apart is its built-in, full-service Digital Signal Processor (DSP), which gives you total, professional-grade command over your entire soundstage with 31 bands of parametric EQ per channel, precise crossovers, time delay, and channel linking.
Built to perform flawlessly in diverse and challenging environments, the NEO12004DSP features a highly compact, marine-ready, and water-resistant chassis, making it the ideal choice for high-end car audio, motorcycles, marine, and powersports installations alike. It boasts exceptional modern vehicle compatibility with EV-friendly voltage stability (8V-17V), high-voltage signal inputs up to 20V, and selectable on-board load resistors for seamless integration with complex factory (OEM) electrical systems. Complete with staggered RCA connections for clean wiring, direct-to-amplifier Bluetooth audio streaming, and 2-channel RCA outputs for system expansion, this amplifier delivers cutting-edge sonic clarity in a rugged, space-saving footprint.
Key Features & Specifications
- Amplifier Type: High-efficiency Class D 4-Channel Full Range Amplifier with an integrated 6-channel Digital Signal Processor (4CH internal, 2CH output).
- 4-Ohm RMS Power: 150 Watts x 4 Channels @ 4 Ohms.
- 2-Ohm RMS Power: 300 Watts x 4 Channels @ 2 Ohms.
- Bridged RMS Power: 600 Watts x 2 Channels @ 4 Ohms Bridged.
- Advanced DSP Tuning: Features a 31-band parametric EQ per channel, precise crossovers, time delay, and channel linking via PC or smart device programming.
- Seamless OEM Integration: Equipped with high-voltage signal inputs (0.4V - 20V) and selectable onboard load resistors (10Ω, 20Ω, 60Ω, 20kΩ) to bypass factory system protection circuits.
- EV & Hybrid Friendly: Advanced power supply operates safely within a wide 8V to 17V range without compromising your electric or hybrid vehicle's electrical integrity.
- Marine-Ready Construction: Water-resistant, compact chassis designed to withstand moisture and vibration in cars, motorcycles, and off-road vehicles.
- Direct Connectivity: Features Bluetooth audio streaming directly to the amplifier and 2 RCA preamp outputs for easy system expansion.
- Dimensions: Ultra-compact footprint measuring 8.8" (L) x 4.07" (W) x 1.38" (H).
