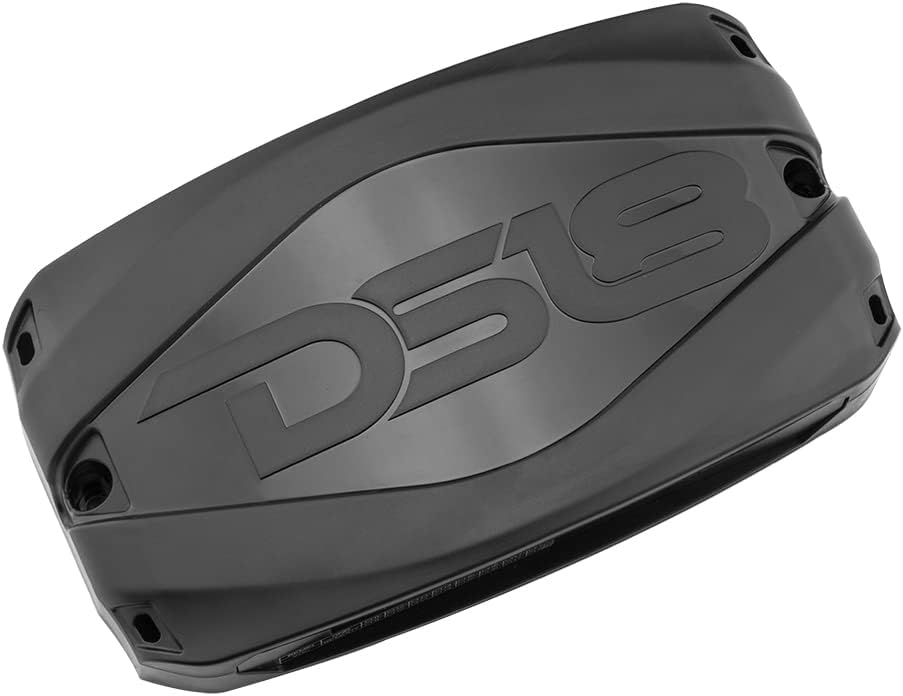

DS18 DSP8.8BT – 8-Channel Bluetooth Digital Sound Processor (DSP) w/ App Control
Take full control of your vehicle’s sound system with the DS18 DSP8.8BT. Featuring 8-channel input/output routing, remote output, Bluetooth app control, and a 32-bit DSP processor, it allows for seamless tuning from your phone—iOS or Android.
KEY FEATURES
Take full control of your vehicle’s sound system with the DS18 DSP8.8BT. Featuring 8-channel input/output routing, remote output, Bluetooth app control, and a 32-bit DSP processor, it allows for seamless tuning from your phone—iOS or Android.
KEY FEATURES

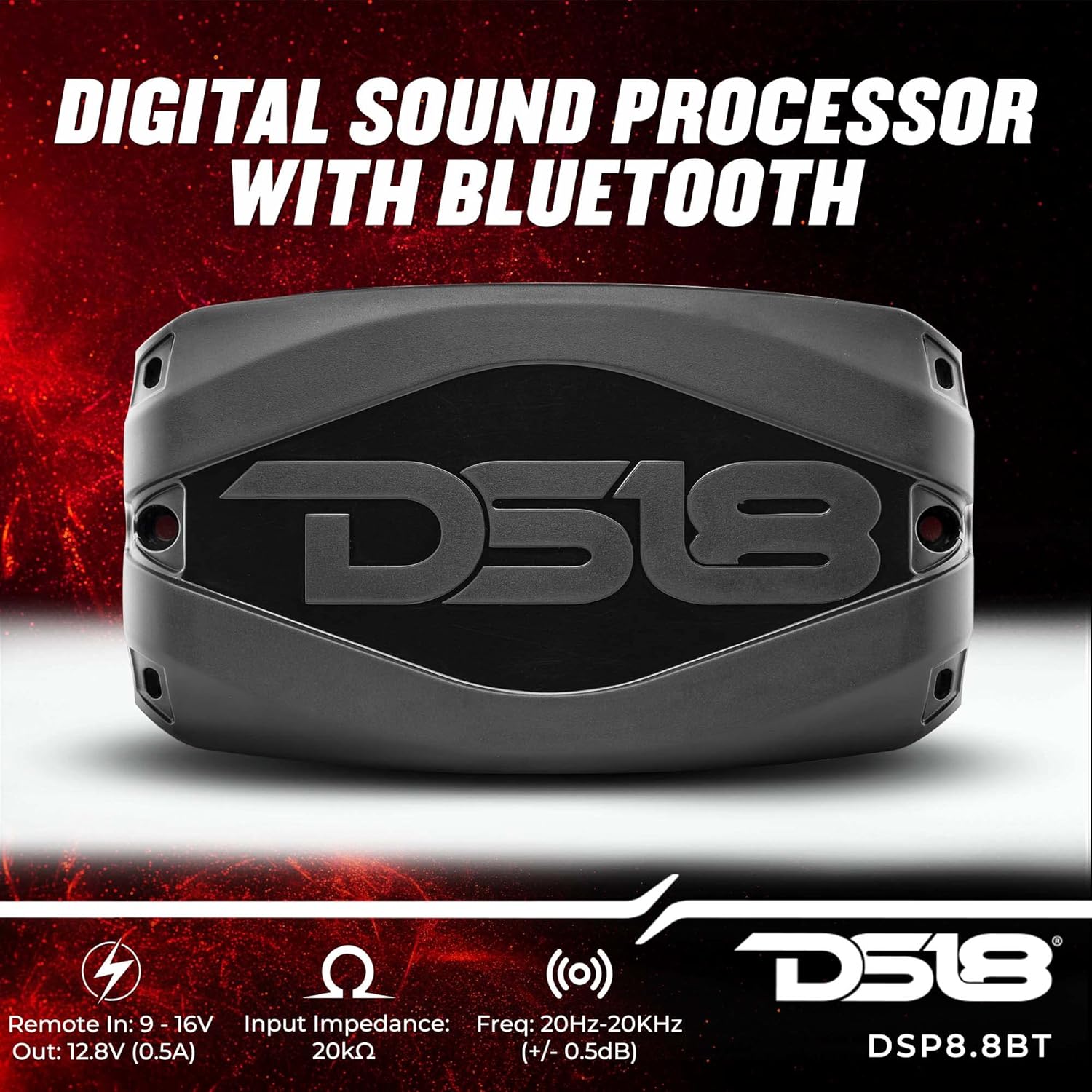

- Digital Sound Processor
- 8 Channel In
- 8 Channel Out
- Remote Output
- Bluetooth Connectivity via App
- iOS and Android Compatible
- Model: DSP8.8BT
- Power Supply: 9–16V DC
- Remote Output Voltage: 12.8V (0.5A)
- Fuse Size: 2A
- DSP Precision: 32-bit / 147 MHz
- DSP Accumulators: 2 × 28-Bit
- Frequency Response: 20Hz – 20kHz (±1 dB)
- THD+N: <1%
- Signal-to-Noise Ratio: >100dB
- Input Sensitivity: 0.2 – 9V
- Input Impedance: 20kΩ
- Max Pre-Out Level (RMS): 5V
- Pre-Out Impedance: 200Ω
- DAC & ADC Precision: 24-Bit
- Dynamic Range (DAC & ADC): >100dB

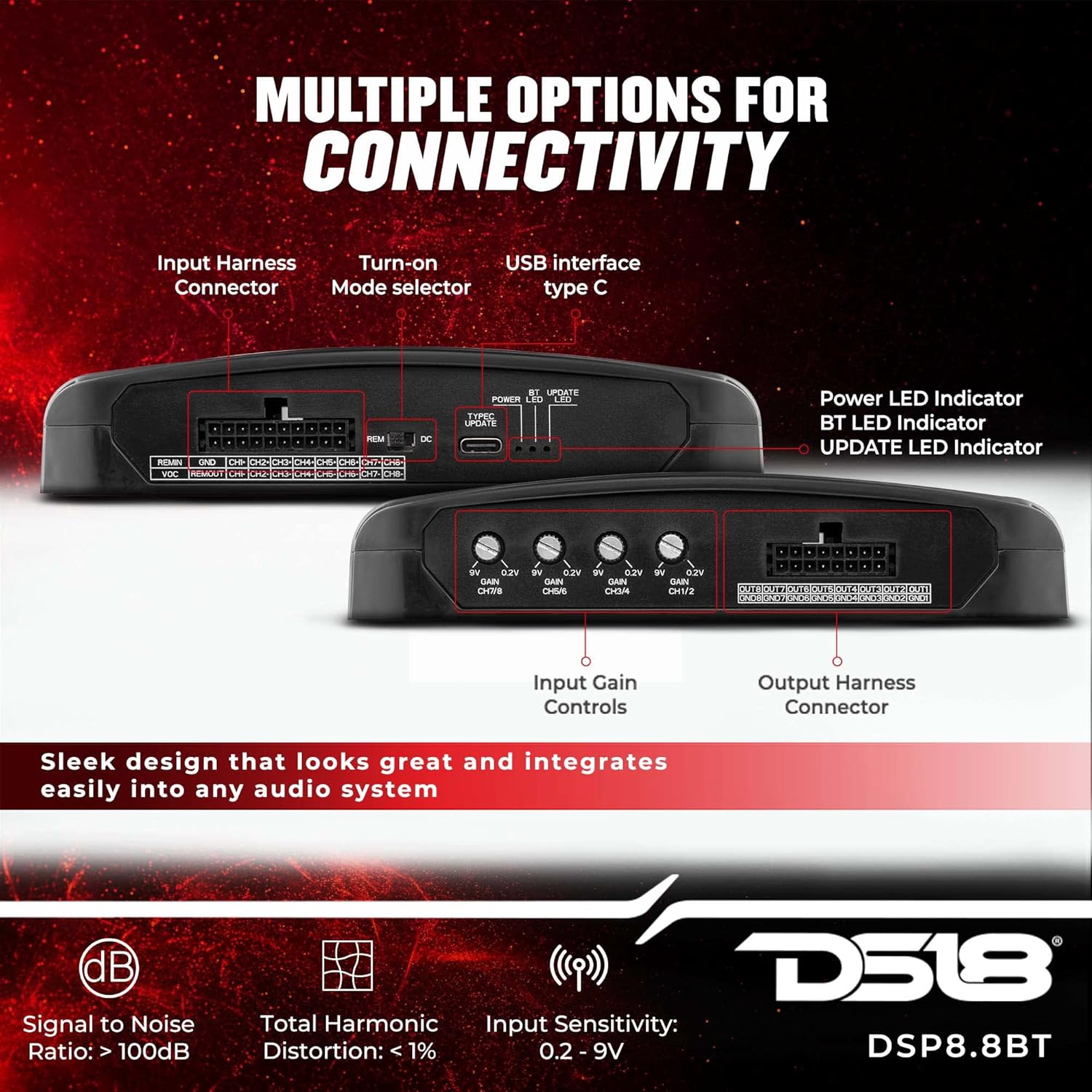

- Input/Output: 8 High/Low Level Inputs + 8 Low Level RCA Outputs
- Crossover Frequency: 20Hz to 20kHz (HP/LP)
- Crossover Slope: Selectable
- EQ: 31 Bands Parametric
- Presets: 20 (POP, Dance, Rock, etc.)
- User Presets: Yes – Basic / Advanced
- App Control: iOS & Android
- Single Unit: 6.3" x 3.9" x 1.4" (160 × 99 × 35mm)
- Master Carton: 17.3" x 14.3" x 11.8"
- Unit Weight: 0.8 lb
