DS18 ZXI15.2D 15” High-Excursion 1000W RMS | 2000W Max Subwoofer 2-Ohm DVC w/ Quad Stacked Magnets

DS18 ZXI15.2D ZXI Series 15-Inch High-Excursion Subwoofer (Dual 2-Ohm)

Unleash thunderous, head-turning bass in your vehicle with the DS18 ZXI15.2D, a massive 15-inch high-excursion subwoofer engineered for serious low-frequency output. Designed to hit the lowest notes with authority, this powerhouse subwoofer is conservatively rated at 1000 watts RMS and 2000 watts MAX power handling. Whether you are building a custom SPL system or simply want to experience ultra-deep, heart-pounding bass during your daily commute, the ZXI15.2D provides the extreme durability and high-powered performance required to take your car audio system to the absolute limit.

Built around a robust, sandblasted black aluminum basket, the ZXI15.2D features a premium non-pressed paper cone paired with a high-excursion foam surround and a rigid PPI dust cap. At the core of this heavy-duty driver lies a 3-inch CCAW voice coil with a black aluminum former that expertly manages heat to maintain efficiency during intense, high-volume listening sessions. This coil is driven by a massive 232-ounce quad-stacked ferrite motor structure, delivering an incredibly strong magnetic field for precise cone control and extreme linear excursion. With its dual 2-ohm voice coil configuration, you gain the wiring flexibility needed to optimize your amplifier's impedance load, while its ultra-low 28Hz resonant frequency (Fs) ensures smooth playback all the way down to an earth-shaking 15Hz.

Key Features & Specifications

• Size & Impedance: 15-inch nominal diameter with a Dual 2-Ohm (DVC) voice coil configuration for flexible amplifier wiring.
• Power Handling: Conservatively rated to handle 1000 Watts RMS and 2000 Watts MAX power.
• Frequency Response: Delivers an ultra-wide, low-reaching frequency response of 15Hz to 900Hz, perfectly tailored for rich, deep bass reproduction.
• Voice Coil: Features a 3-inch CCAW voice coil wrapped around a black aluminum former to efficiently absorb and dissipate heat under extreme power loads.

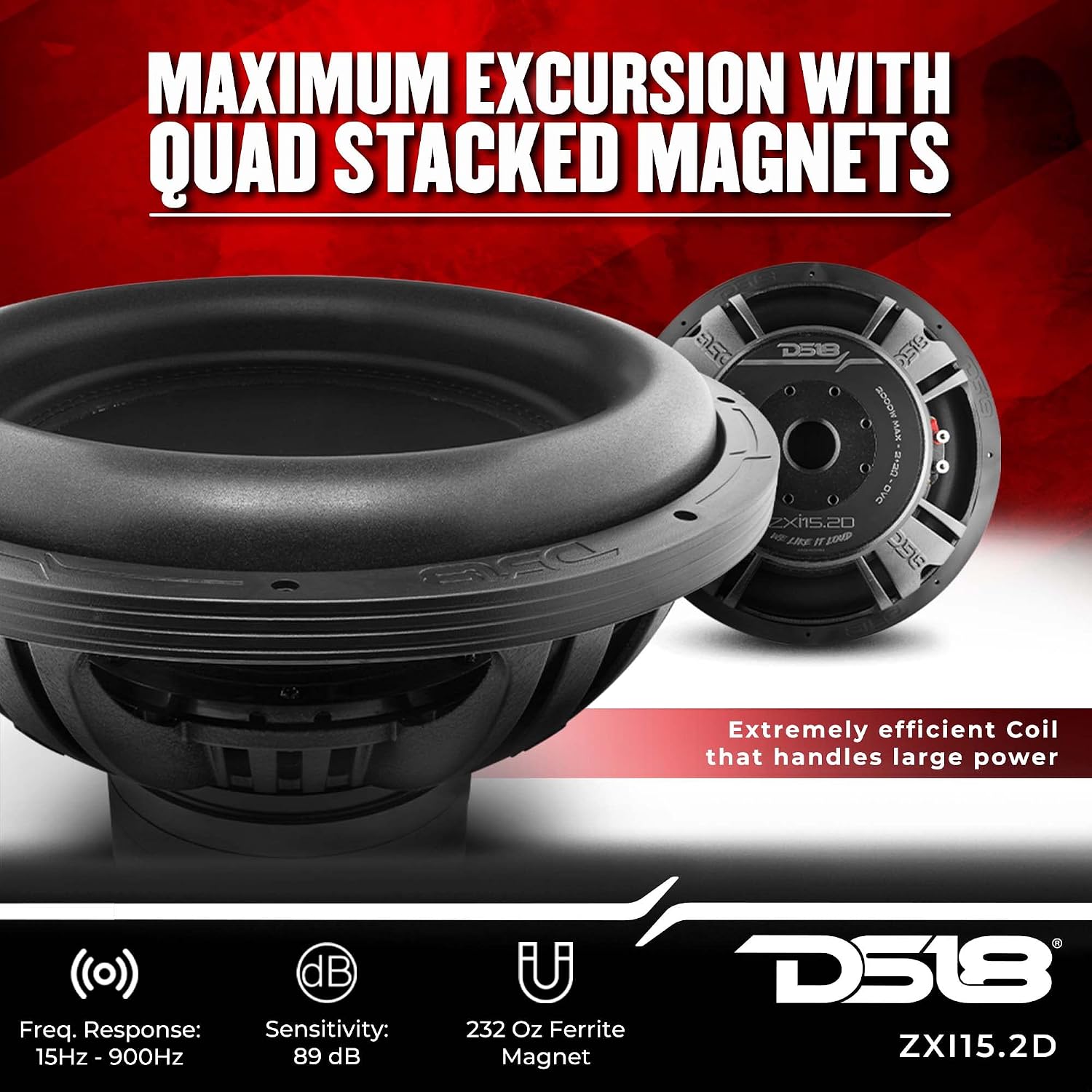

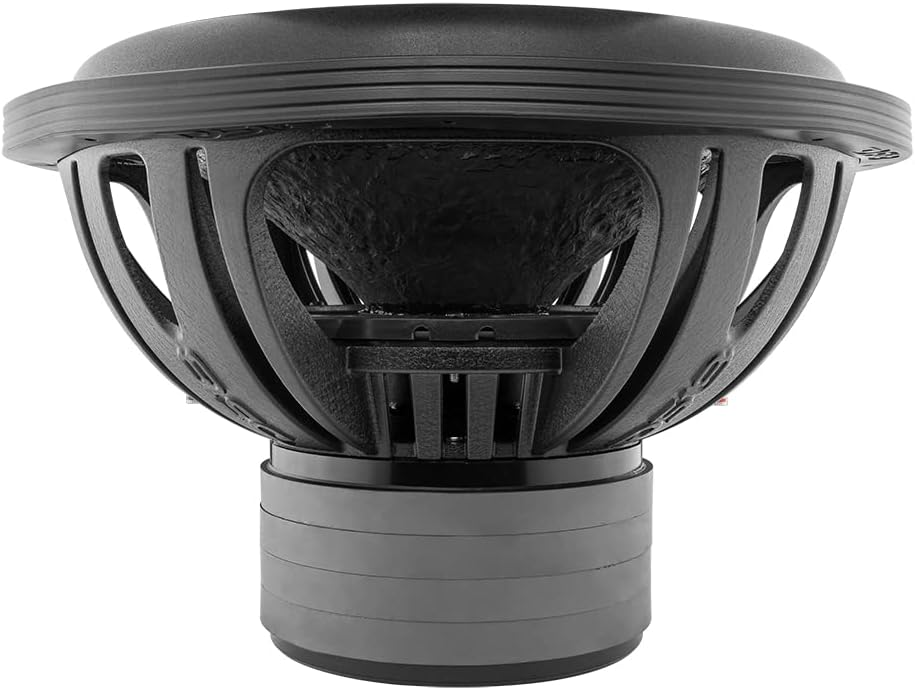

• Motor Structure: Utilizes a massive 232-ounce quad-stacked ferrite magnet motor (four 58-ounce magnets) for enhanced excursion, magnetic strength, and tight cone control.

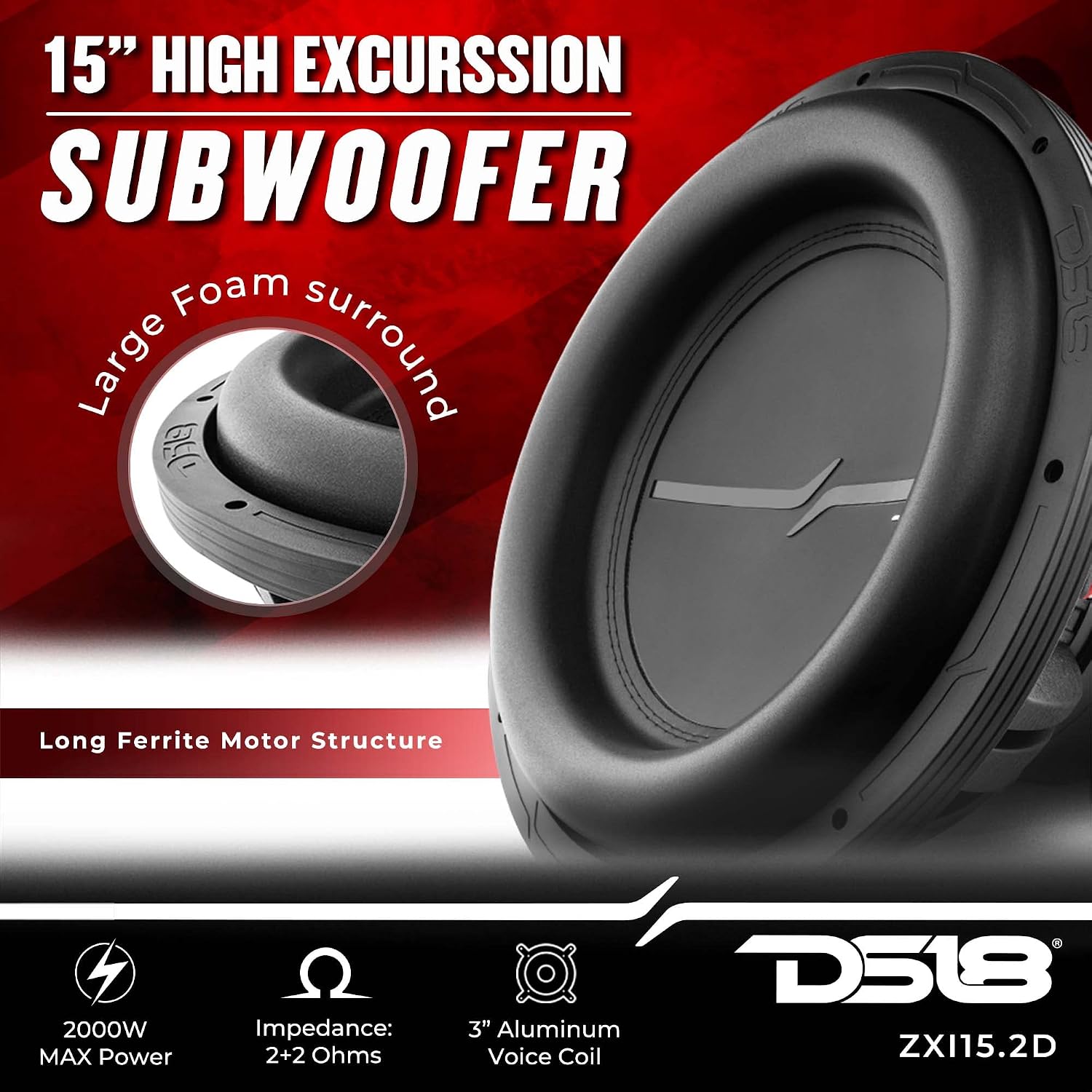

• High-Excursion Design: Combines a non-pressed paper cone, a high-roll foam surround, and an incredibly low Fs of 28Hz to push massive amounts of air without distortion.
• Sensitivity: Features an 89dB sensitivity rating (1w/1m), maximizing the acoustic output from your amplifier's available power.
• Enclosure Recommendations: Highly versatile design performs exceptionally well in both sealed (optimal 2.0 cu. ft.) and ported (optimal 2.8 cu. ft. tuned to 28Hz) box applications.
