Description
LAB OEM-Spec™ Subwoofer Enclosures – Factory Precision. Aftermarket Build.
Exclusively engineered for JL Audio subwoofers, the LAB OEM-Spec™ line delivers factory-precision performance in a high-quality aftermarket build. Designed using JL Audio's own enclosure blueprints, each box is constructed with the same craftsmanship as our SlapBox™ series—featuring precision-cut high-grade MDF. These enclosures are optimized to JL’s exact airspace and tuning specs, ensuring maximum efficiency, increased power handling, and a compact footprint.
OEM-Spec™ enclosures are available in both sealed and ported designs for most JL Audio drivers. Smaller in size but big on performance, this is the go-to solution for JL fans who want a true-to-spec experience—without compromise.
Features
Technical Specifications
LAB OEM-Spec™ Subwoofer Enclosures – Factory Precision. Aftermarket Build.
Exclusively engineered for JL Audio subwoofers, the LAB OEM-Spec™ line delivers factory-precision performance in a high-quality aftermarket build. Designed using JL Audio's own enclosure blueprints, each box is constructed with the same craftsmanship as our SlapBox™ series—featuring precision-cut high-grade MDF. These enclosures are optimized to JL’s exact airspace and tuning specs, ensuring maximum efficiency, increased power handling, and a compact footprint.
OEM-Spec™ enclosures are available in both sealed and ported designs for most JL Audio drivers. Smaller in size but big on performance, this is the go-to solution for JL fans who want a true-to-spec experience—without compromise.
- Shallow-Mount Ready
Designed specifically for the JL Audio TW5 13.5" shallow-mount subwoofer series (13TW5v2-2 / 13TW5v2-4 / 13TW5-2 / 13TW5-4). - Tuned for SQ and Efficiency
0.80 cu. ft. internal airspace (net) delivers tight, accurate bass in a compact footprint, optimized for sealed applications. - ️ Built to Exacting Standards
Constructed from precision-cut 3/4" MDF and wrapped in black automotive carpet for strength, stability, and clean aesthetics. - Compact Size. Premium Sound.
Ideal for space-limited installations like under seats or behind truck benches without compromising on performance.
Features

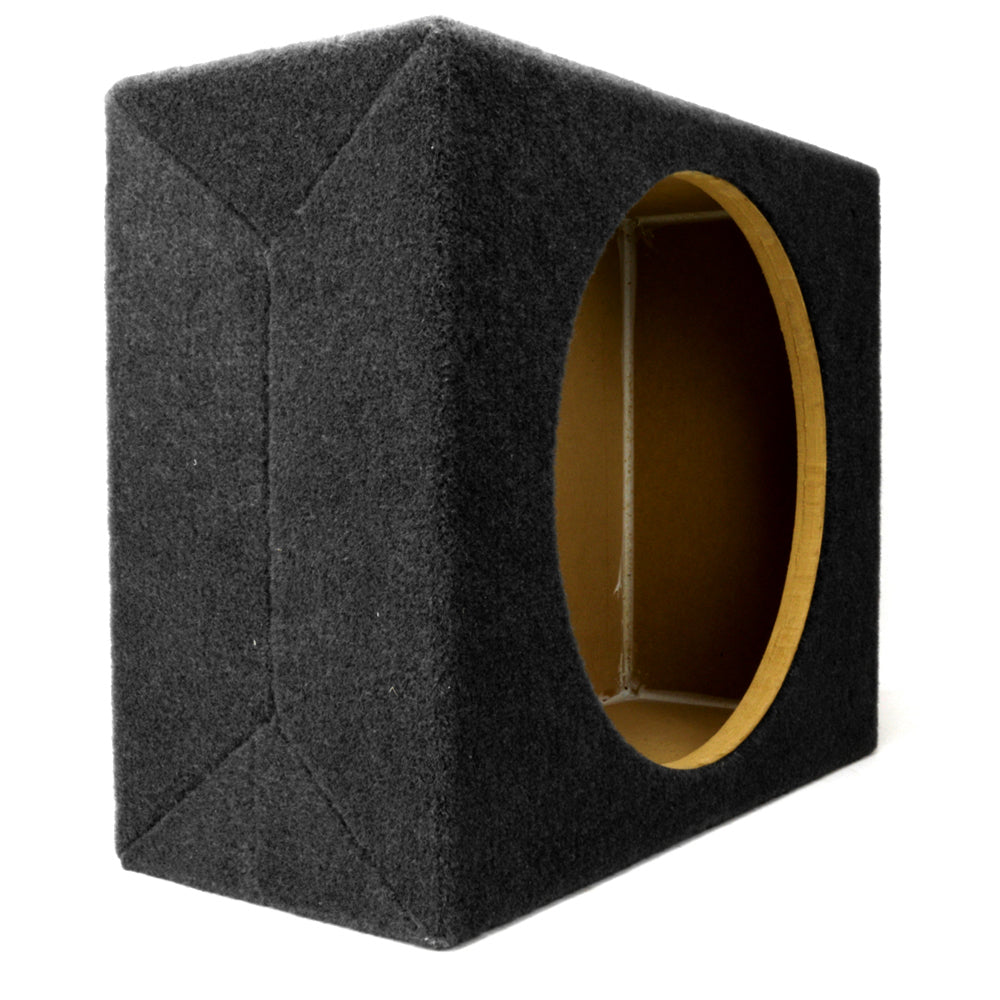

- Sealed shallow-mount enclosure for a single 13.5" JL Audio TW5 subwoofer
- Built using JL Audio’s recommended sealed design
- 0.80 cu. ft. internal volume (net)
- Precision-cut 3/4" high-grade MDF construction
- Wrapped in premium black automotive-grade carpet
- Upgraded 2" round nickel-plated binding post
- Proudly made in California, U.S.A.
Technical Specifications
- Enclosure volume: 0.80 ft³ (net internal)
- F3: 41.18Hz
- Fc: 50.75Hz
- Qtc: 0.937
- Subwoofer cutout diameter: 12.5" (12-1/2")
- External dimensions: 19" W x 15" H x 7.75" D
