Description
What exact subwoofer does this fit?
This enclosure is precision-built specifically for a single 10" JL Audio® W7 or W7AE subwoofer (models 10W7-3 or 10W7AE-3). The cutout diameter is perfectly matched to the W7's unique footprint at 8.74" (8-3/4").
Will it fit in my vehicle?

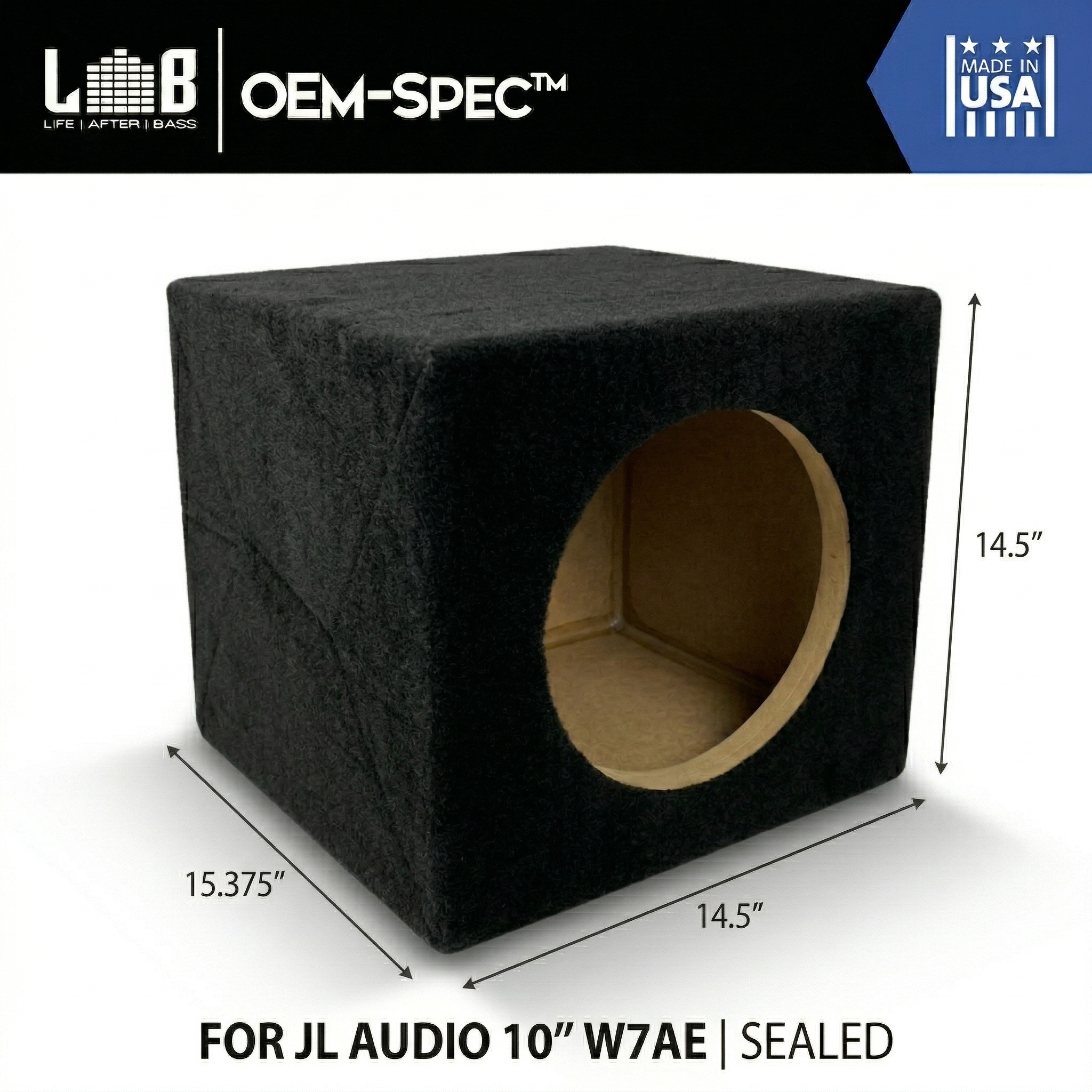

Yes, it is designed to maximize output while maintaining a very compact, space-conscious footprint. The exact external dimensions are 14.5" W x 14.5" H x 15.375" D.
How is the performance and wiring?
This sealed design delivers exceptionally tight, responsive, and deep bass output (with a flat 0.763 Qtc alignment and an F3 of 40.5Hz)—ideal for true sound quality (SQ) systems. It features an upgraded 2" round nickel-plated binding post for secure and reliable high-wattage wiring connections.
Technical Specifications:
What exact subwoofer does this fit?
This enclosure is precision-built specifically for a single 10" JL Audio® W7 or W7AE subwoofer (models 10W7-3 or 10W7AE-3). The cutout diameter is perfectly matched to the W7's unique footprint at 8.74" (8-3/4").
Will it fit in my vehicle?
Yes, it is designed to maximize output while maintaining a very compact, space-conscious footprint. The exact external dimensions are 14.5" W x 14.5" H x 15.375" D.
How is the performance and wiring?
This sealed design delivers exceptionally tight, responsive, and deep bass output (with a flat 0.763 Qtc alignment and an F3 of 40.5Hz)—ideal for true sound quality (SQ) systems. It features an upgraded 2" round nickel-plated binding post for secure and reliable high-wattage wiring connections.
OEM-Spec™ Enclosures: Purpose-Built for JL Audio®
Dropping a premium JL Audio® subwoofer into a cheap leaky box is a quick way to leave performance on the table. Our LAB OEM-Spec™ enclosures aren't trying to reinvent the wheel. Instead, they are precision-built tools manufactured right here in the USA to do exactly what JL Audio® intended.
We construct these with rock-solid 3/4” CNC-cut MDF and feature 1” or thicker front baffles on select models to support heavier motors. These enclosures follow JL Audio’s exact volumetric blueprints to the letter. By utilizing their highly efficient smaller-airspace designs, you get two very practical benefits. You get increased mechanical power handling to keep your sub safe from over-excursion, and you gain a significantly smaller footprint in your trunk.
Available in both ported and sealed configurations for most JL Audio® drivers, the OEM-Spec™ line delivers the accurate, hard-hitting bass JL is famous for at a price point that actually makes sense.
Why It Hits the Mark:
- Factory-Tuned Precision: Built exclusively to JL Audio® factory specs for optimal Thiele/Small (T/S) parameter matching.
- Heavy-Duty Construction: 100% 3/4” CNC-cut MDF with ultra-thick front baffles on select models for maximum structural integrity.
- American Made: Designed, cut, and assembled in the USA for strict quality control.
Technical Specifications:
- JL Audio® designed W7 / W7AE 10-inch sealed woofer enclosure
- Built using JL Audio®'s recommended sealed box design for a single 10" JL Audio® W7 sub (10W7-3 / 10W7AE-3)
- Constructed of 0.75" CNC-cut high-grade MDF
- Reinforced 1" MDF front baffle for added strength and heavy motor support
- High-grade black automotive carpet finish
- Upgraded 2" round nickel-plated binding post
- Made in California, U.S.A.
- Enclosure volume: 1.25 ft^3 (net internal)
- F3 (low-end extension): 40.5Hz
- Fc (system resonance): 43.5Hz
- Qtc: 0.763
- Sub cutout diameter: 8.74" (8-3/4")
- Dimensions: 14.5"W x 14.5"H x 15.375"D
