Description
MTX TN800.5 Terminator Series 5-Channel Amplifier – 800W RMS, Full-Range Class D
The MTX TN800.5 is the ultimate all-in-one amplification solution for listeners who want to power their entire car audio system with a single, high-efficiency unit. Part of the legendary Terminator Series, this 5-channel amplifier delivers a combined 800 Watts RMS, providing clean power for four full-range speakers and a dedicated high-output channel for your subwoofer. Engineered with a compact "stealth" footprint and advanced Full-Range Class D topology, the TN800.5 offers the perfect balance of performance, versatility, and value, allowing for a professional-grade installation even in space-constrained vehicles.
Key Features
The MTX TN800.5 is the ultimate all-in-one amplification solution for listeners who want to power their entire car audio system with a single, high-efficiency unit. Part of the legendary Terminator Series, this 5-channel amplifier delivers a combined 800 Watts RMS, providing clean power for four full-range speakers and a dedicated high-output channel for your subwoofer. Engineered with a compact "stealth" footprint and advanced Full-Range Class D topology, the TN800.5 offers the perfect balance of performance, versatility, and value, allowing for a professional-grade installation even in space-constrained vehicles.
Key Features
- Terminator Series 5-Channel "System" Amplifier
-
Power Handling (RMS):
- Channels 1-4: 50W x 4 @ 4Ω / 75W x 4 @ 2Ω
- Sub Channel: 300W x 1 @ 4Ω / 500W x 1 @ 2Ω
- Full-Range Class D Topology: Highly efficient design for high-fidelity sound and minimal heat
- Compact Design: Small chassis (approx. 10.6" length) allows for installation under seats or in tight compartments
-

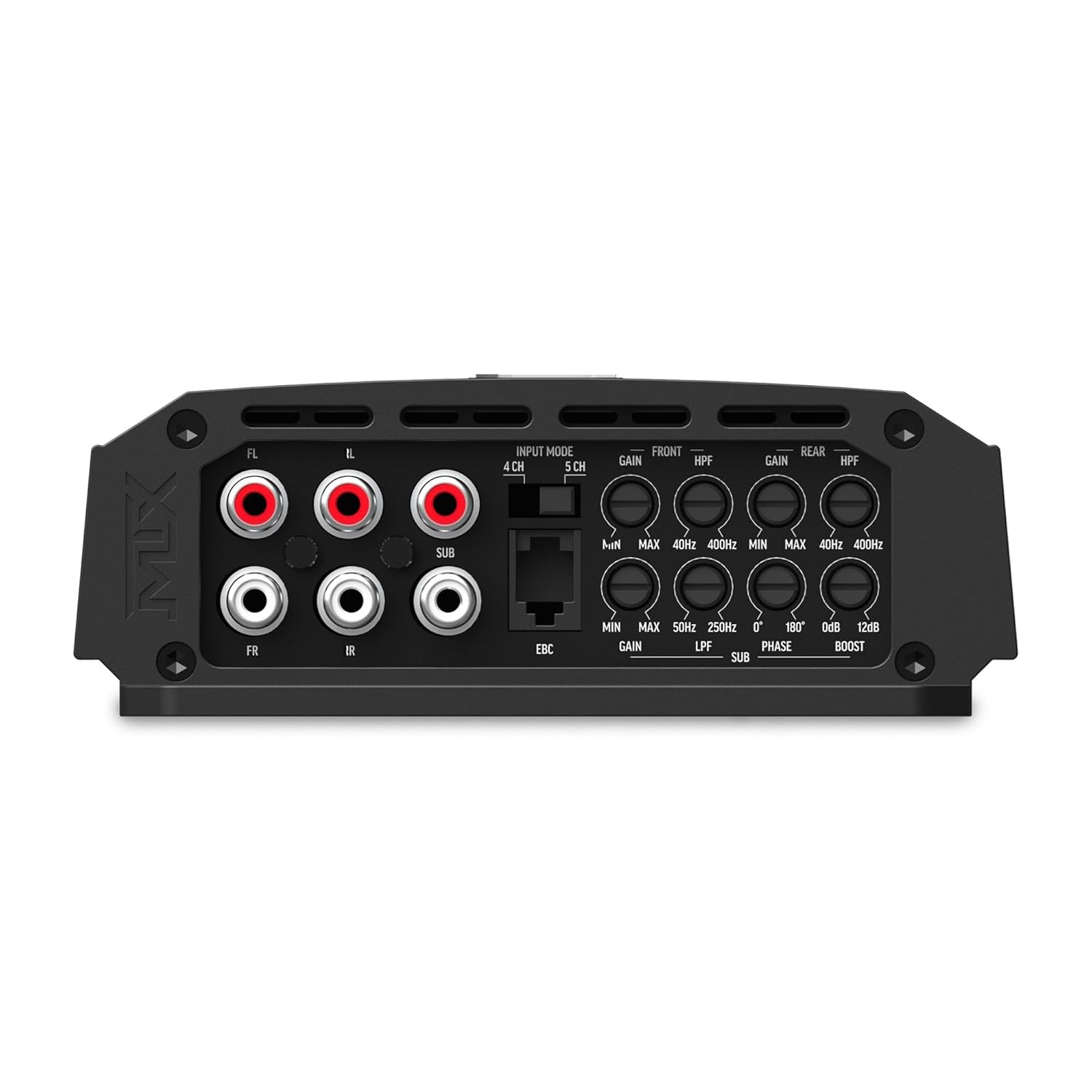

Comprehensive System Tuning:
- Channels 1-4: Variable High/Low Pass Crossovers (40Hz – 400Hz)
- Sub Channel: Variable Low Pass Crossover (50Hz – 250Hz)
- Sub Channel: Integrated Bass Boost (0-12dB @ 45Hz) and Phase Switch (0/180°)

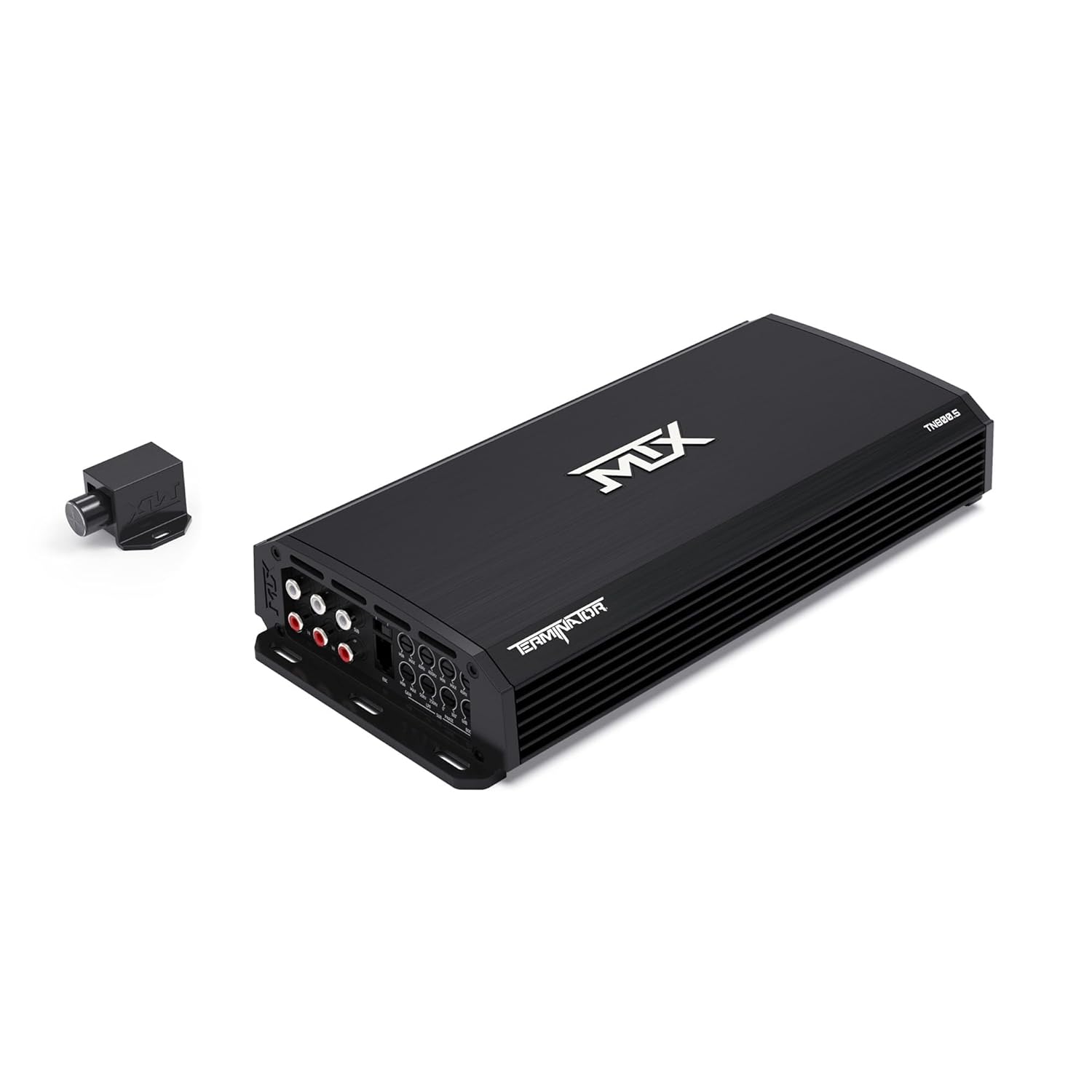

- Remote Bass Knob (EBC): Included for on-the-fly subwoofer level control from the dash
- Surface Mount Technology (SMT): High resistance to road vibrations for long-term durability

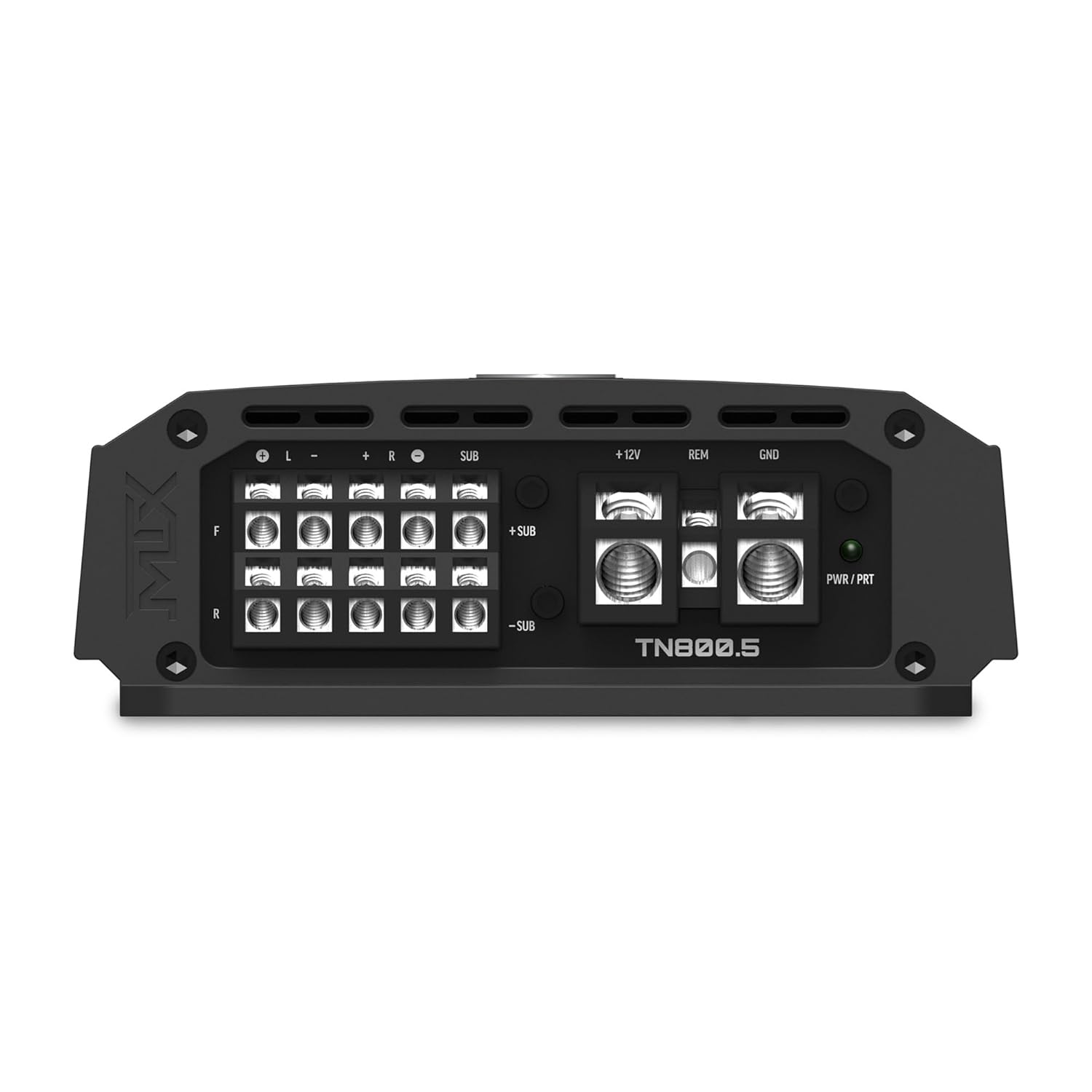

- Direct Insert Terminals: Secure, high-current connections for 4AWG power and 10AWG speaker wire
- Short Circuit, Thermal, and Under/Over Voltage Protection with LED Status Indicator
- Frequency Response: 20Hz – 20kHz (Full Range) / 20Hz – 250Hz (Sub)
- Dimensions: 10.63" L x
