Power Acoustik OD5-3500 5-Channel 1300W RMS Overdrive Series Class D Amplifier


Hurry, there are only 2 item(s) left!
SKU: OD5-3500Categories: Amplifiers, Car Audio

  • High Efficiency Class D Full Range Amplifier
  • Hybrid Aluminum Alloy Heatsink For Optimum Dissipation
  • Mosfet Power Supply W/ Audiophile Grade IRTM Transistors
  • Military Grade Smt PCB Maintains Dynamic Performance
  • Direct Short, Thermal, & Overload Circuits Protect Amplifier
  • 200Mv-6V Low Level RCA Signal Input + Thru-Pass Output

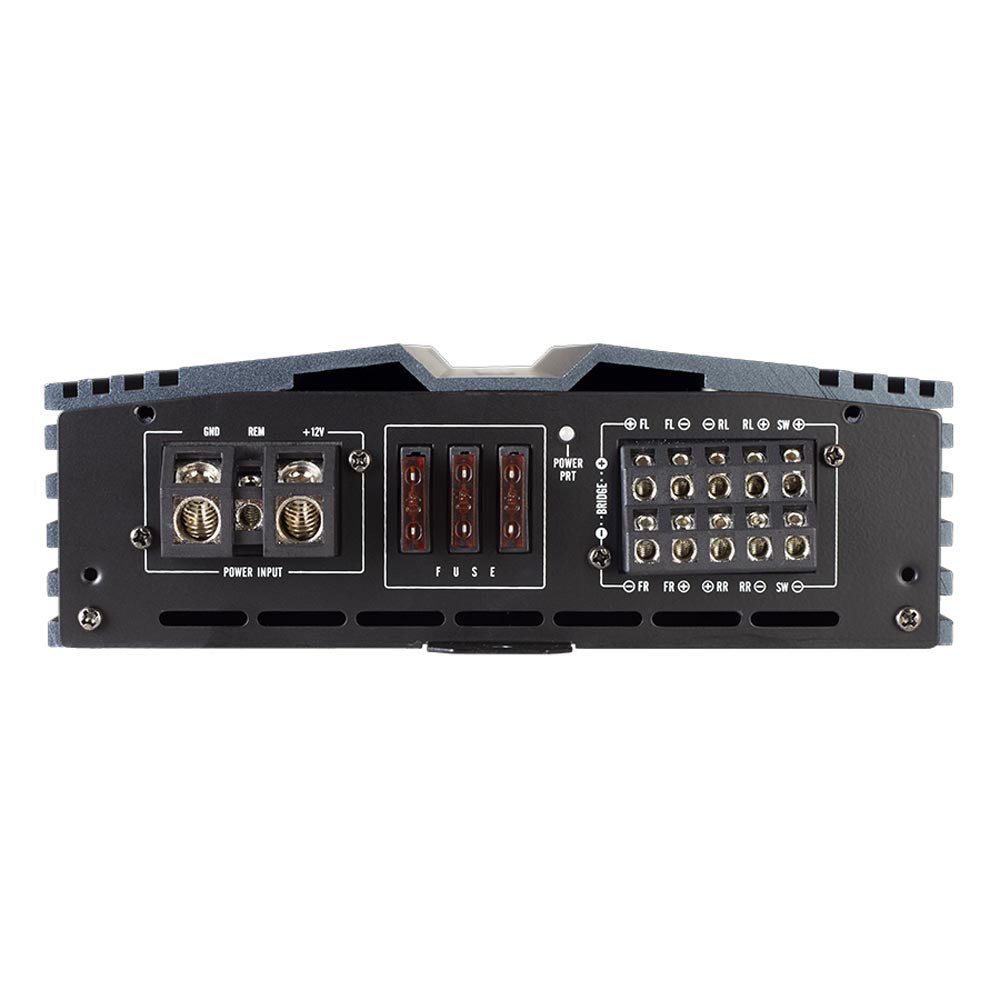

  • 4G Power Input Terminals & 12G Speaker Output Terminals
  • Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
  • 12dB Bass Boost Increases Low Octave Harmonics
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • 16.25"L x 7.25"W x 2.5"H
  • 4 Ohms @ 14.4V: 140 Watts x 4 + 300 Watts x 1
  • 2 Ohms @ 14.4V: 200 Watts x 4 + 500 Watts x 1
  • Bridged 4 Ohms @ 14.4V: 440 Watts x 2 + 500 x 1
  • MAX Power Rating: 3500 Watts
