Description
- Nominal Impedance: Dual 4-ohm
- BL: 10.77
- Inputs: Dual Voice Coil
- Subwoofer Frequency Range: 30 Hz - 500 Hz
- Voice Coil Size: 2.5 in
- Material: Woven Glass Fiber and Kraft Paper
- Magnet Size: 48 oz
- Sensitivity (1W / 1M): 82 dB
- Motor Structure: 48 oz
- Cutout Diameter: 9.0"
- Mounting Depth: 7.75 in
- Xmax: 10
- Spl: 82
- No: 0.095%
- Qts: 0.752
- Qes: 0.871
- Qms: 5.509
- Mms: 231.3 g
- Cms: 74 uM/N
- Vas: 15.03 Ltr
- SD: 380.1
- Fs: 38.6 Hz
- Test Impedance: 1.80-ohm
- VC Impedance: 4-ohm + 4-ohm
- Size: 10 in
- Sensitivity: 82 dB
- Frequency Response: 30 Hz -500 Hz
- Voice Coil Size: 2.5 in
- Power Handling (RMS/Peak): 600 / 1200 watts

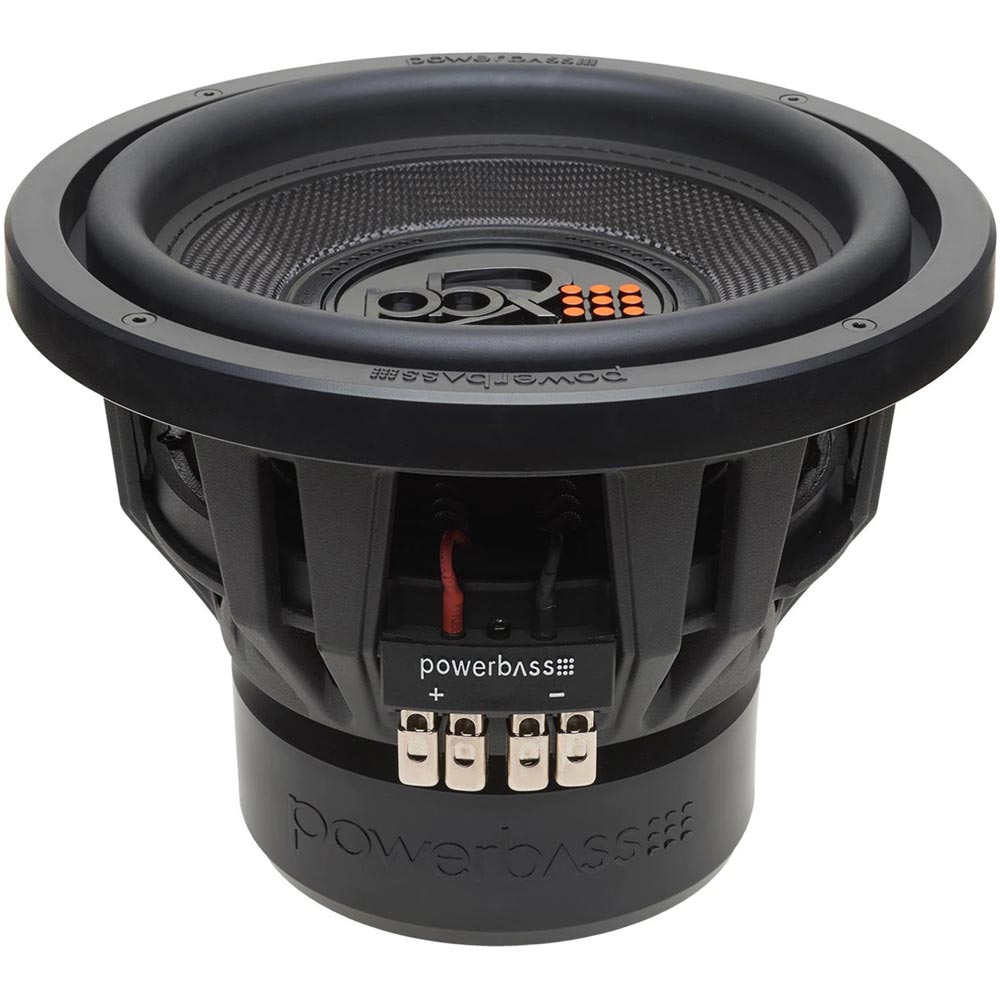

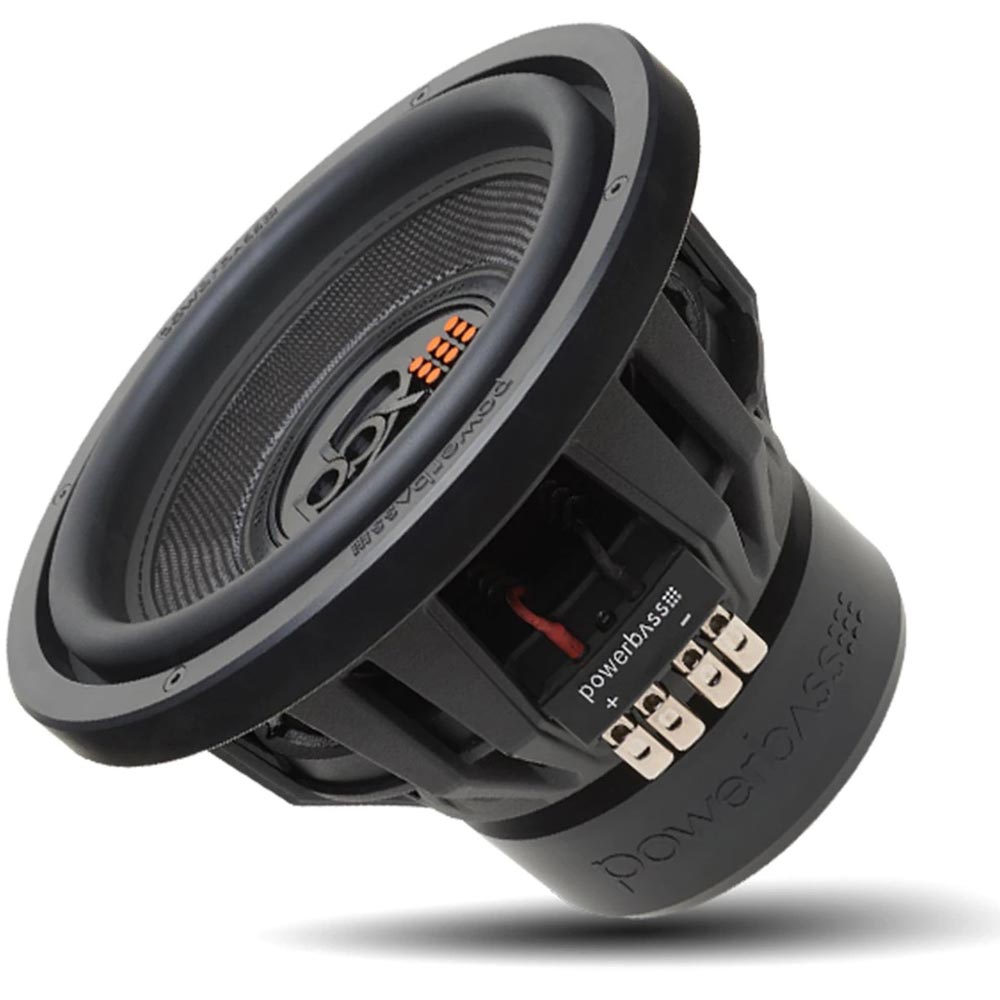

- 10" Dual 4-Ohm Subwoofer
- 600 watt RMS/ 1200 Watts Max
- Woven Glass Fiber Cone With Pressed Kraft Paper Reinforcement
- Nitrile Butadiene Rubber (NBR) Surround
- 2.5" Vented BKSV Voice Coil Former
- Perimeter Aero-Vent Voice Coil Cooling Vents
- Non Resonance DDC Coated Cast Aluminum Basket
- XTRA XTRA Large Double Stacked Motor Structures
- Square Spring Loaded Nickel Plated Input Terminals
- Optimally Designed for Both Sealed or Ported Enclosures
