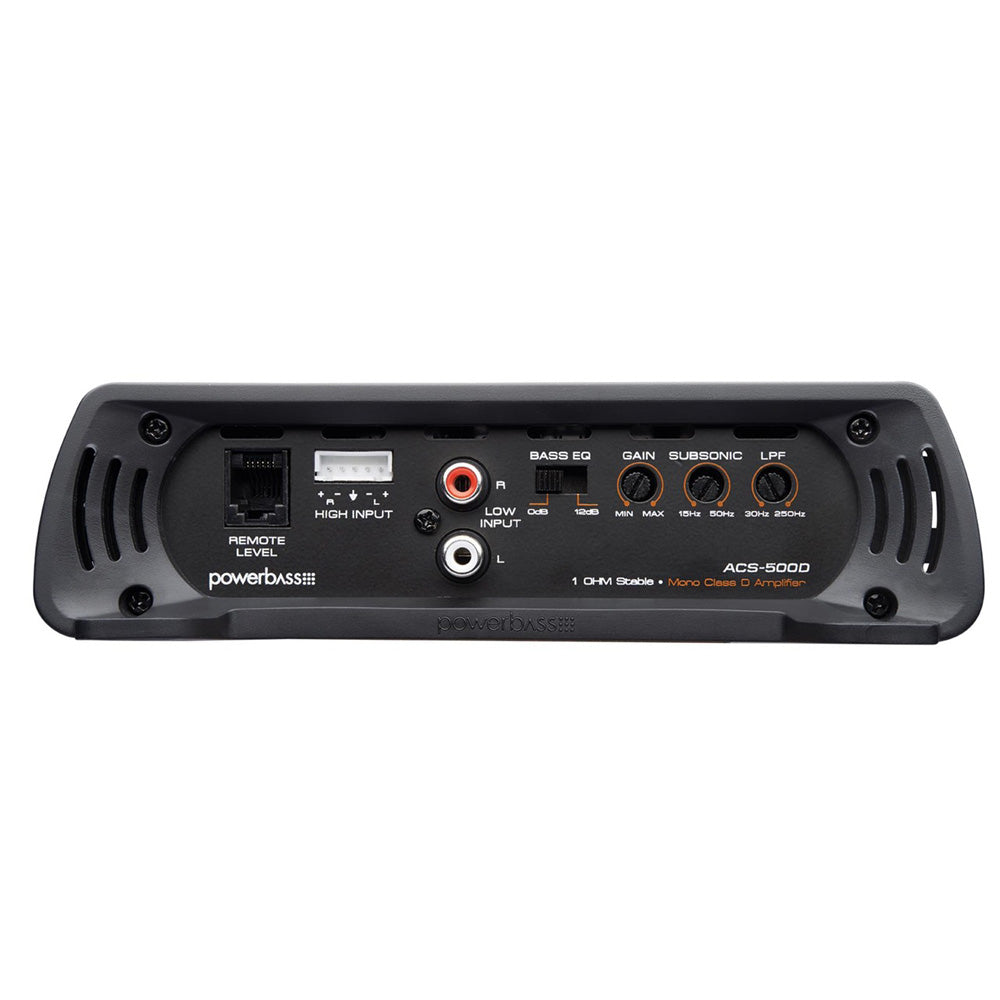

Powerbass ACS-500D 1-Channel 500W RMS ACS Series Class D Monoblock Amplifier

$219.99

Hurry, there are only 9 item(s) left!
SKU: ACS-500DCategories: Amplifiers, Car Audio, Powerbass
Description

  • 500 Watt High Efficiency Class D Design
  • 1-OHM Stable Mono Block Amplifier
  • MOSFET Power Supply
  • High Level (Speaker)/Low Level (RCA) Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low Pass Electronic Crossover
  • Selectable 12dB Bass Boost EQ
  • Variable Gain Control
  • Remote Level Control Port (for optional PB-GAIN1 controller)
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
  • Variable Subsonic Freq: Variable 15 Hz - 50 Hz
  • Inputs: RCA, 1 Pair Input, 1 Pair Speaker Level Input
  • Equalization Boost/Cut: Switchable 0/12 dB @ 45Hz
  • Subwoofer Frequency Range: 10 Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Height: 2.0"
  • Width: 7.1"
  • Depth: 9.7"
  • Switchable Subwoofer EQ: 0 / +12 dB @ 45 Hz
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: Switchable 0/+12 dB
  • Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz
  • High-Pass Crossover Freq: n/a
  • Peak Power: 1000 watts
  • Crossover Slope: 12 dB
  • Dimensions (in Inches): 9.7" x 7.1" x 2.0"
  • Input Sensitivity: 0.25 - 6.0 Volts
  • S/N Ratio: >90 dB
  • Total Harmonic Distortion: 0.5% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 200 watt x 1
  • Output Power (14.4 V) @ 2 ohm: 300 watt x 1
  • Output Power (14.4 V) @ 1 ohm: 500 watt x 1
  • Channels (mono): 1
  • Frequency Response: 10 Hz - 250 Hz
