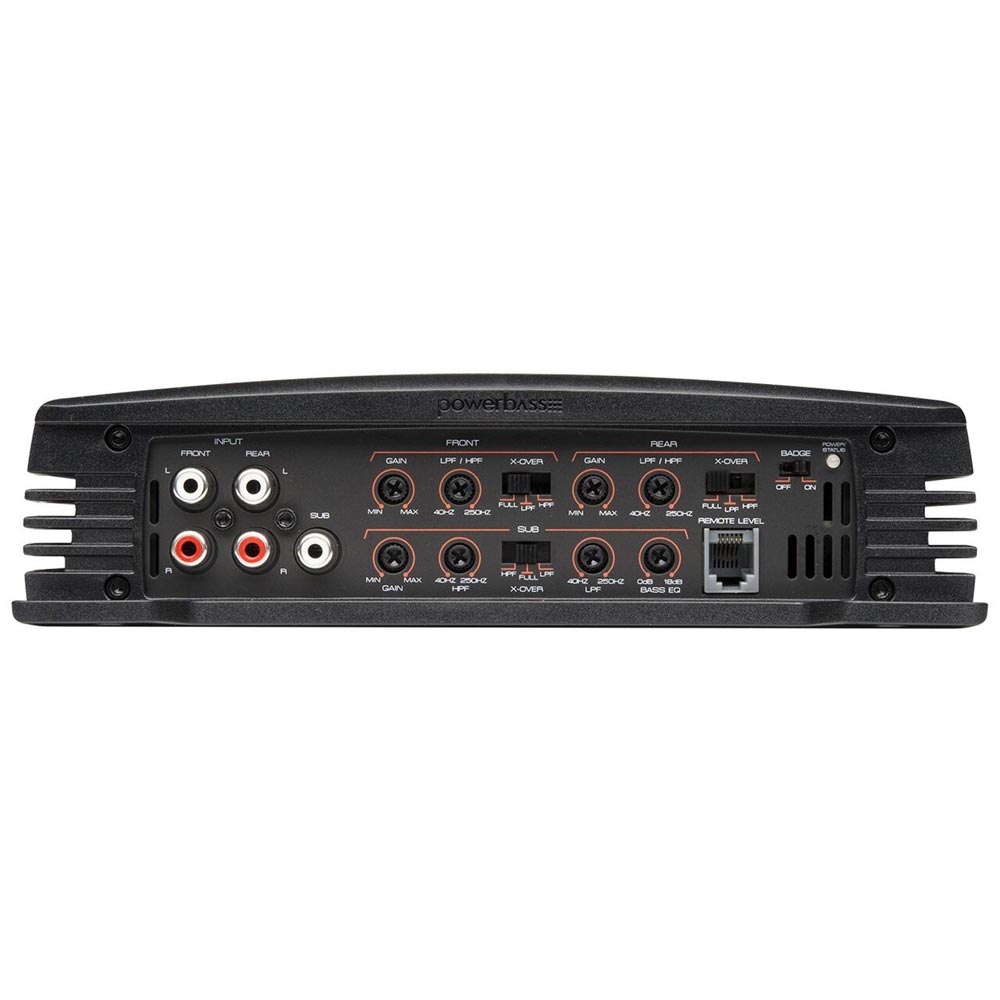

Powerbass ASA3-700.5 5-Channel 800W RMS ASA Series Class AB Amplifier

$329.99

Hurry, there are only 8 item(s) left!
SKU: ASA3-700.5Categories: Amplifiers, Car Audio, Powerbass
Description

  • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
  • Variable Subsonic Freq: N/A
  • Inputs: 3 Pairs of RCA
  • Equalization Boost/Cut: 0 - 18 dB
  • Subwoofer Frequency Range: 20 Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Height: 2.3"
  • Width: 8.3"
  • Depth: 16.8"
  • 4-ohm Mono Power: 200 watts x 2 + 400 x 1 (2-ohm)
  • 4-ohm Power: 50 watts x 4 + 200 x 1
  • 1-ohm Mono Power: N/A
  • 2-ohm Power: 100 watts x 4 + 400 x 1
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 40 Hz - 250 Hz
  • High-Pass Crossover Freq: 40 Hz - 250 Hz
  • Peak Power: 1600 watts
  • Crossover Slope: 12 dB
  • Dimensions (in Inches): 16.8" x 8.3" x 2.3"
  • Input Sensitivity: 0.25 V - 6.0 V
  • S/N Ratio: >94 dB
  • Total Harmonic Distortion: 0.05% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 50 watts x 4 + 200 x 1
  • Output Power (14.4 V) @ 2 ohm: 100 watts x 4 + 400 x 1
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Channels (mono): 5
  • Frequency Response: 20 Hz - 22 kHz
  • 5-Channel 800 Watt High Efficiency Class A/B Design
  • 2-ohm Stable (4-ohm in Bridged Mode)
  • PWM MOSFET Power Supply
  • Low Level RCA Input/Low Level RCA Pass Through Output
  • Remote Soft Delay Turn On/Off Circuit
  • Variable High/Low Pass Electronic Crossover
  • Variable 18dB Bass Boost EQ @ 45 Hz
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
  • Wired Secondary Remote Gain Control (Optional PB-GAIN1)
  • Switchable Logo Back Lighting
