Description

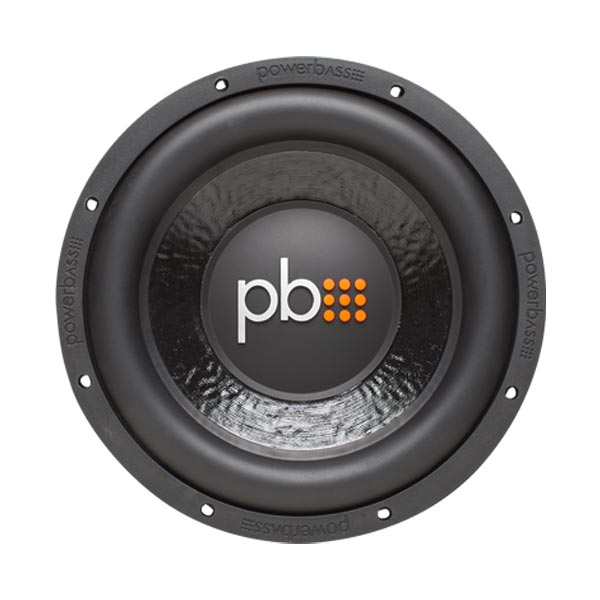

- 10" Single 4-Ohm Subwoofer
- 325 watt RMS/650 Watts Max
- Proprietary DDC Coated Non-Pressed Paper Cone
- Large Roll Santoprene® Surround
- 2" Vented BASV Voice Coil Former
- Perimeter Aero-Vent Voice Coil Cooling Vents
- Non Resonance DDC Coated Stamped Steel Basket
- Rubber Mounting Gasket/Trim Ring
- Chrome Push Terminals
- Optimally Designed for Both Small Sealed or Ported Enclosures
- Nominal Impedance: Single 4-ohm
- BL: 13.1
- Inputs: Single Coil
- Subwoofer Frequency Range: 35 Hz - 500 Hz
- Voice Coil Size: 2 in
- Material: Non Pressed Paper
- Sensitivity (1W / 1M): 91 dB
- Motor Structure: 164 oz
- Cutout Diameter: 9 1/8" (230.1mm)
- Mounting Depth: 5.125 in
- Xmax: 9.0 mm
- Spl: 91 dB
- No: 0.31%
- Qts: 0.383
- Qes: 0.423
- Qms: 4.05
- Mms: 102.2 g
- Cms: 198.6 uM/N
- Vas: 30.75 Ltr
- SD: 330.06 sqCM
- Fs: 35 Hz
- Test Impedance: 3.2-ohms
- VC Impedance: 4-ohm
- Size: 10 in
- Sensitivity: 91 dB
- Frequency Response: 35 Hz - 500 Hz
- Voice Coil Size: 2 in
- Power Handling (RMS/Peak): 325 / 650 watts
