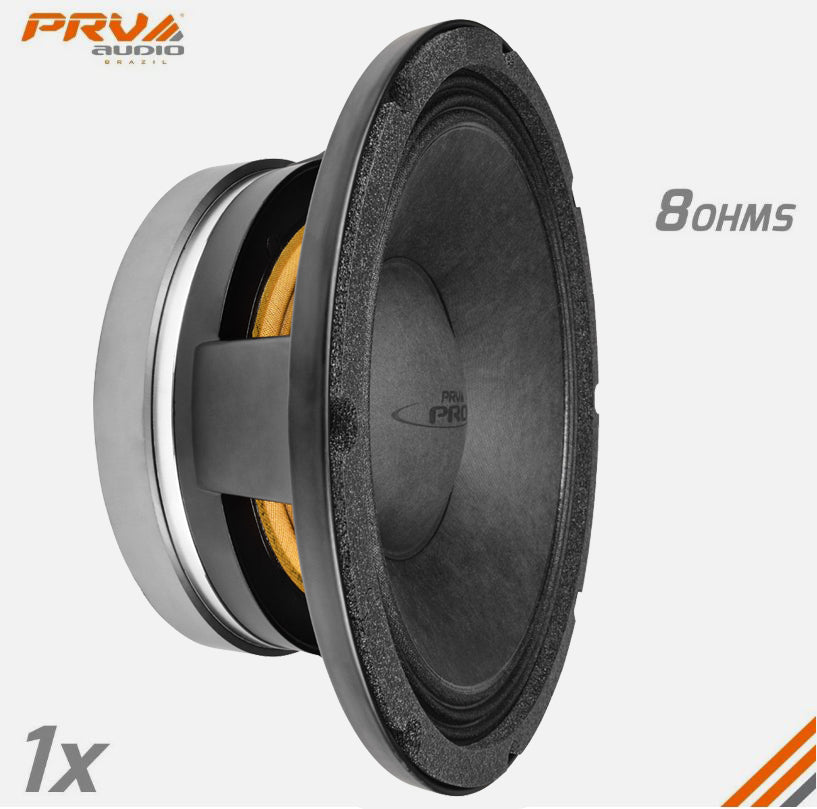

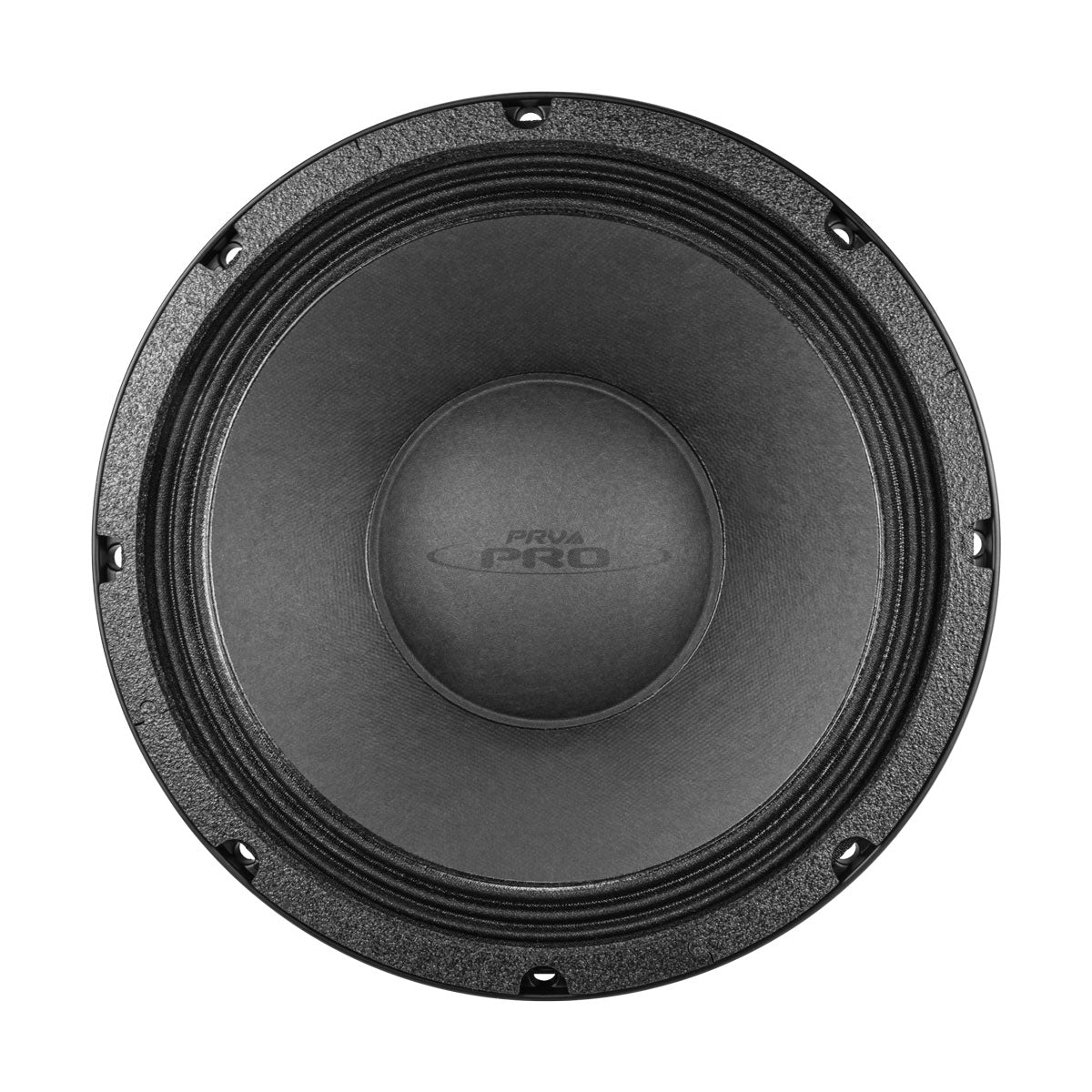

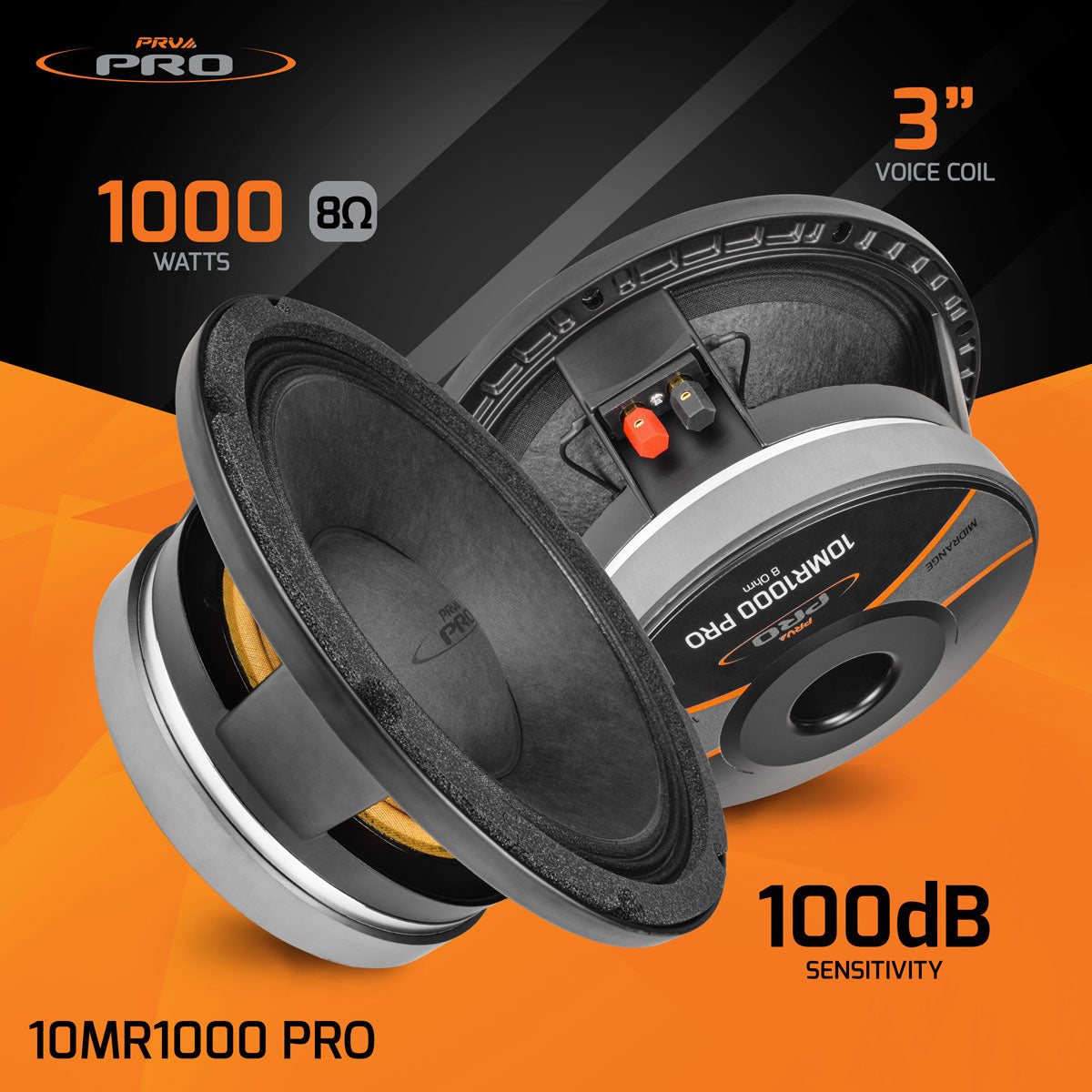

This pro-grade 10″ midrange delivers massive output with 100 dB sensitivity and 1,000 W RMS power handling. Featuring a vented 3″ copper CCAW voice coil, die-cast aluminum basket, and high-excursion design, it’s engineered for SPL systems, pro audio setups, and tight-space installations.
- Nominal impedance: 8 Ω
- Nominal Power Handling: 500 W
- Continuous Program RMS: 1,000 W; Peak Power: 2,000 W
- Sensitivity: 100 dB @ 2.83 V / 1 m
- Frequency Response: 75 Hz – 6,000 Hz
- 3″ CCAW voice coil on glass-fiber former; vented for cooling
- Recommended high-pass crossover: 150 Hz @ 12 dB/octave
- Mounting Depth: 4.31″; Cutout Diameter: 9.13″; Net Weight: ~15.65 lb
