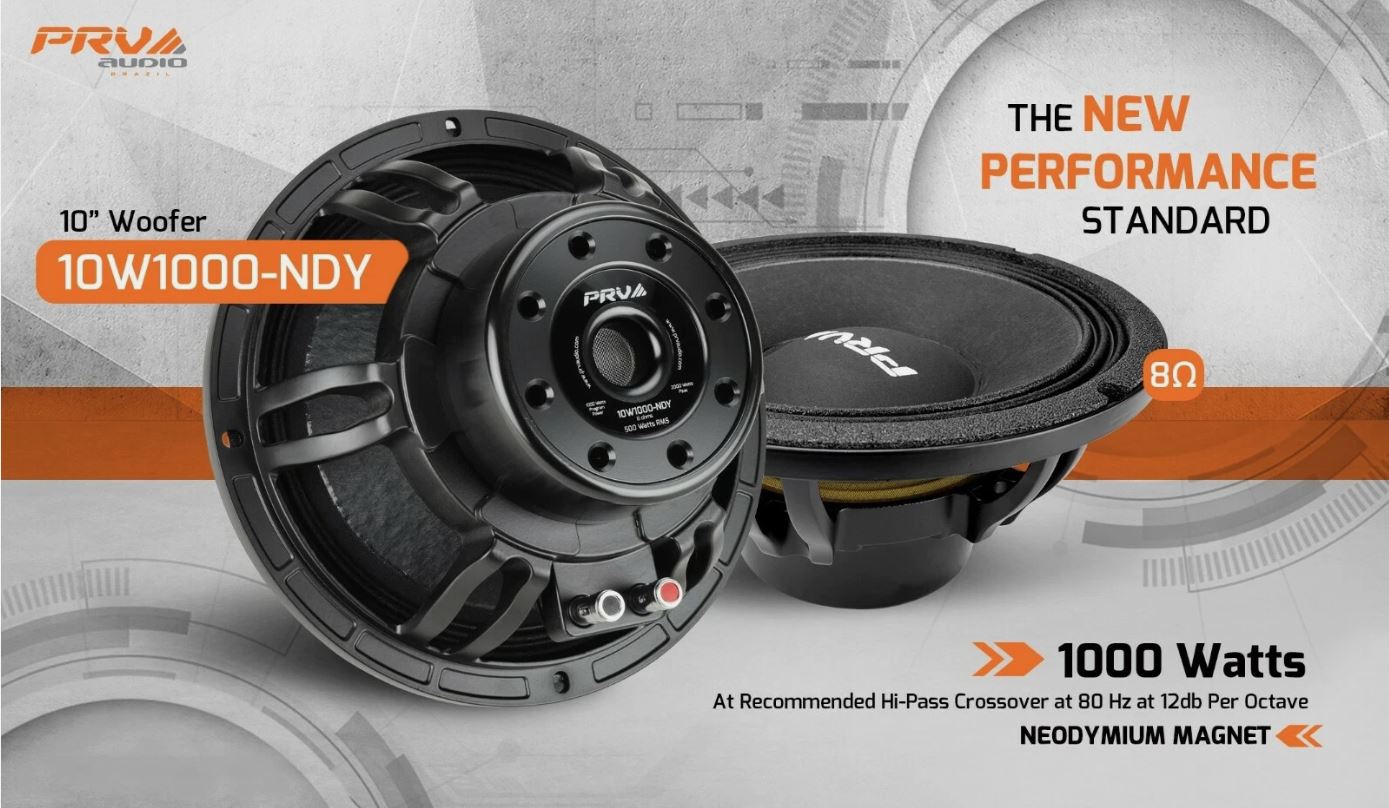

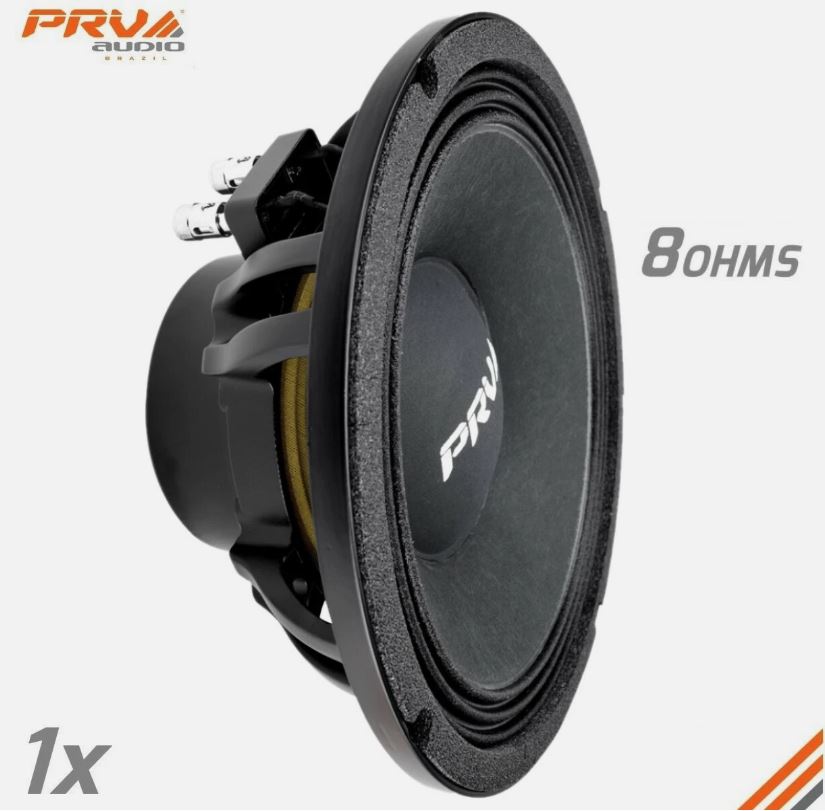

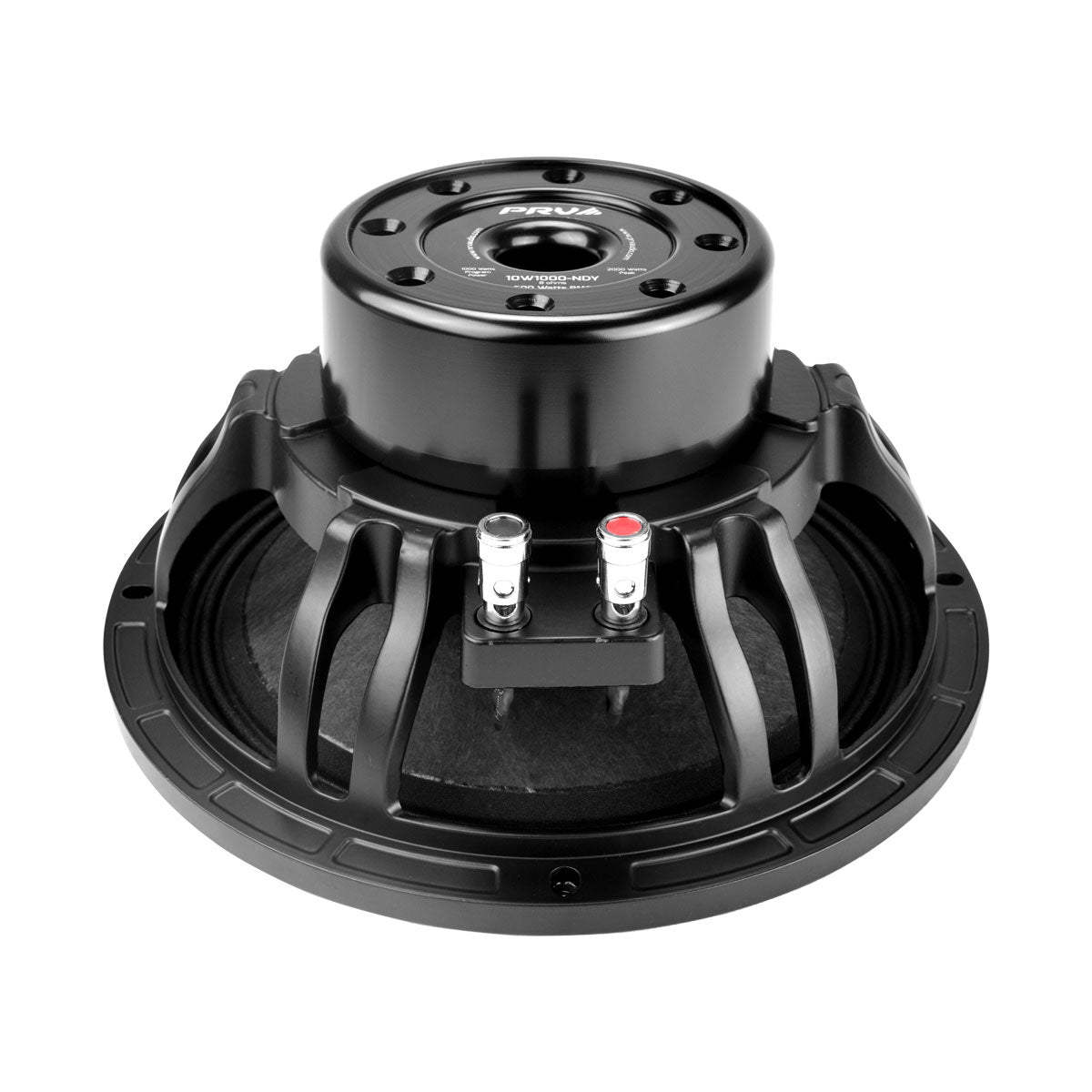

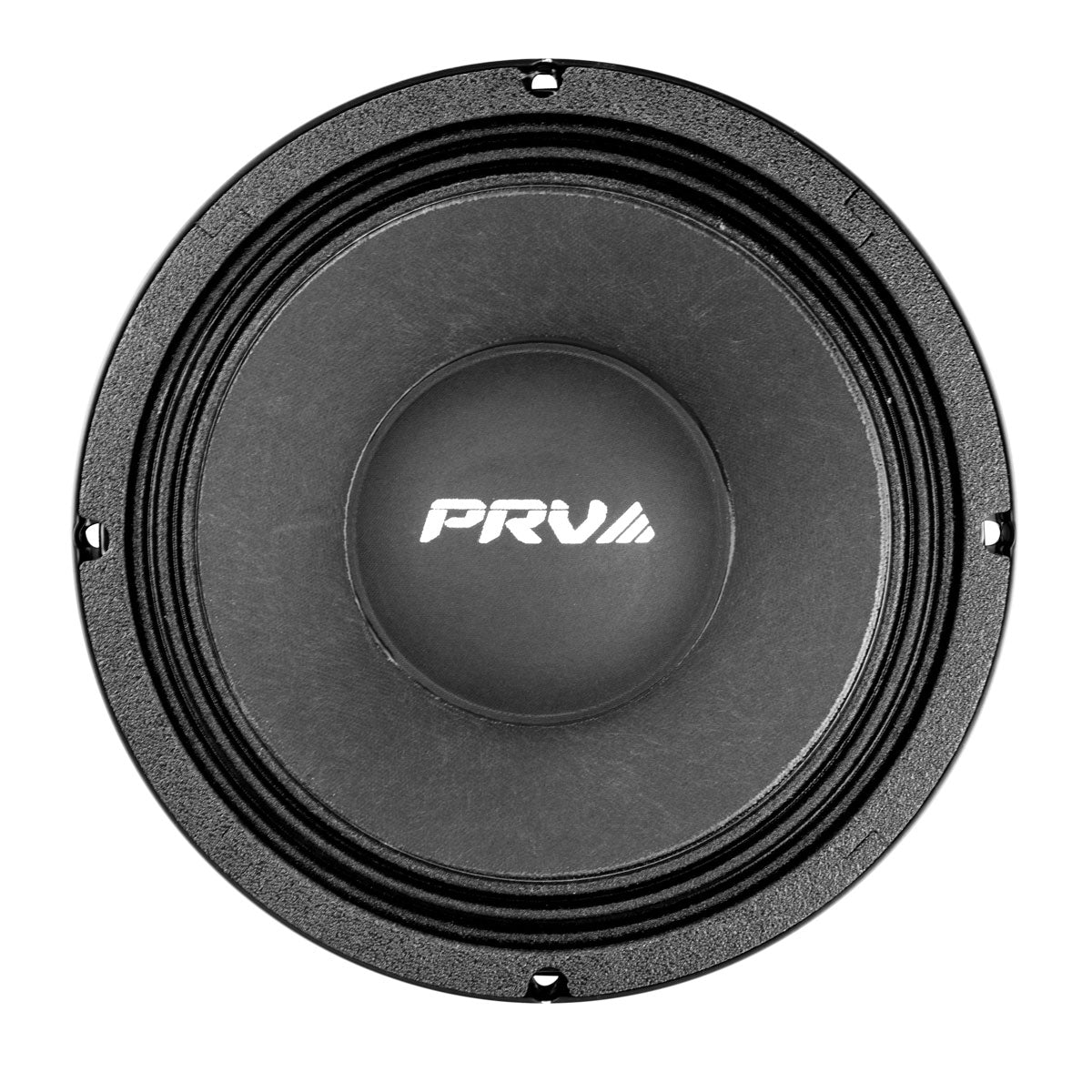

High-output 10″ mid-bass woofer designed for SPL and detailed mid-bass performance. Lightweight yet powerful, it features a 3″ inside/outside CCAW voice coil with deep winding, premium neodymium motor, and smooth composite cone for natural, dynamic sound with strong excursion.
- Nominal impedance: 8 Ω
- Power Handling (RMS): 500 W
- Program Power: 1,000 W
- Sensitivity: 98 dB @ 1 W / 1 m
- Frequency Response: 55 Hz – 5,500 Hz (-10 dB)
- 3″ inside/outside CCAW voice coil on fiberglass former (18 mm winding depth)
- Suggested HPF: 80 Hz @ 12 dB/octave
- 36 mm peak-to-peak excursion capability
- Ventilated neodymium motor for superior cooling
- Die-cast aluminum basket; composite paper cone for smooth response
- Mounting Depth: 4.49″; Cutout Diameter: 9.05″; Net Weight: ~8.38 lb
