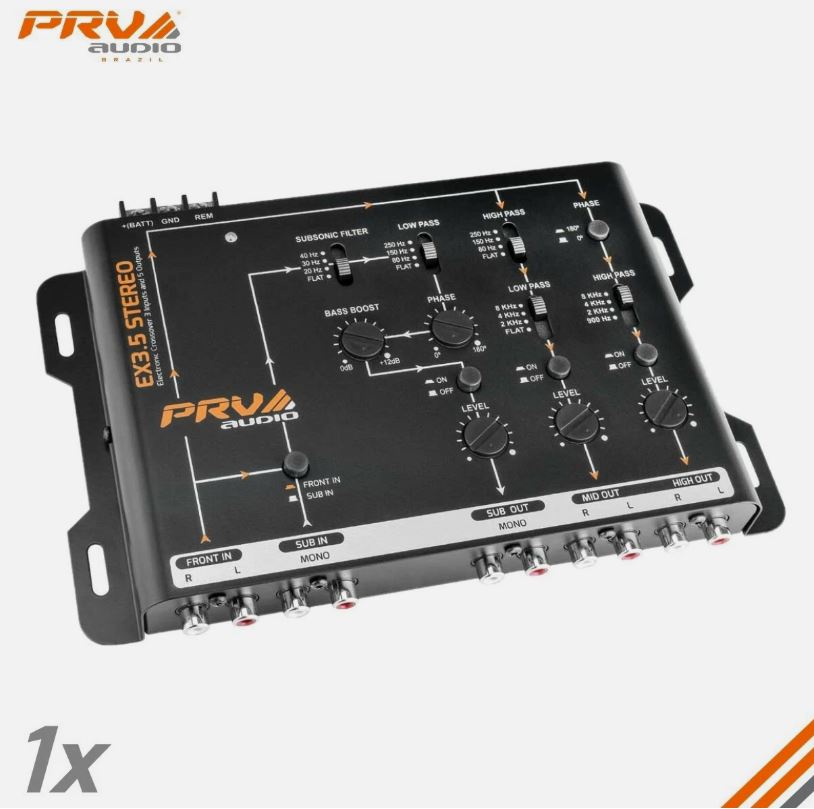

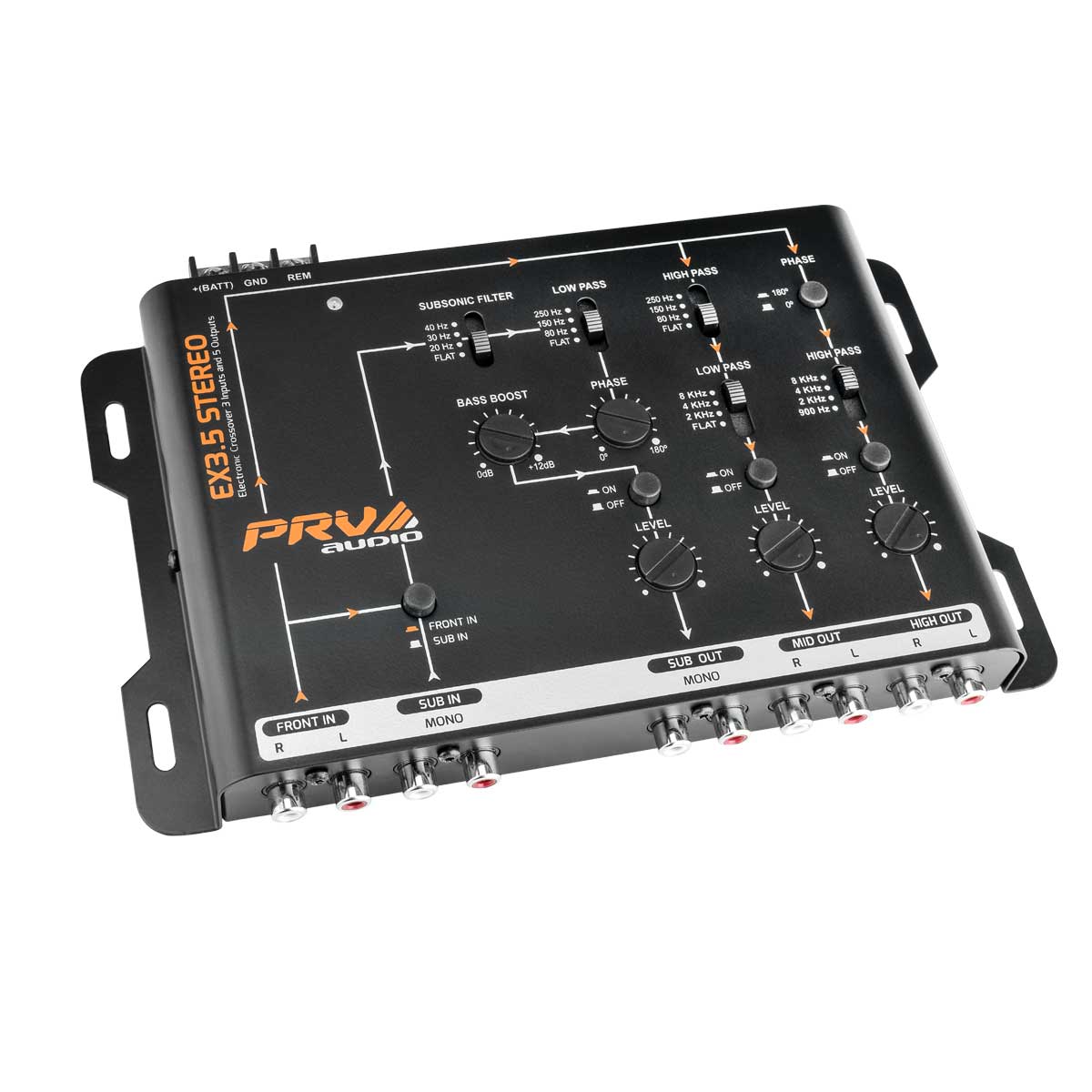

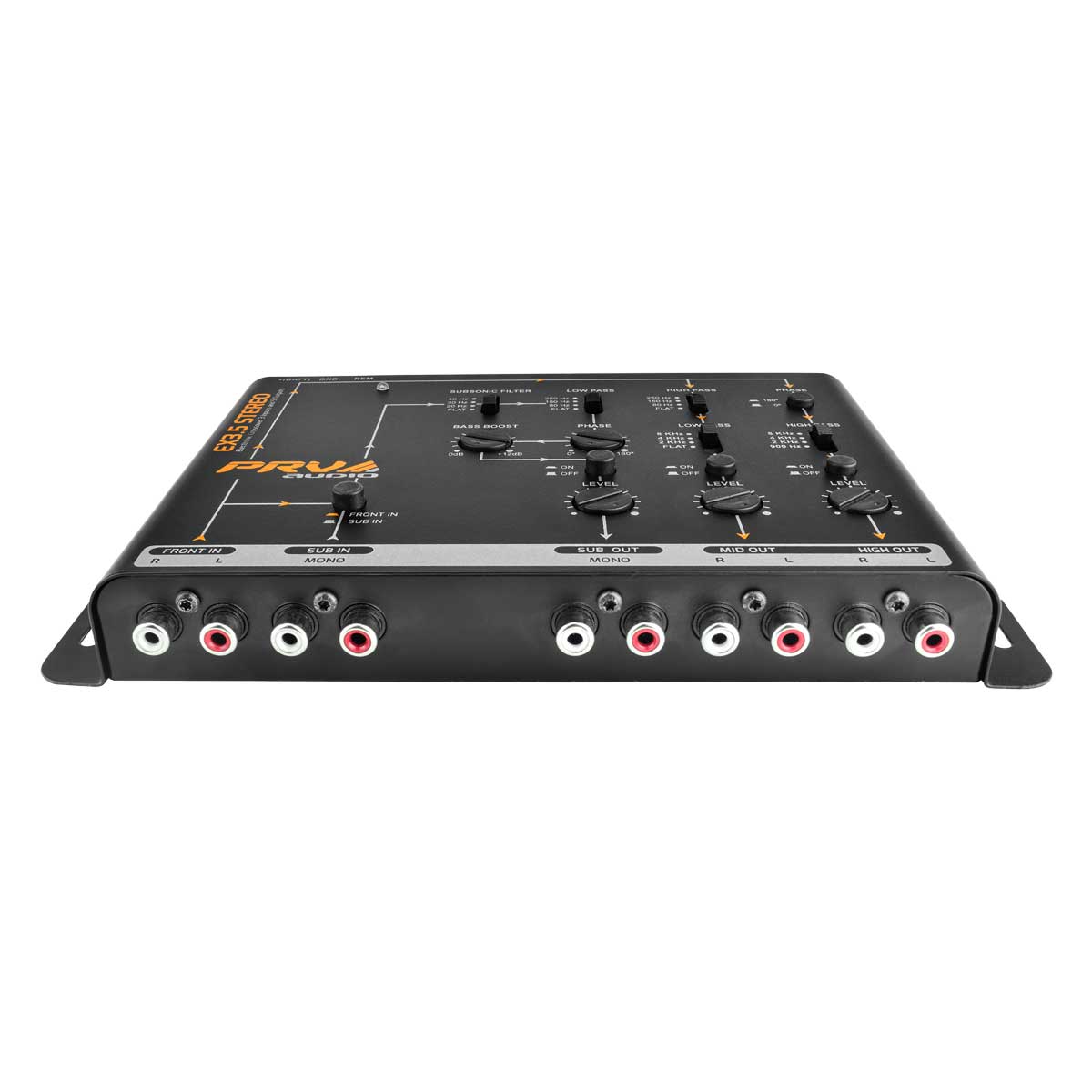

PRV Audio EX3.5 STEREO 2/3-Way Electronic (Active) Crossover w/ 4 Inputs & 6 Outputs, 9V RCA Outputs & Bass Boost
PRV Audio EX3.5 STEREO 2/3-Way Electronic (Active) Crossover w/ 4 Inputs & 6 Outputs, 9V RCA Outputs & Bass Boost
PRV Audio EX3.5 STEREO 2/3-Way Electronic (Active) Crossover w/ 4 Inputs & 6 Outputs, 9V RCA Outputs & Bass Boost
PRV Audio EX3.5 STEREO 2/3-Way Electronic (Active) Crossover w/ 4 Inputs & 6 Outputs, 9V RCA Outputs & Bass Boost
Click to enlargeClick to enlarge

PRV Audio EX3.5 STEREO 2/3-Way Electronic (Active) Crossover w/ 4 Inputs & 6 Outputs, 9V RCA Outputs & Bass Boost

$69.91

Out of stock

SKU: EX3.5 STEREOCategories: PRV Audio
Description
PRV Audio EX3.5 STEREO – 3-Way Electronic Crossover | 2/4 RCA Inputs → 6 RCA Outputs | 9 V RMS Max Output

A versatile 3-way electronic crossover offering adjustable high-pass and low-pass filters on each channel, individual channel level control and on/off switches, plus a dedicated bass-boost for the sub output. Designed for precision tuning in car audio setups via its 2/4 RCA inputs and 6 RCA outputs.

Key Features
  • 2/4 RCA inputs (1 Stereo, 1 Mono) → 6 RCA outputs (High, Mid, Sub)
  • Adjustable High-Pass Filters:
    • High Out: 8000 / 4000 / 2000 / 900 Hz (12 dB/oct)
    • Mid Out: 250 / 150 / 80 Hz / Flat (12 dB/oct)
  • Adjustable Low-Pass Filters:
    • Mid Out: 8000 / 4000 / 2000 Hz / Flat
    • Sub Out: 250 / 150 / 80 Hz / Flat
  • Sub Out: Bass Boost (0 to +12 dB @ 45 Hz), Subsonic Filter (40/30/20 Hz or Flat), Phase Control
  • Per-channel Level Knobs & On/Off Buttons
  • Butterworth 12 dB/oct Crossover Slope
Specifications
  • Max Output Voltage: 9 V RMS
  • Max Input Voltage: 4 V RMS
  • Signal-to-Noise: >90 dB
  • Input Impedance: 10 kΩ
  • Harmonic Distortion: <0.02% THD
  • Channel Separation: >80 dB
  • Frequency Response: 20 Hz – 200 kHz
  • Supply Voltage: 10 – 16 V DC
  • Current Consumption: 200 mA
  • Output Impedance: 470 Ω
  • Dimensions (H × W × D): 1.30″ × 9.25″ × 6.30″
  • Weight: 1.45 lb
