Description

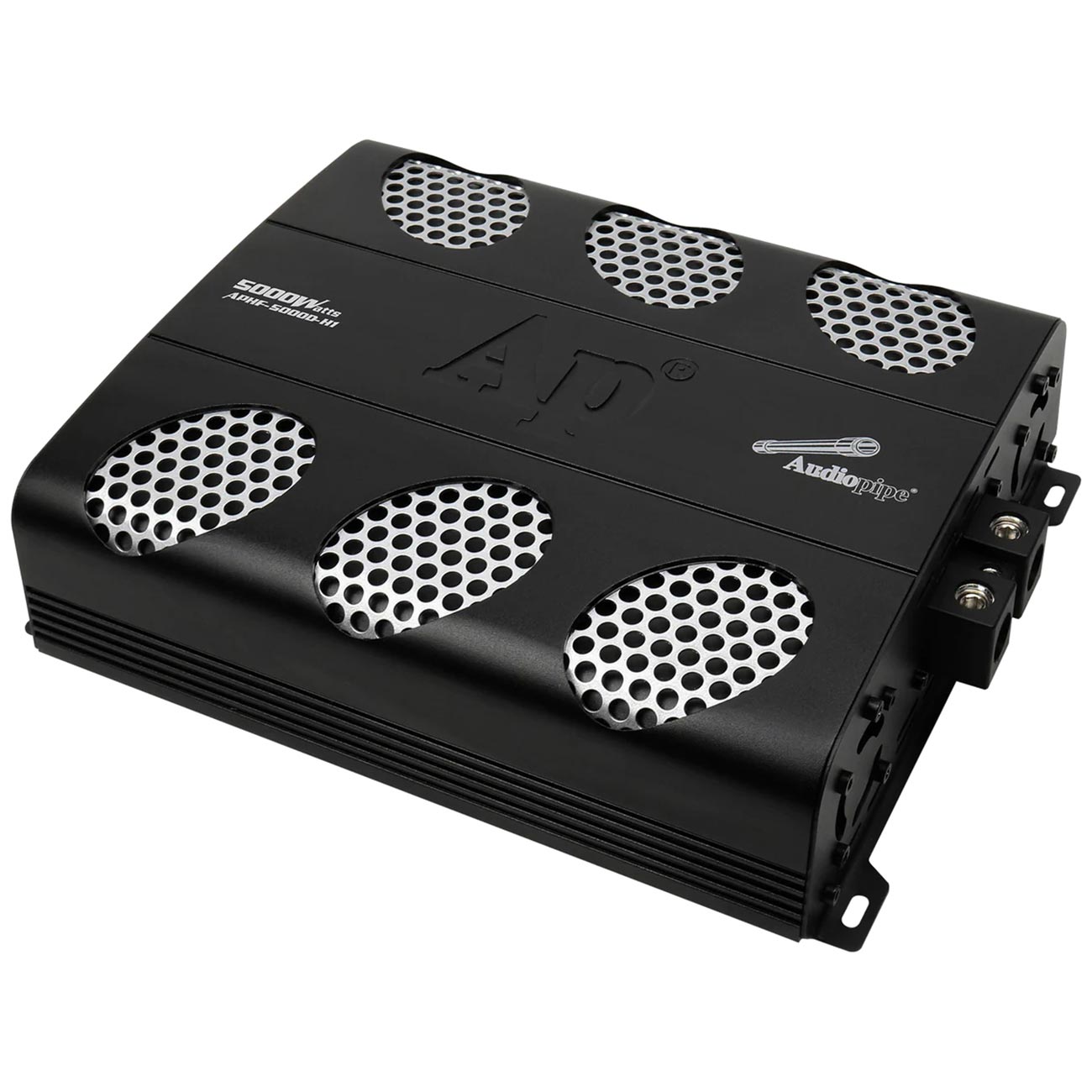

Audiopipe APHF-5000D-H2 High Frequency Mono Block Amplifier – 5000W RMS, 2Ω Stable Full-Range
The Audiopipe APHF-5000D-H2 is a competition-grade, "Brazilian Style" full-range mono block amplifier engineered specifically for systems that require massive power at 2-ohm stability. Utilizing high-efficiency Full Bridge Class D technology, this powerhouse delivers a staggering 5000 Watts RMS from a remarkably compact footprint. Unlike standard mono amplifiers limited to bass frequencies, the APHF-5000D-H2 features a wide 10Hz to 20kHz frequency response, making it the perfect choice for driving enormous arrays of pro-audio midranges and compression drivers or high-performance subwoofer systems. Built with dual internal cooling fans and a robust four-point protection system, it is designed to maintain thermal stability and peak performance under the most demanding competition conditions.
Key Features
The Audiopipe APHF-5000D-H2 is a competition-grade, "Brazilian Style" full-range mono block amplifier engineered specifically for systems that require massive power at 2-ohm stability. Utilizing high-efficiency Full Bridge Class D technology, this powerhouse delivers a staggering 5000 Watts RMS from a remarkably compact footprint. Unlike standard mono amplifiers limited to bass frequencies, the APHF-5000D-H2 features a wide 10Hz to 20kHz frequency response, making it the perfect choice for driving enormous arrays of pro-audio midranges and compression drivers or high-performance subwoofer systems. Built with dual internal cooling fans and a robust four-point protection system, it is designed to maintain thermal stability and peak performance under the most demanding competition conditions.
Key Features
- 2-Ohm Optimized Full-Range Mono Block: Designed for maximum power delivery into 2-ohm loads
-
Power Handling (RMS @ 14.4V):
- 5000W x 1 @ 2Ω
- 2700W x 1 @ 4Ω
- Full Bridge Class D Topology: Maximizes power density and electrical efficiency in a small-footprint heatsink
- Full-Range Capability: Wide 10Hz – 20kHz frequency response for subs, mids, or high-frequency driver arrays
-
Precision Audio Tuning:
- Variable High Pass Filter: 10Hz – 80Hz (12dB/Oct)
- Variable Low Pass Filter: 80Hz – 20kHz (12dB/Oct)
- Adjustable Bass Boost: 0–12dB (Variable 35Hz – 90Hz)
- Advanced Cooling System: Dual internal cooling fans and a heavy-duty aluminum heatsink for superior heat dissipation

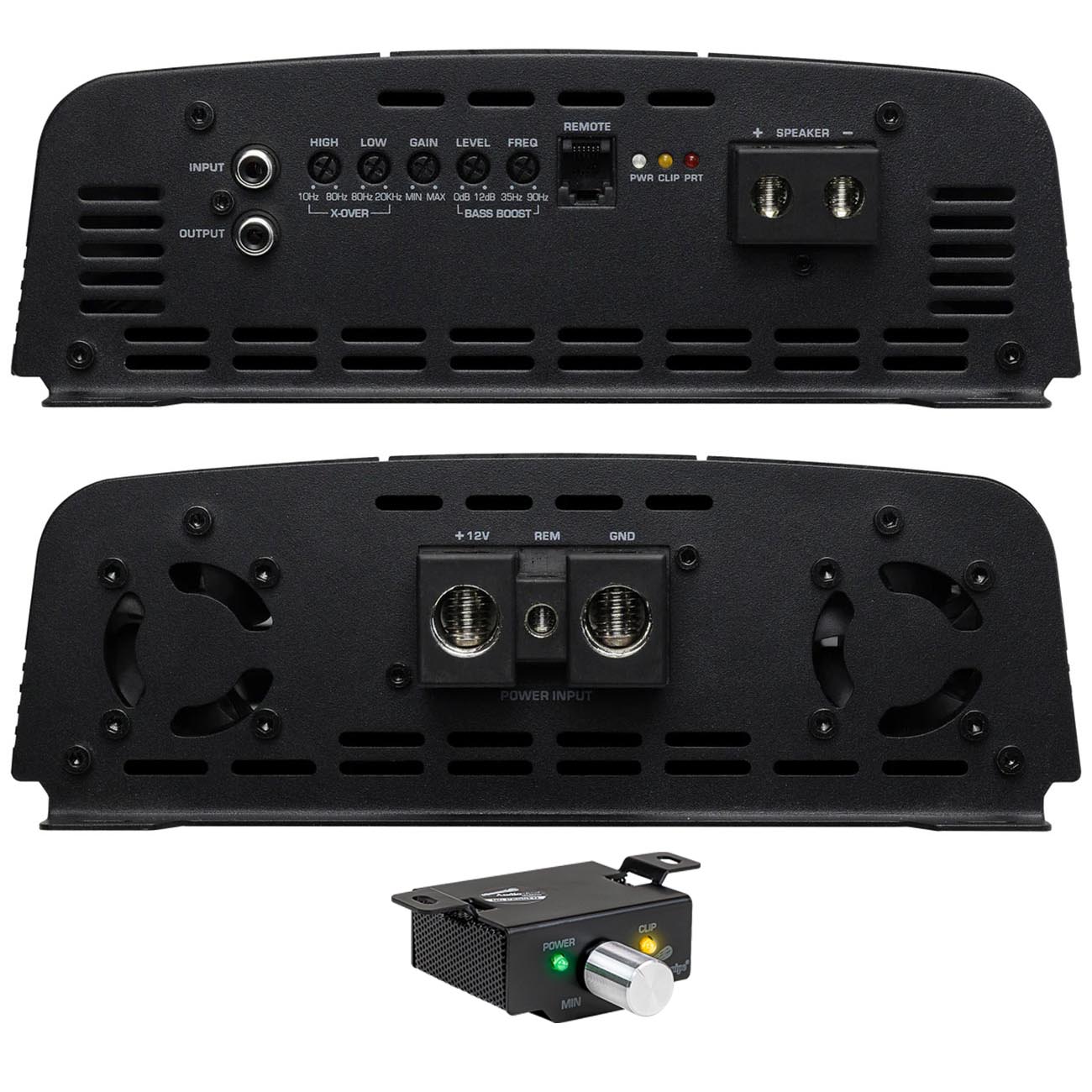

- System Monitoring: Integrated LED indicators for Power, Protection, and Clipping (Distortion)
- Remote Level Control: Includes a remote bass knob with integrated Clip and Power status LEDs
- Robust Connectivity: High-current 0-gauge power and ground terminals
- 4-Point Protection Circuitry: Guards against thermal, short circuit, over-voltage (16V), and under-voltage (9.5V)
- Signal-to-Noise Ratio: ≥82dB
- Dimensions: 10.2" L x 9.0" W x 2.9" H
