Description

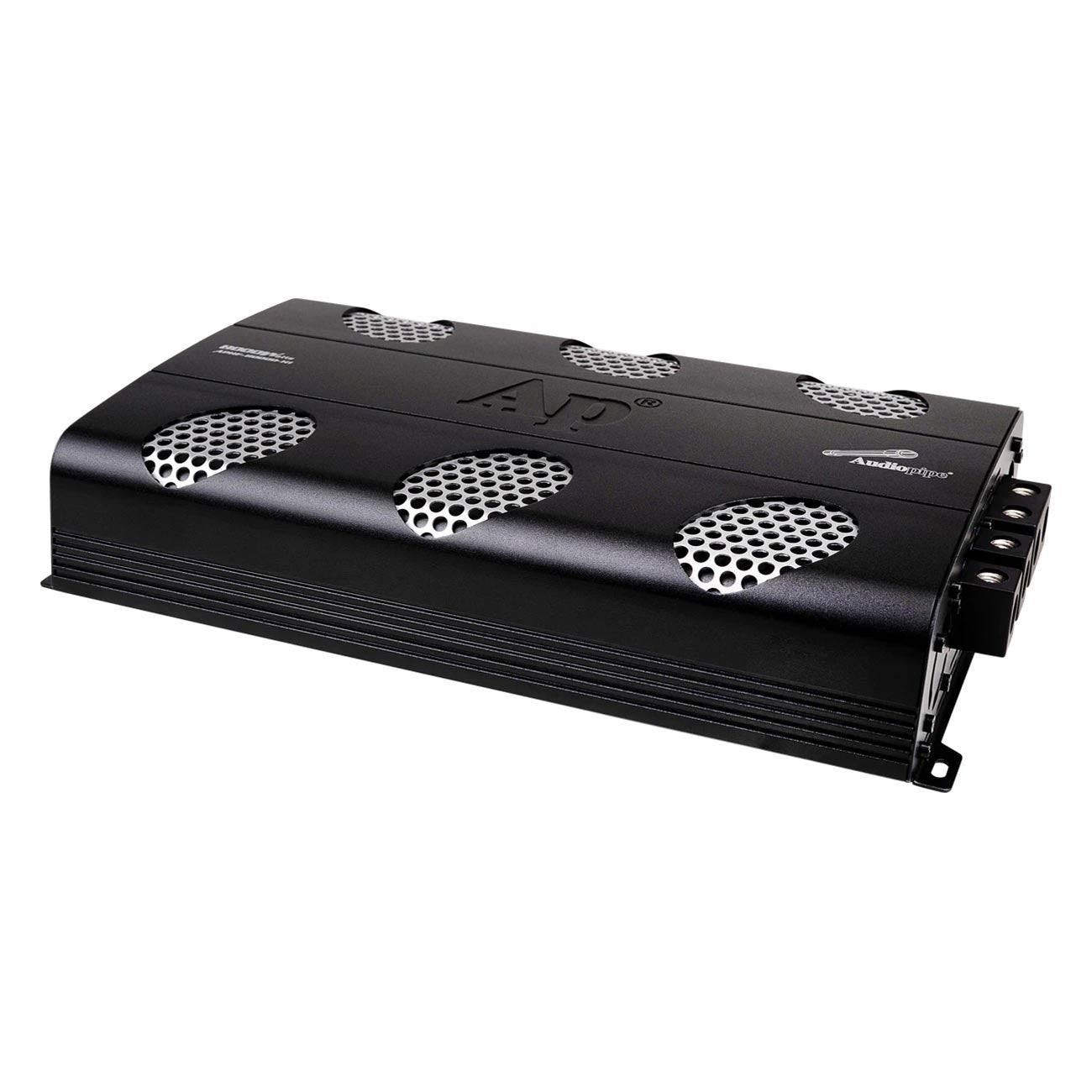

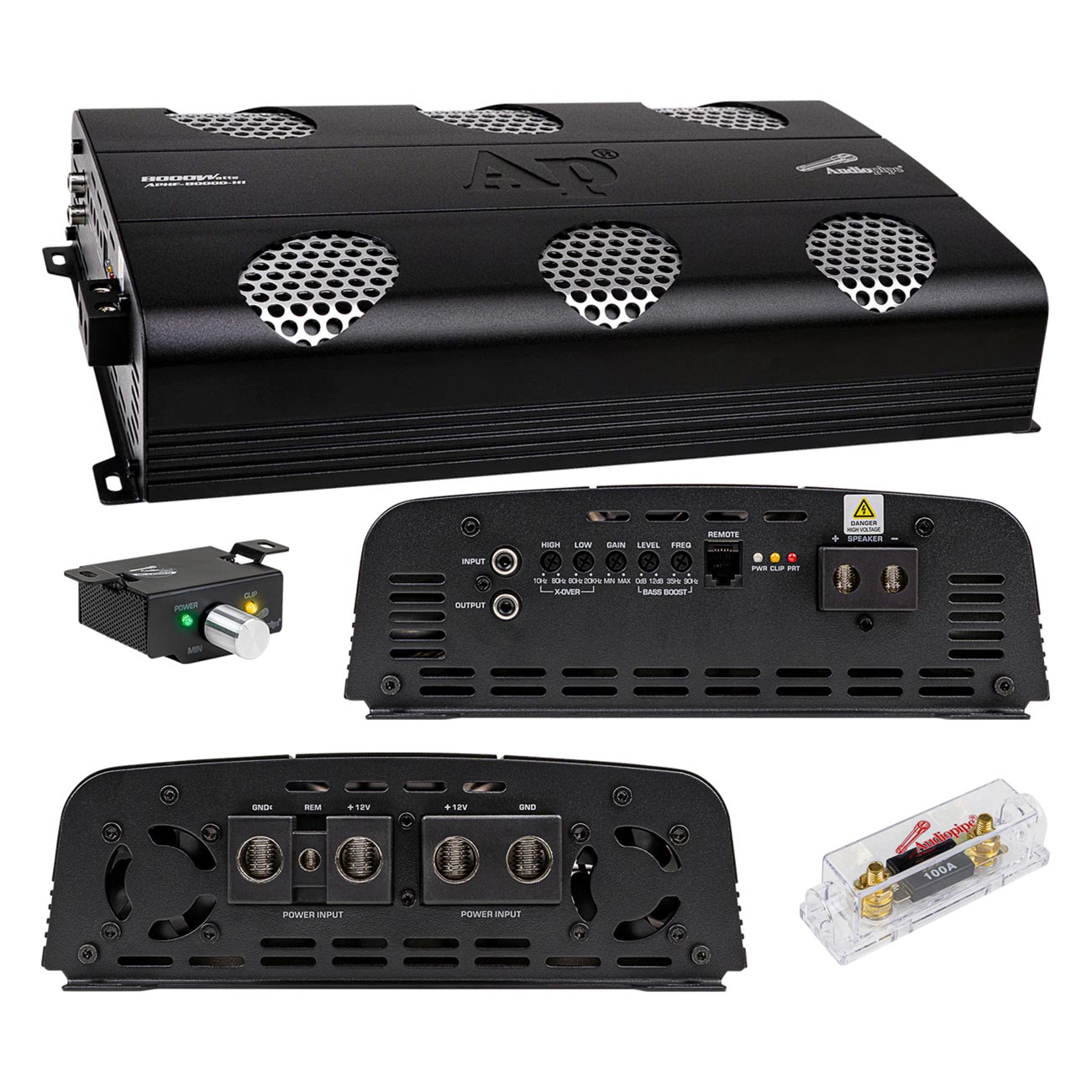

Audiopipe APHF-8000D-H2 High Frequency Mono Block Amplifier – 8000W RMS, 2Ω Stable Full-Range
The Audiopipe APHF-8000D-H2 is an elite, competition-grade "Brazilian Style" mono block amplifier designed for systems requiring extreme power at a 2-ohm stability. Utilizing high-efficiency Full Bridge Class D technology, this massive powerhouse delivers up to 8000 Watts RMS from a space-saving footprint. As part of the High Frequency (H-Series), this amplifier is not limited to subwoofers; its full-range 10Hz to 20kHz frequency response allows it to drive enormous arrays of pro-audio midranges and compression drivers with staggering volume and precision. Built with active fan cooling, a dedicated clipping monitor, and a robust four-point protection system, the APHF-8000D-H2 is engineered to stay cool and reliable during the most demanding high-output sessions.
Key Features
The Audiopipe APHF-8000D-H2 is an elite, competition-grade "Brazilian Style" mono block amplifier designed for systems requiring extreme power at a 2-ohm stability. Utilizing high-efficiency Full Bridge Class D technology, this massive powerhouse delivers up to 8000 Watts RMS from a space-saving footprint. As part of the High Frequency (H-Series), this amplifier is not limited to subwoofers; its full-range 10Hz to 20kHz frequency response allows it to drive enormous arrays of pro-audio midranges and compression drivers with staggering volume and precision. Built with active fan cooling, a dedicated clipping monitor, and a robust four-point protection system, the APHF-8000D-H2 is engineered to stay cool and reliable during the most demanding high-output sessions.
Key Features
- 2-Ohm Optimized Extreme Output: Engineered for maximum power delivery into 2-ohm speaker or subwoofer loads
-
Power Handling (RMS @ 14.4V):
- 8000W x 1 @ 2Ω
- 4000W x 1 @ 4Ω
- Full Bridge Class D Topology: Highly efficient design that utilizes the entire power supply voltage for superior performance
- Full-Range Capability: Wide 10Hz – 20kHz frequency response for subwoofers, mid-ranges, or high-frequency driver arrays
-
Precision Audio Tuning:
- Variable High Pass Filter: 10Hz – 80Hz (12dB/Oct)
- Variable Low Pass Filter: 80Hz – 20kHz (12dB/Oct)
- Adjustable Bass Boost: 0–12dB (Variable 35Hz – 90Hz)
- Advanced Thermal Management: Features active fan cooling and a heavy-duty aluminum heatsink for peak heat dissipation
- System Monitoring: Integrated LED indicators for Power, Protection, and Clipping (Distortion)

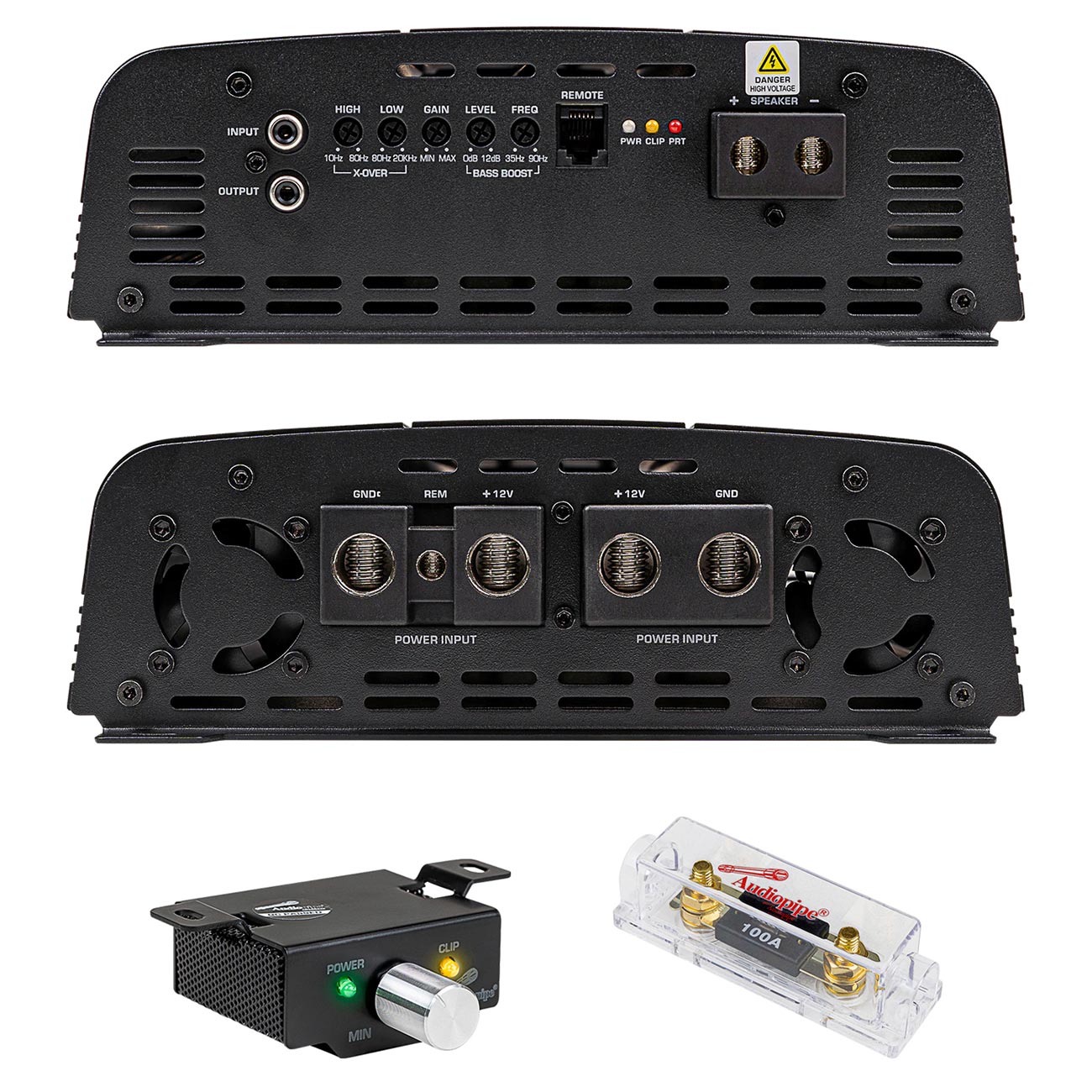

- Remote Level Control: Includes a remote bass knob with integrated Clip and Power status LEDs for dashboard monitoring
- Heavy-Duty Connectivity: High-current 0-gauge power/ground inputs and 4-gauge speaker terminals
- 4-Point Protection Circuitry: Guards against thermal, short circuit, over-voltage (16V), and under-voltage (9V)
- Signal-to-Noise Ratio: ≥85dB
- Dimensions: 13.7" L x 9.0" W x 2.9" H
